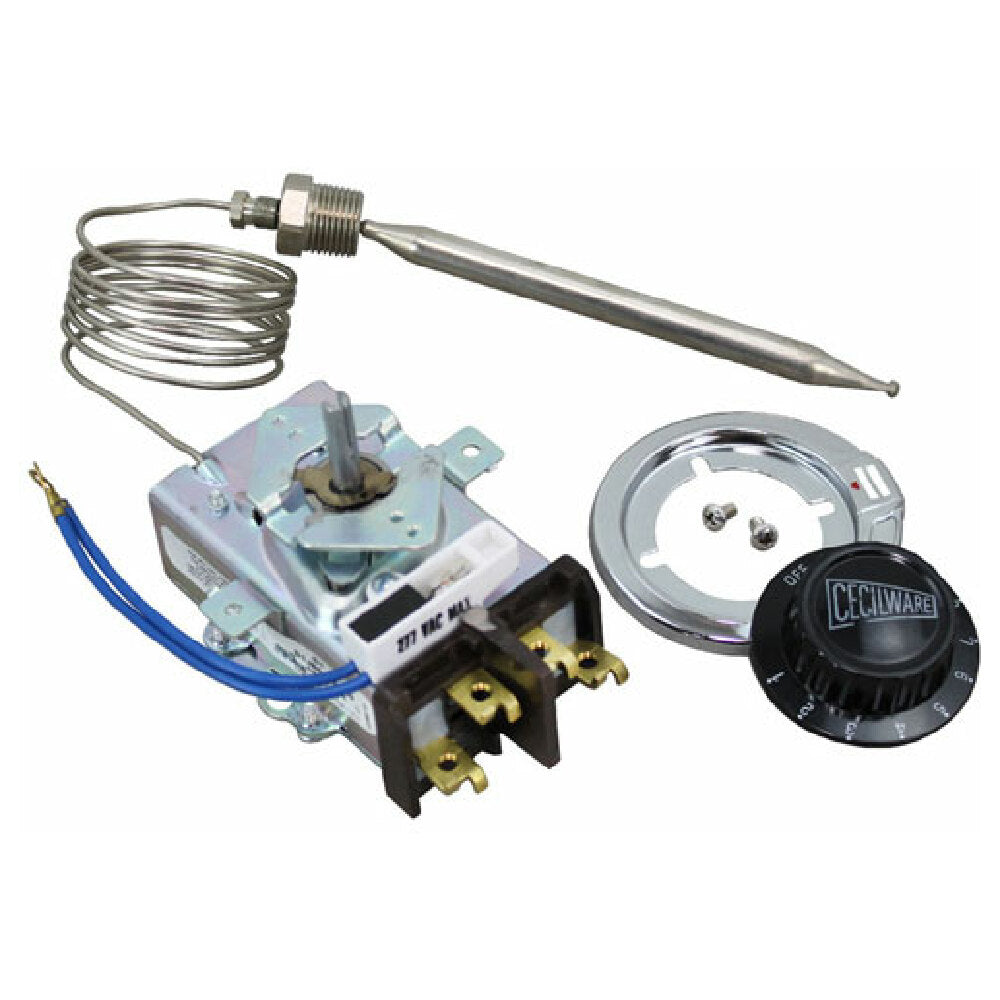

The AllPoints 42505 Thermostat W/dial D1/d18 3/8 X 4 1/2 60 is a high-precision commercial thermostat designed for industrial HVAC and refrigeration applications. This unit features a D1/d18 style bulb with dimensions of 3/8" diameter and 4-1/2" length, coupled with a 48" capillary tube, ensuring accurate temperature regulation within a 100-250°F range. Equipped with front-mounted ears for straightforward installation, it incorporates a light dial bezel and multiple calibration dials for precise control—specifically, models #22-1465 (Off-10-1) and #22-1003 (Off-250-60 Heavy Duty). Constructed with durable materials suited for high-current environments, this thermostat supports resistive loads up to 10 amps at 480V single-pole and 21 amps at 480V two-pole, making it suitable for commercial HVAC and refrigeration systems requiring reliable high-current switching. Its design facilitates straightforward maintenance and accurate temperature management in demanding operational settings.
Top AllPoints 42505 Features
The AllPoints 42505 thermostat offers extensive features tailored for commercial HVAC and refrigeration workflows. Its high-current capacity supports demanding applications with precise temperature control within a 100-250°F range. The durable construction with robust mounting provisions ensures long-lasting reliability, while the included light dial bezel facilitates visibility in operational environments. The calibration dials allow fine adjustments to meet specific control requirements, ideal for integration in commercial kitchen and storage refrigeration units. Easy-to-access front mounting ears simplify installation and maintenance in confined spaces, making it suitable for high-demand industrial settings.
- High-current switching: Supports 10A at 480V single-pole and 21A at 480V two-pole loads
- Durable construction: Made with high-grade materials for consistent performance
- Easy calibration: Features multiple dial options for precise temperature setting
- Quick front mounting: Front ears allow streamlined installation in tight spaces
- Versatile wiring: Equipped with 3/8" Mpt stuff box for straightforward electrical connections
Designed for control of commercial HVAC or refrigeration equipment requiring reliable high-current switching and precise temperature regulation.
AllPoints 42505 Technical Specs
The AllPoints 42505 thermostat operates within a voltage range suitable for commercial electrical environments, supporting resistive loads up to 10 amps at 480V single-pole and 21 amps at 480V two-pole configurations. Its temperature sensing bulb measures 3/8" in diameter and 4-1/2" in length, with a capillary extension cap of 48" for versatile installation. The device is constructed from durable materials suitable for high-demand industrial settings, with an operating temperature range of 100 to 250°F, ensuring consistent performance across a broad thermal span. Weighing approximately 1.3 lbs, it features front-mounted mount ears for simplified installation and maintenance. Its robust design includes a light dial bezel for visibility and calibration dials (#22-1465 and #22-1003) for precise adjustments, making it a reliable component in electric control systems for HVAC and refrigeration applications. Its material and construction support easy cleaning and integration into existing commercial systems, including wiring with a 3/8" Mpt stuff box, with safe operation within specified temperature and voltage tolerances.
- Electrical Requirements: 100-250°F operating range, 10A 480V single-pole
- Construction & Finish: Rugged materials with front mount ears for durability
- Dimensions: Bulb 3/8" x 4-1/2", Capillary 48"
- Wiring Compatibility: 3/8" Mpt stuff box for straightforward electrical connections
- Temperature Resistance: Operates reliably within 100-250°F range
Usage scenarios include installation in HVAC control panels, refrigeration systems, and industrial climate control units requiring precise temperature switches, with clearances for front-mounted components facilitating regular maintenance.
What is a commercial thermostat?
A commercial thermostat is a device used in industrial HVAC and refrigeration systems for precise heat or cooling control. The AllPoints 42505 thermostat is a professional-grade control component designed to manage high-current loads with accurate temperature sensing within a 100-250°F range. Installed in commercial refrigeration units, HVAC control panels, or process equipment, it offers dependable performance with easy calibration and durable construction. Ideal for industrial settings, this thermostat ensures stable temperature regulation in demanding environments, supporting high-resistive load switching and reliable operation in broad temperature ranges.
Top commercial thermostats for HVAC and refrigeration control
Built with robust materials and high-current capacity, the AllPoints 42505 is suited for industrial HVAC and refrigeration systems, supporting moderate workloads in commercial environments. Its precise control and easy installation in control panels make it ideal for temperature regulation in commercial kitchens, storage, and process facilities. This model supports reliable operation in medium-volume applications with a focus on control accuracy and durability, ensuring long-term performance in demanding foodservice equipment settings.
- Operation Type — moderate-demand HVAC and refrigeration systems
- Kitchen Setting — commercial kitchen refrigeration or storagerooms
- Foodservice Category — industrial cooling and climate control
- Workload Qualifier — medium throughput with high reliability
- Use Case — precise temperature management in commercial refrigeration units
Why Choose AllPoints 42505?
The AllPoints 42505 thermostat distinguishes itself through its durable construction with high-grade materials and versatile calibration options, providing reliable high-current switching tailored to demanding industrial environments. Its easy front-mounted installation and robust design support hassle-free maintenance and long-term operation. Compared to standard models, it offers enhanced wiring flexibility, precise temperature control, and a broad operating temperature range that improve overall system performance and reliability in commercial HVAC and refrigeration applications.
- Compact footprint supports installation in confined control panels
- High-current capacity for industrial HVAC and refrigeration loads
- Includes calibration dials for exact temperature adjustments
- Rugged construction ensures durability in demanding environments
- Features quick-install front mount ears for streamlined service
