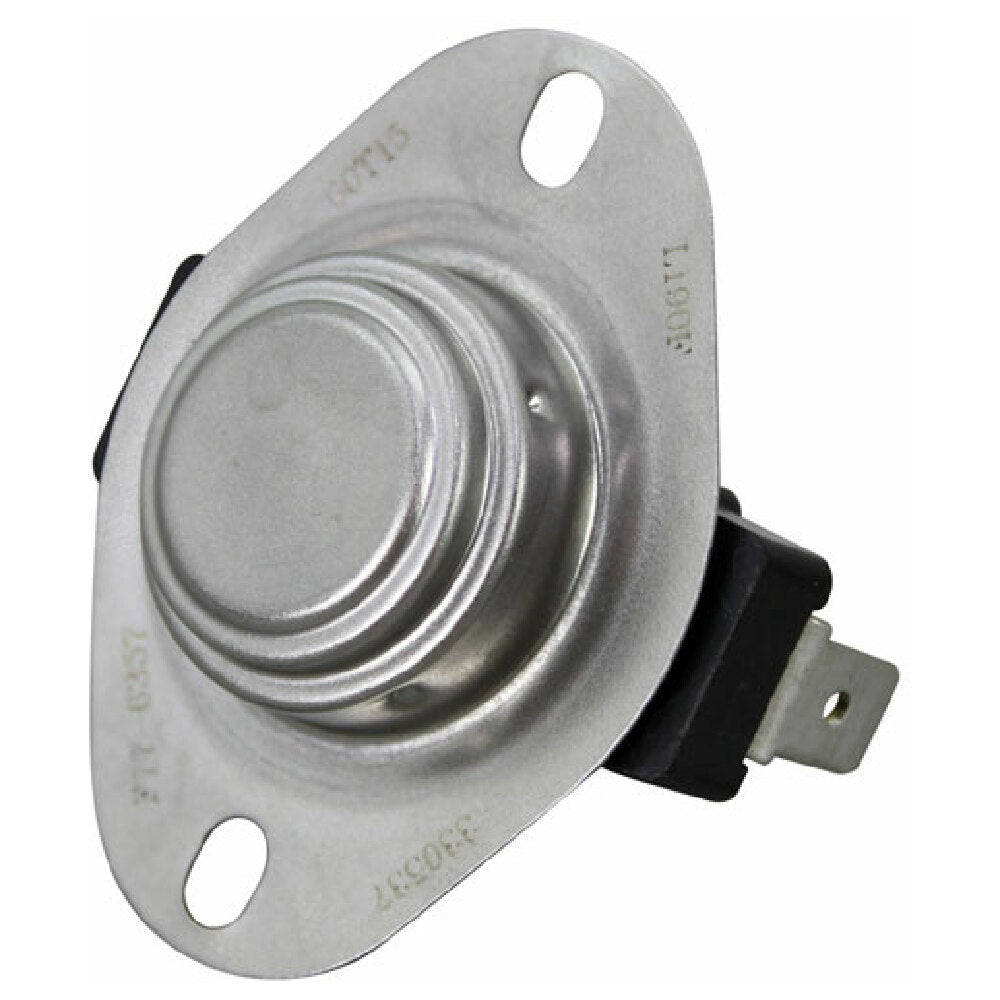

The White Rodgers 3L02-190 Limit Switch is a precision thermal safety device designed for commercial heating and appliance systems. As a product of AllPoints, this limit switch features a disc-type activation element with a manual reset button, ensuring reliable over-temperature protection in various industrial and foodservice equipment. With a temperature rating of 190°F and a compact construction, it integrates seamlessly into commercial kitchen appliances such as toasters, fryers, and industrial ovens for precise temperature control and safety monitoring. This limit switch’s robust design and electrical specifications make it suitable for safeguarding high-temperature operations, thereby preventing equipment damage and ensuring consistent performance.
Top AllPoints 3L02-190 Features
The White Rodgers 3L02-190 limit switch is engineered for commercial foodservice environments requiring precise thermal control. Its disc-type sensing element offers quick response to temperature deviations, while the manual reset button provides straightforward reset after activation. The device’s durable construction with stamped tabs and mounting holes facilitates easy installation in tight spaces and ensures reliable operation in high-temperature settings. Ideal for integration into conveyor ovens, commercial toasters, and heat exchangers, it enhances workflow safety and minimizes downtime.
- Temperature-sensitive disc: Offers rapid overheat response for safety.
- Sturdy stamped metal tabs: Ensures reliable electrical connections under demanding conditions.
- Manual reset feature: Facilitates easy reactivation after trip, reducing maintenance time.
- Compact mounting design: Fits into 1-5/8" mounting holes with 2 Mt holes spacing.
- Constructed from durable materials: Provides longevity in high-temperature industrial environments.
Suitable for high-temperature safety circuits in commercial appliances requiring reliable thermal cutoff.
White Rodgers 3L02-190 Technical Specs
The White Rodgers 3L02-190 limit switch operates at a standard voltage compatible with typical commercial equipment, with an electrical connection via 1/4" tabs. Its metal construction incorporates stamped mounting tabs and two mounting holes spaced 1-5/8" apart for stable installation. The disc sensing element measures .928" in diameter and is rated for operation up to 190°F. The device weighs approximately 0.1 lbs and is manufactured in the United States, ensuring high-quality standards. Its design features include a resilient metal housing, with a height of 1.25" and width of 2.5" for versatile application in various appliance housings. It is non-hazardous and suitable for continuous operation within its temperature rating, with easy maintenance and replacement options.
- Electrical Requirements: Compatible with standard 1/4" tab wiring; designed for commercial current loads.
- Mounting & Installation: 1-5/8" center-to-center mounting holes for easy integration.
- Construction: Durable stamped metal with high-resistance to wear and heat.
- Operating Range: Rated for activation at 190°F with reliable reset capabilities.
- Dimensions & Weight: 2.5" W x 2" D x 1.25" H; weighs approximately 0.1 lbs.
What is a commercial limit switch
A commercial limit switch is a safety device that detects over-temperature conditions within industrial or foodservice equipment. It functions as a critical component in thermal control systems, automatically shutting off power when preset temperature thresholds are exceeded. Installed in appliances such as fryers, ovens, and conveyor systems, the White Rodgers 3L02-190 limit switch ensures operational safety and prevents equipment damage by providing precise thermal sensing and manual reset capabilities for reliable, continuous use in demanding commercial environments.
Top thermal control switches for commercial foodservice operations
These high-quality limit switches offer robust construction, precise thermal sensing, and easy integration into commercial kitchen equipment designed for moderate workloads. Suitable for various foodservice settings, they provide reliable over-temperature protection to maintain safety and operational efficiency. White Rodgers 3L02-190 is ideal for medium-volume applications involving thermal regulation in commercial ovens, fryers, and heat exchangers.
- Operation Type — for commercial appliance safety
- Kitchen Setting — suitable for compact, busy commercial kitchens
- Foodservice Category — designed for industrial temperature regulation
- Workload Qualifier — appropriate for moderate operational throughput
- Use Case — critical safety device in high-temperature equipment
Why Choose AllPoints 3L02-190 Limit Switch
AllPoints 3L02-190 stands out among commercial limit switches with its superior durability, compact design, and reliable safety features. Engineered for long-lasting performance in high-temperature settings, it simplifies installation with standard mounting and connection options. Its manual reset function reduces maintenance downtime, while its robust construction ensures dependable operation in demanding industrial environments, enhancing overall system safety and efficiency.
- Compact footprint fits in tight appliance enclosures
- Heavy-duty stamped metal tabs for secure electrical connections
- Manual reset offers quick reinstatement after activation
- Designed for consistent performance up to 190°F
- Manufactured in the United States for quality assurance
