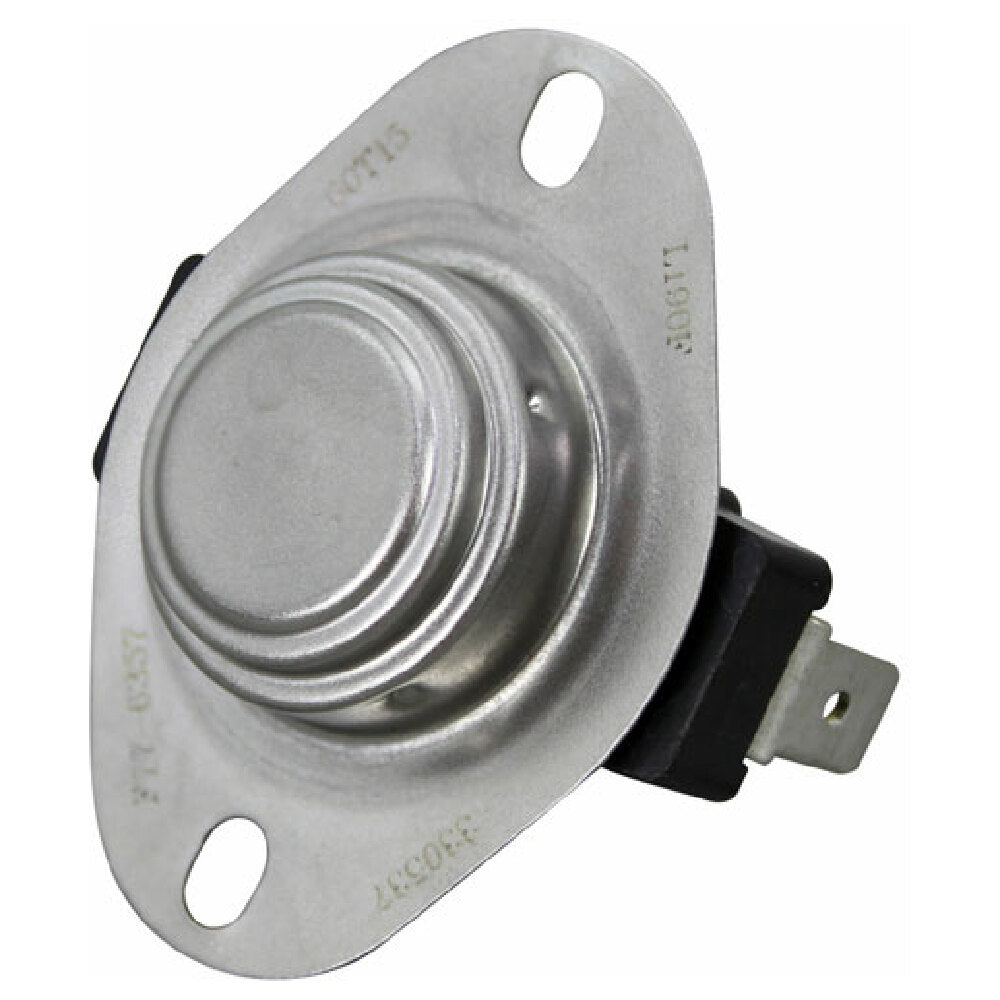

The Star Mfg 2E-Z4497 Limit Switch is a precision industrial limit switch designed for high-reliability applications within commercial food processing and equipment systems. Manufactured by Star Mfg, this model features a disc-type configuration with a manual reset button on the rear, supporting 190°F temperature resistance. It includes two 1/4" terminal tabs, two mounting holes with 1-5/8" center-to-center spacing, and a disc diameter of 0.928". The switch offers flexibility with old and new styles, with tabs that can be bent for 180° operation. Its robust construction ensures consistent operation in demanding environments, making it suitable for equipment monitoring in industrial foodservice settings requiring precise thermal or position control.
Top AllPoints 2E-Z4497 Features
The AllPoints 2E-Z4497 limit switch excels in commercial food equipment applications, providing reliable thermal and position sensing for machinery. Its disc-type design offers durable operation at high temperatures, with easy manual reset capabilities. The unit’s mounting holes and tab arrangements support straightforward integration into existing systems, simplifying maintenance and ensuring accurate cycle control in commercial kitchens or beverage equipment. Its rugged construction endures frequent actuation cycles, optimizing workflow efficiency in foodservice environments requiring precise automation control.
- Functionality: Precise thermal and position sensing with manual reset
- Durability Traits: Built with high-grade materials for long-term resilience
- Ease of Maintenance: Accessible rear reset button and simple wiring tabs
- Application Fit: Compatible with industrial toaster, conveyor, or processing equipment
- Workflow Benefit: Enhances automation reliability and reduces downtime
Ideal for integrating into commercial food processing lines or heating systems requiring reliable limit switching.
AllPoints 2E-Z4497 Technical Specs
The 2E-Z4497 switch features a 190°F temperature rating with a disc diameter of 0.928" and overall dimensions of 2.5" width, 2" depth, and 1.25" height. It is constructed with durable materials suited for high-temperature environments, with a weight of just 0.1 lbs for easy installation. Designed for heavy-duty operation, it incorporates two mounting holes spaced 1-5/8" apart, supporting straightforward integration into complex machinery. The switch operates via manual reset and is adaptable for various industry-standard mounting configurations, supporting seamless incorporation into commercial kitchen equipment and industrial automation systems. It does not contain hazardous materials and is made in the United States, ensuring quality and reliability for demanding foodservice machinery.
- Electrical requirements: Not specified in provided data
- Construction & finish: Durable metal with corrosion-resistant features
- Dimensions: 2.5" W x 2" D x 1.25" H
- Temperature resistance: Up to 190°F
- Material safety: Compliant with industry standards for safety and durability
- Mounting: Two mounting holes with 1-5/8" centers
- Connection tabs: Two 1/4" quick-connect terminals
- Electrical compatibility: Installation near high-temperature heating elements
- Mounting clearance: Allows flexible positioning in appliance assemblies
- Wiring setup: Compatible with standard terminal connections
- Environmental considerations: Suitable for humid and high-temperature environments
- Maintenance routine: Easily accessible reset button for quick servicing
What is a commercial limit switch?
A commercial limit switch is an electromechanical device used to detect the presence, absence, or position of components in industrial and foodservice machinery. It typically incorporates a mechanical actuator, such as a disc or lever, that triggers an electrical contact when specified conditions are met. The Star Mfg 2E-Z4497 Limit Switch is installed in equipment like conveyor systems, heating units, or processing machinery, providing precise control based on temperature or positional parameters. Designed for high durability and reliability, it supports critical safety and operational functions in moderate-volume food processing, heating, and automation applications, ensuring machinery operates within designated parameters without interruption.
Top commercial limit switches for medium-volume foodservice operations
Reliable and robust, the Star Mfg 2E-Z4497 limit switch offers precise control for medium-volume food processing facilities. Its durable design and easy integration make it ideal for temperature-sensitive equipment and automation tasks in commercial kitchens or industrial settings. Manufactured by AllPoints, model 2E-Z4497 supports efficient workflow and consistent safety monitoring in demanding foodservice environments.
- Operation type — suitable for equipment monitoring in conveyor or heating systems
- Kitchen type — ideal for compact commercial food processing spaces
- Foodservice category — suitable for bakery, deli, and restaurant equipment
- Workload qualifier — optimized for moderate throughput machinery
- Use case — effective in temperature control and safety shutoff systems
Why Choose AllPoints 2E-Z4497 Limit Switch?
Designed with precision and durability, the AllPoints 2E-Z4497 limit switch outperforms many generic counterparts through its high-temperature resilience, easy manual reset, and versatile mounting options. Its compact footprint and quick-connect terminals streamline installation and maintenance in industrial food equipment. Its robust construction ensures long-term performance in high-demand environments, enhancing operational efficiency and safety in food processing lines.
- Self-contained design with reliable thermal and position sensing
- Constructed with corrosion-resistant materials for longevity
- Compact footprint facilitates seamless integration into existing systems
- Manual reset feature supports quick recovery after activation
- Built for demanding commercial kitchen automation applications
