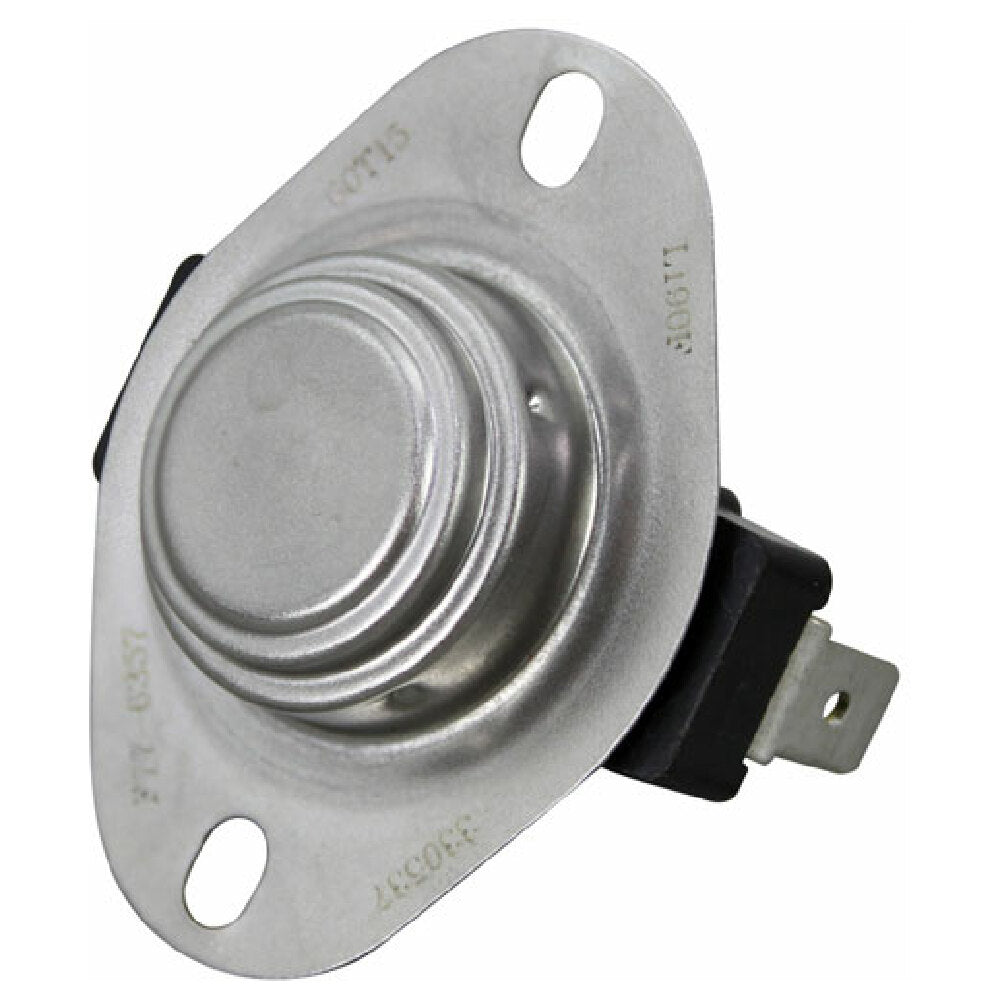

The Star Mfg 2E-200566 Limit Switch is a commercial-grade mechanical limit device used in foodservice equipment to monitor and control appliance operations. Designed for precise temperature and safety regulation, this limit switch features a disc-type sensing element with a 190°F temperature set point. Its manual reset function ensures controlled safety responses. Compatible with various foodservice applications, particularly those involving toasters and heating units, it offers reliable operation with a compact footprint of 2.5" width and 2" depth, and a height of 1.25". Built for durability, it meets the rigorous standards of commercial kitchen environments, facilitating safe and efficient equipment management.
Top AllPoints 2E-200566 Features
The Star Mfg 2E-200566 Limit Switch delivers precise safety control for commercial toasters, ovens, and heating appliances. Its manual reset ensures fail-safe operations, while the disc-type sensor provides accurate temperature monitoring. Designed with 1/4" tabs and 2 Mount holes for straightforward integration, it withstands demanding kitchen conditions. Durable construction with a temperature threshold of 190°F and flexible tab configuration supports maintenance and safety workflows in foodservice environments.
- Reliable temperature sensing: Disc type with a 190°F set point for safety.
- Durable construction: Built with sturdy materials for demanding kitchen use.
- Easy installation: 1-5/8\" mounting hole centers and 2 mount holes.
- Manual reset feature: Ensures safety crew control post-activation.
- Compact design: Fits seamlessly in various appliances without space issues.
Ideal for integrating into commercial kitchen equipment to enhance safety and performance.
Star Mfg 2E-200566 Technical Specs
The Star Mfg 2E-200566 limit switch operates with a 190°F temperature threshold and features a disc-type sensor with a diameter of 0.928 inches. It is designed for use in foodservice environments requiring manual reset capability, with electrical connections specified via 1/4" tabs. The switch’s metal mounting plate provides sturdy attachment, supported by 1-5/8 inches spacing between mounting holes. Weighing only 0.1 lbs, it is constructed primarily from durable materials suitable for high-temperature operations. Its compact size, 2.5" width and 2" depth, allows for seamless installation in appliance assemblies. This switch is intended for use in environments where precise safety cutoffs are essential, ensuring reliable performance over extended periods without hazardous factor considerations.
- Electrical connections: 1/4" tabs for straightforward wiring integration.
- Temperature threshold: 190°F maximum safe operating temperature.
- Mounting specifications: 1-5/8" center-to-center holes, 2 holes total.
- Construction materials: Robust metal components for longevity.
- Dimensions: 2.5" W x 2" D x 1.25" H, lightweight 0.1 lbs.
What is a commercial limit switch?
A commercial limit switch is a mechanically activated safety device used in foodservice equipment to monitor operational parameters such as temperature or position. Installed within appliances like toasters or ovens, it triggers specific control actions when preset limits are exceeded, ensuring safe device operation and preventing damage. The Star Mfg 2E-200566 Limit Switch is a model optimized for safety regulation in appliances requiring precise temperature detection and manual reset function. Suitable for installation in heating and cooking equipment, it supports safety compliance and operational reliability in high-volume foodservice settings.
Top commercial limit switches for foodservice safety and control
Designed for moderate workflow applications in foodservice, the Star Mfg 2E-200566 limit switch offers robust performance and reliability. AllPoints 2E-200566 is built with a safe manual reset mechanism, precise temperature sensing, and durable materials tailored for commercial kitchen equipment, making it suitable for mid-volume oven and toaster safety management.
- Operation in moderate throughput foodservice environments
- Suitable for compact commercial kitchen spaces
- Optimal for safety monitoring in cooking and heating units
- Supports consistent performance with reliable safety features
- Designed for installation in commercial kitchen equipment applications
Why Choose AllPoints 2E-200566
The AllPoints 2E-200566 limit switch stands out through its durable disc sensor, manual reset safety feature, and compact design, enabling precise safety regulation in foodservice appliances. Its 190°F temperature set point and sturdy metal mounting enhance operational reliability, while straightforward wiring and installation features improve maintenance efficiency compared to similar models.
- Self-contained switch with precise manual reset capability
- Compact footprint optimizes space in commercial appliances
- Metal construction for high-temperature resilience
- Designed for seamless integration in commercial kitchen setups
- Reliable safety performance in diverse foodservice environments
