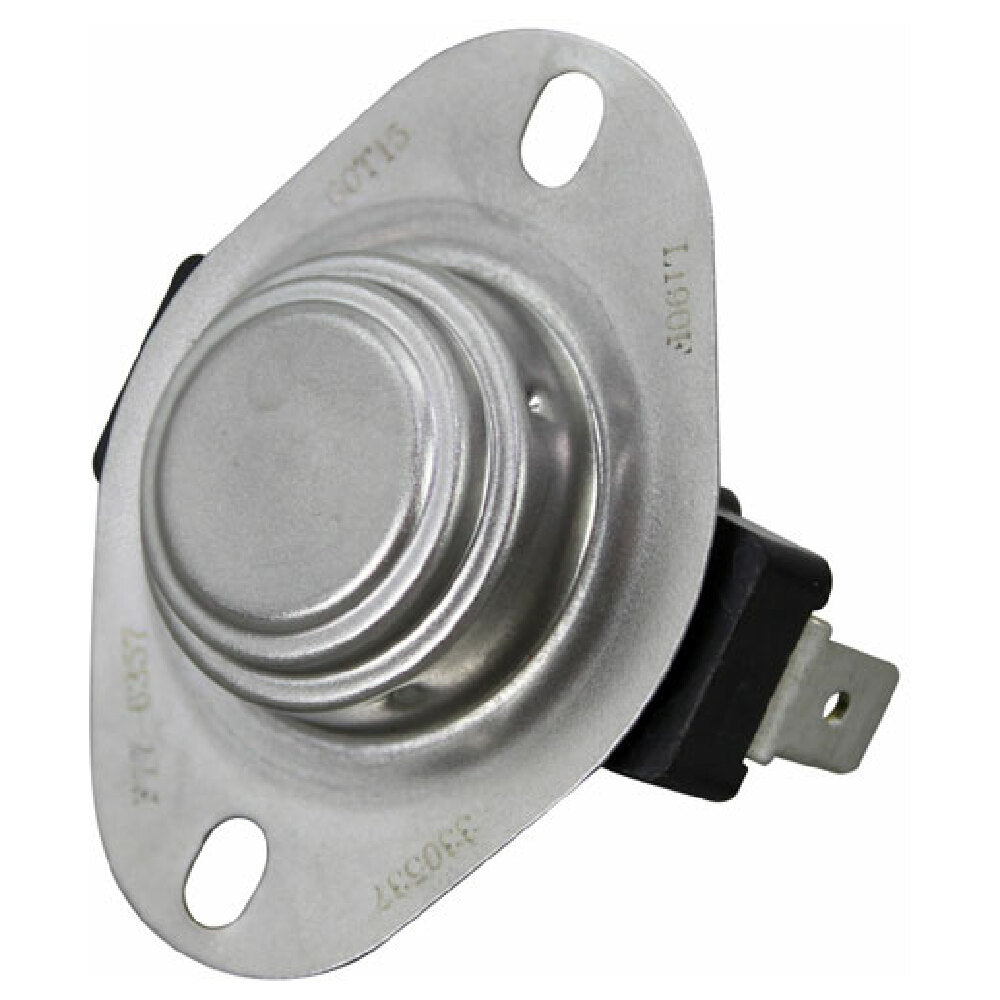

The Star Mfg 2E-200542 Limit Switch is a precision electric safety device designed for industrial and commercial foodservice applications, specifically in equipment such as toasters and food processing machines. This limit switch utilizes a disc-type mechanism with a temperature rating of 190°F, featuring manual reset capabilities for safety and operational control. It incorporates two 1/4" terminal tabs and mounting holes spaced 1-5/8" apart on center, facilitating reliable integration into complex machinery. Its dual design includes both old-style (180° tab orientation) and new-style (90° tab orientation with bending capability), ensuring compatibility with existing and evolving equipment standards. The device's compact size and robust construction make it suitable for high-temperature environments and demanding kitchen workflows requiring precise electrical interruption to prevent overheating or mechanical failure.
Top AllPoints 2E-200542 Features
The Star Mfg 2E-200542 limit switch offers dependable temperature-based shutoff with manual reset for hot equipment such as commercial toasters and fryers. Engineered with durable components, it features a 0.928" disc for accurate thermal sensing and easy reset. Its versatile mounting options and flexible tab orientation support seamless installation in varied foodservice machinery, optimizing workflow efficiency. The switch’s proven design ensures durability in high-temperature settings, reducing maintenance downtime for commercial kitchens and food processing lines.
- Reliable temperature sensing: Disc type with 0.928" diameter for precise detection
- Rugged construction: Durable materials rated for 190°F operation
- Easy manual reset: Located on the back for quick safety reinstatement
- Flexible mounting options: 1-5/8" centers with bent tabs for installation adaptability
- Compatible with high-temp kitchen equipment: Supports toaster and food prep safety systems
Ideal for installation in commercial toaster and food prep equipment requiring temperature limits and safety resets.
Star Mfg 2E-200542 Technical Specs
This limit switch from Star Mfg measures 2.5 inches in width, 2 inches in depth, and 1.25 inches in height, weighing just 0.1 pounds. It operates within a maximum temperature range of 190°F and is constructed from high-quality materials suitable for industrial environments. The device features a disc diameter of 0.928 inches, mounted via two 1/4" terminal tabs with 1-5/8" mounting hole centers, supporting straightforward installation in commercial foodservice equipment. It is designed for non-hazardous environments and ships typically within 4 to 5 days. Its robust build ensures long-term reliability under rigorous operational conditions, making it a practical choice for safety interlock systems.
- Electrical requirements: No specific voltage or current specified
- Construction & finish: Durable metal components with a high-temperature rating
- Dimensions: 2.5"W x 2"D x 1.25"H (cm: 6.4 x 5.1 x 3.2)
- Weight: 0.1 lbs (0.045 kg), lightweight for easy installation
- Temperature resistance: Up to 190°F maximum operating temperature
- Material safety: Compatible with foodservice safety standards, corrosion-resistant
Ensure proper clearance and airflow during installation; adequate wiring connections and mounting support are essential for optimal operation, especially in high-temperature kitchen environments.
What is a commercial limit switch
A commercial limit switch is an electromechanical device used to monitor and control high-temperature equipment by automatically interrupting electrical circuits when specific temperature thresholds are exceeded. Installed in applications like food processing and commercial cooking equipment, this device provides safety shutdown features, such as the Star Mfg 2E-200542 Limit Switch, with manual reset options for enhanced operational safety. It is typically used in toasters, fryers, and other hot kitchen appliances to prevent overheating, ensuring compliance with safety protocols and maintaining equipment longevity, especially in mid-volume restaurant or institutional foodservice operations.
Top temperature control switches for commercial foodservice environments
Designed for moderate-use kitchens and foodservice setups, the AllPoints 2E-200542 limit switch from Star Mfg provides reliable temperature safety control with a durable, compact design suitable for commercial kitchens with moderate throughput. Its robust construction ensures longevity in high-heat environments, making it ideal for food prep, toasters, and baking equipment in institutional or restaurant settings.
- Operation Type — food prep stations and toasters
- Kitchen Type — compact commercial spaces
- Foodservice Category — equipment safety control
- Workload Qualifier — moderate throughput
- Use Case — thermal safety shutdown
Why Choose AllPoints 2E-200542 Limit Switch?
The AllPoints 2E-200542 limit switch distinguishes itself through its precise thermal sensing, easy manual reset, and durable build quality tailored for commercial kitchen safety. Its flexible mounting options and high-temperature rating support seamless integration into food processing and cooking equipment, helping maintain operational safety and equipment integrity while minimizing maintenance needs.
- Compact footprint coordinating with limited space kitchen layouts
- High-temperature durability supporting continuous operation in hot environments
- Manual reset for safety compliance in hot equipment control
- Corrosion-resistant construction for longevity in foodservice conditions
- Versatile mounting and tab orientation for flexible installation in existing setups
