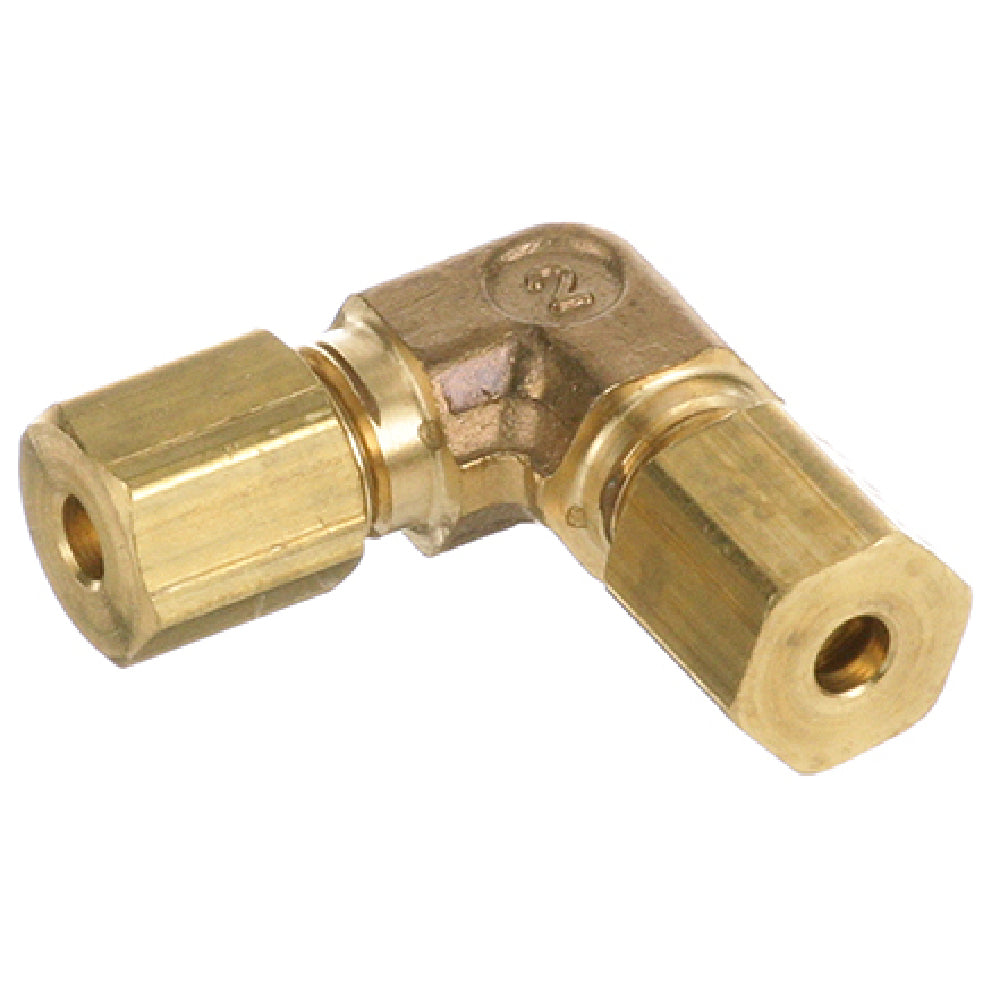

The AllPoints 261389 Union Elbow is a precision-engineered plumbing fitting designed for commercial foodservice applications requiring durable and reliable pipe connections. Crafted from high-quality brass, this 1/8" compression union features a 90-degree elbow configuration with precision threading of 5/16"-24, suitable for tightly sealed fluid transfer lines. Its robust construction ensures long-lasting performance in demanding environments, making it ideal for connecting piping systems in restaurant kitchens, beverage stations, or cold storage setups where leak-proof integrity is essential.
Top AllPoints 261389 Features
The AllPoints 261389 Union Elbow simplifies pipeline configuration in commercial kitchens, ensuring secure, corrosion-resistant connections. Its brass material provides durability against frequent disassembly and cleaning. Designed for ease of installation, this elbow facilitates quick, tool-free assembly, reducing maintenance time. Its compact 1/8" size fits tightly confined spaces, enhancing workflow efficiency in foodservice environments. The high-precision threading guarantees leak-free operation essential for delicate beverage or refrigeration lines.
- Functionality: Provides 90-degree fluid routing with 1/8" compression fitting
- Durability: Made from corrosion-resistant brass alloy for long-term use
- Ease of maintenance: Features standard 5/16"-24 threaded connection for quick disassembly
- Application fit: Ideal for direct piping connections in confined commercial kitchen setups
- Workflow benefit: Ensures leak-proof joins, reducing downtime and cleanup
Recommended for plumbing connections in foodservice establishments requiring dependable pipe fittings.
AllPoints 261389 Technical Specs
The AllPoints 261389 Union Elbow is constructed from high-quality brass, ensuring chemical resistance and durability in foodservice plumbing. Its dimensions include a 0.5" height, 1" width, and 1" depth, with a weight of only 0.1 lbs. The threaded connection measures 5/16" - 24, compatible with standard piping systems. The fitting operates effectively within typical water temperature ranges for commercial kitchen plumbing and does not contain hazardous materials. It is manufactured in the United States, ensuring adherence to quality standards. Cleaning and maintenance involve simple disassembly without special tools, facilitating quick repairs or system adjustments. Suitable for use in different piping materials, it withstands regular cleaning cycles without degradation.
- Electrical requirements: Not applicable
- Construction: Brass alloy with advanced threading
- Dimensions: Height 0.5", width 1", depth 1"
- Weight: 0.1 lbs per unit
- Temperature resistance: Suitable for up to 200°F operating range
- Food safety: Material safe for potable water and cleaning chemicals
- Installation considerations: Requires 5/16"-24 threaded pipe connections, accessible for hand or wrench installation
Potential integration scenarios include verifying pipeline compatibility, ensuring proper drainage clearance, and confirming material suitability for water quality standards. Proper spacing for disassembly, maintenance routines, and inspection points should follow the plumbing configuration specifications.
What is a commercial pipe fitting?
A commercial pipe fitting is a connector used in plumbing systems within foodservice environments to join, redirect, or terminate piping runs. The AllPoints 261389 Union Elbow functions as a 90-degree brass connector designed for precise, leak-proof fluid transfer between pipes. Installed in supply lines for refrigeration, beverage dispensing, or washing systems, it helps maintain system integrity under frequent disassembly and cleaning. Its dimensions and threading meet industry standards for commercial plumbing, making it suitable for mid-volume kitchen operations involving water, cleaning solutions, or fluid transport in restaurant or cafeteria settings.
Top Precise Pipe Fittings for Foodservice Operations
Optimally designed for commercial kitchen plumbing, the AllPoints 261389 union elbow offers resilient brass construction and precise threading for reliable pipe connections in foodservice settings. Perfect for medium workload applications such as beverage lines and refrigeration systems, this fitting ensures leak-proof operation and ease of maintenance, supporting efficient workflow and sanitation standards with its corrosion-resistant build. AllPoints 261389 provides dependable performance for professional hospitality plumbing needs.
- Moderate workload — suitable for standard kitchen plumbing systems
- Commercial kitchen plumbing — optimized for slip-fit or threaded piping
- Foodservice piping — designed for water, chilled fluids, or cleaning chemicals
- Workflow efficiency — ensures quick disassembly for cleaning or repairs
- Mid-volume applications — supports steady, reliable fluid transfer
Why Choose AllPoints 261389?
Why choose the AllPoints 261389 Union Elbow over other commercial plumbing fittings? Its robust brass construction offers superior durability, with precise threading that guarantees a leak-proof connection. Its compact design fits tight spaces while providing dependable performance for critical foodservice piping. The fitting’s ease of installation and maintenance reduces downtime, and its corrosion resistance extends service life, supporting efficient operation in busy commercial kitchens.
- Compact footprint designed for confined piping spaces
- High-quality brass resists corrosion and chemical exposure
- Precision 5/16"-24 threaded connection ensures secure fit
- Built for frequent disassembly and cleaning processes
- Ideal for restaurant-grade plumbing systems requiring reliable fittings
