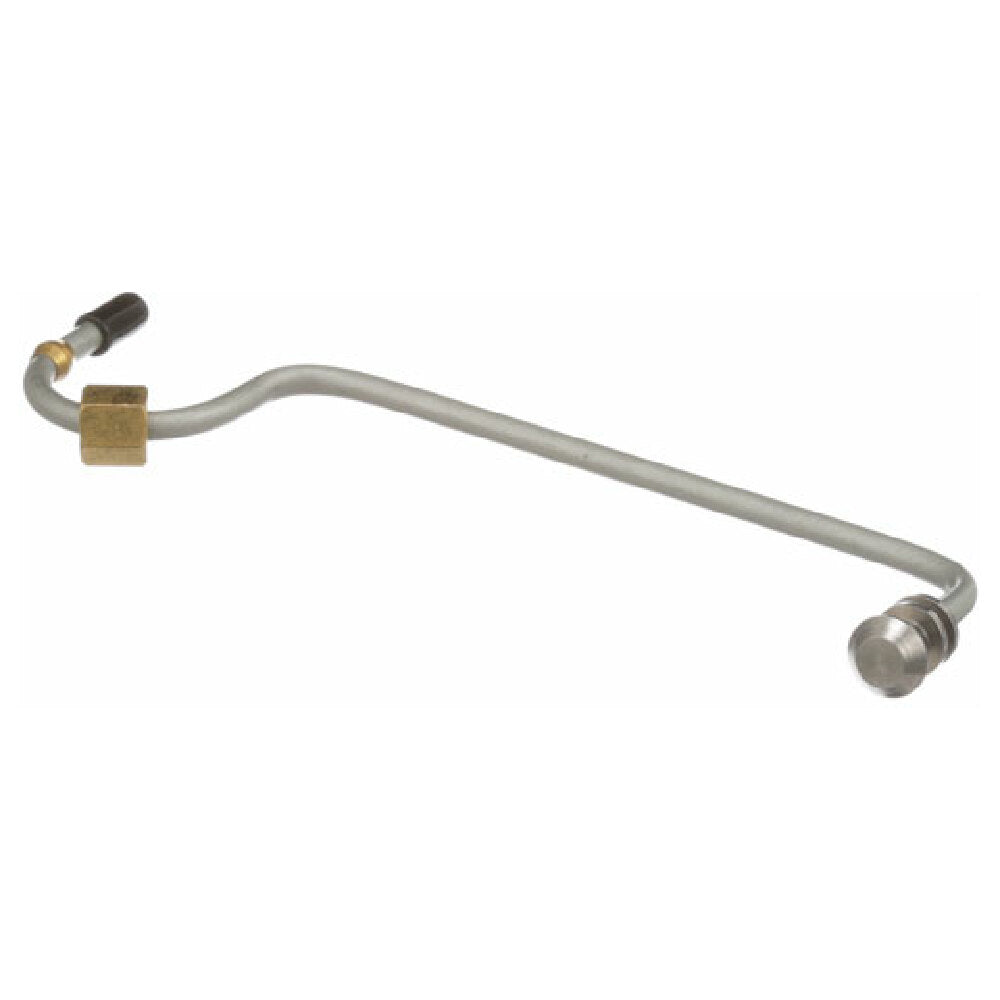

The Garland 253133-8 Pilot Tubing Assembly is a precision-engineered component designed for commercial foodservice applications, specifically within broiler and griddle equipment. Manufactured by Garland, this pilot assembly features a 1-1/4" center slot to tube connection, with dimensions of 4-1/2" length, 1-1/2" width, and 1-1/2" height, and a 6" outside diameter. It is constructed from durable materials suitable for high-temperature environments and integrates seamlessly into Garland's range of US Range Broiler C-hds-a series and Gxc series units. This assembly ensures reliable ignition and consistent gas flow, critical for maintaining safety and operational efficiency in commercial kitchens requiring precise pilot control and burner performance. Its technical specifications enable integration in various broiler models, helping foodservice operators optimize workflow and equipment reliability.
Top Garland 253133-8 Features
The Garland 253133-8 Pilot Tubing Assy offers precise gas ignition control and durable construction for commercial broilers. Its 1-1/4" center slot ensures a secure fit, while the high-quality materials withstand demanding kitchen environments. Designed for easy maintenance, this assembly supports reliable ignition in mid-volume restaurant kitchens, enhancing safety and efficiency during daily operations.
- Ensures consistent ignition performance for reliable burner operation in commercial kitchens
- Constructed from durable materials resistant to high temperatures and corrosion
- Easy to install and service with straightforward mounting compatible with Garland models
- Fits US Range Broiler series and similar equipment for seamless integration
- Supports efficient gas flow to optimize cooking performance and workflow
Designed for professional kitchen applications requiring dependable pilot assembly components
Garland 253133-8 Technical Specs
The Garland 253133-8 Pilot Tubing Assy features a robust stainless steel construction, ensuring longevity and resistance to operational wear. With dimensions of 4-1/2" in length, 1-1/2" in width, and 1-1/2" in height, it fits standard Garland broiler units with a 6" outside diameter. The assembly operates in high-temperature environments without the need for electrical requirements, relying solely on gas flow for ignition. It is compatible with commercial-grade broiler models designed for moderate throughput foodservice operations, providing reliable ignition and gas flow control essential for safe and efficient cooking processes. The component weighs approximately 0.1 lbs and is engineered for easy disassembly and maintenance, supporting continuous operation in busy restaurant settings.
- Dimensions: 4.5" length x 1.5" width x 1.5" height
- Material: Stainless steel construction for durability and corrosion resistance
- Weight: 0.1 lbs for easy handling and installation
- Compatibility: Fits Garland broiler models with 6" OD units
- Operating environment: Withstands high temperatures without degradation
What is a commercial pilot tubing assembly?
A commercial pilot tubing assembly is a gas delivery component critical for igniting and sustaining burners in foodservice equipment like broilers and grills. The Garland 253133-8 Pilot Tubing Assy facilitates precise ignition and consistent gas flow, improving safety and performance in food preparation settings. Installed within commercial broiler units, it ensures reliable operation during product cooking cycles and supports maintenance efficiency, making it suitable for mid-volume restaurant kitchens and professional culinary environments.
Top gas pilot tubing for mid-volume restaurant kitchens
This high-quality pilot tubing assembly from Garland with part number 253133-8 is designed for reliable ignition and durability in commercial broiler applications, ideal for mid-volume restaurant operations requiring consistent gas flow and easy maintenance. Garland 253133-8 is built for sustained performance in professional kitchens with moderate throughput, ensuring safety and operational stability.
- Operation type — Suitable for broiler and grill installations
- Kitchen type — Designed for commercial restaurant setups
- Foodservice category — Ideal for professional cooking equipment
- Workload qualifier — Supports moderate throughput applications
- Use case — Ensures safe ignition and reliable burner operation
Why Choose AllPoints Garland 253133-8?
The Garland 253133-8 Pilot Tubing Assy distinguishes itself with its high-quality stainless steel build, precise dimensions, and compatibility with Garland’s popular broiler models. Its design prioritizes durability, ease of installation, and reliable ignition, reducing downtime and maintenance needs compared to competing pilot assemblies. This component enhances overall burner safety and efficiency, making it a dependable choice for commercial kitchens focused on consistent performance and operational continuity.
- Compact footprint suits tight installation spaces
- Constructed with corrosion-resistant stainless steel
- Designed for seamless integration into Garland broilers
- Supports high-temperature, wear-resistant performance
- Facilitates easy disassembly for routine maintenance
