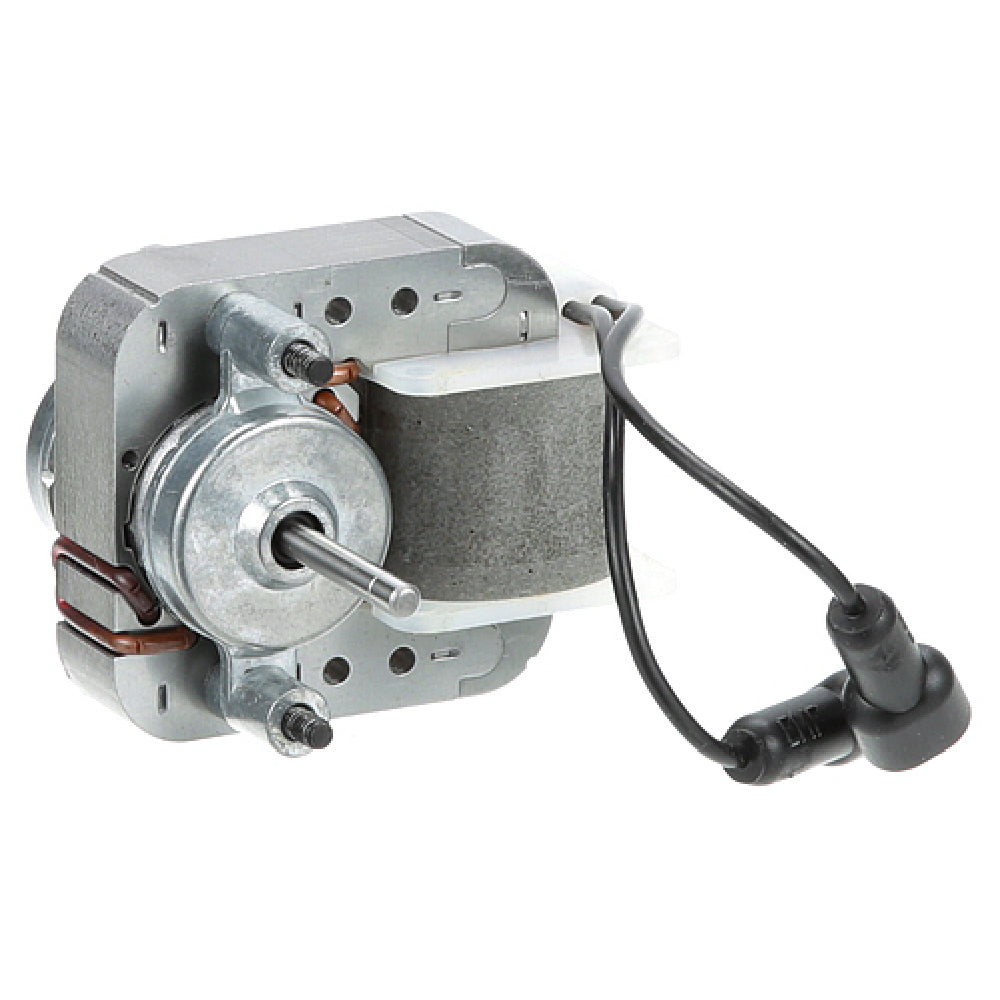

The Heatcraft 25300701 Motor Fan (115V) is a high-precision, OEM-grade fan motor designed for commercial refrigeration and HVAC applications. Featuring a 1-1/8" length shaft with a 28 mm diameter and a clockwise rotation from the shaft end, this motor operates efficiently at 115 V AC with a current draw of 0.8 amps and a speed of 3000 RPM. Built for durability and reliability, it provides stable airflow and precise fan control, making it suitable for various foodservice refrigeration units, commercial cooling equipment, and ventilation systems. Its compact form factor and robust construction ensure seamless integration into existing setups while maintaining consistent operational performance.
Top AllPoints 25300701 Features
Designed specifically for commercial foodservice environments, the Heatcraft 25300701 Motor Fan excels in airflow regulation within refrigeration and ventilation systems. Its durable motor construction ensures long-term reliability under continuous operation, while its precise RPM maintains optimal cooling performance. The motor’s compact dimensions facilitate easy mounting and replacement, reducing downtime in busy commercial kitchens. Its resistance to environmental factors and ease of maintenance make it ideal for high-demand foodservice workflows, especially where consistent airflow and reliability are critical.
- Functional airflow control: Ensures precise fan operation at 3000 RPM.
- Durably constructed: Features a high-quality motor and shaft materials for longevity.
- Ease of maintenance: Compatible with standard mounting and simple shaft replacement.
- Reliable fit: Suitable for OEM refrigeration and HVAC systems in commercial kitchens.
- Workflow integration: Designed for seamless installation within existing cooling infrastructure.
Ideal for replacing faulty fan motors in commercial refrigeration units or ventilation fans.
Heatcraft 25300701 Technical Specs
This OEM fan motor operates on 115 V AC voltage with a current draw of 0.8 amps, delivering 3000 RPM rotational speed for consistent airflow. Its air-cooled design ensures effective heat dissipation during prolonged use, making it suitable for refrigeration and ventilation systems in commercial kitchens and foodservice facilities. The motor's durable construction features a 1-1/8" shaft length with a 28 mm diameter and a 3/16" outer diameter shaft, all housed within a compact 3.25" x 3.25" x 5.5" enclosure. Weighing approximately 1.36 lbs, it’s built for dependable, long-term operation. The motor is manufactured in Mexico, adhering to industry standards for performance and safety. Its corrosion-resistant materials and straightforward disassembly facilitate easy cleaning and maintenance, minimizing operational downtime.
- Electrical Requirements: 115 V AC, 50/60 Hz, 0.8 A, 35 W
- Cooling Method: Air-cooled convection
- Product Type: OEM replacement for commercial refrigeration
- Construction & Finish: Durable metal housing with corrosion resistance
- Dimensions: 3.25" W x 3.25" D x 5.5" H
- Operating Range: Compatible with standard ambient temperatures
- Material Safety: Designed for foodservice environments with easy-to-clean surfaces
- Weight: 1.36 lbs
- Technology & Features: Self-ventilated motor for extended use
- Replacement Parts & Accessories: Standard shaft, mounting brackets
- Electrical compatibility: Suitable for 115 V, 60 Hz power supply systems
- Ventilation requirements: Compatible with standard ventilation ducting and mounts
- Mounting considerations: Compatible with OEM mounting brackets and existing fixtures
- Environmental standards: Designed for operation in typical commercial kitchen climates
- Maintenance routine: Easy shaft replacement and cleaning without disassembly of motor housing
What is a commercial fan motor?
A commercial fan motor is a critical component in HVAC and refrigeration systems used within foodservice and hospitality environments. It provides essential airflow to maintain temperature control, product freshness, and ventilation. Specifically, the Heatcraft 25300701 Motor Fan is a compact, installation-ready unit designed for OEM replacement, capable of operating reliably in foodservice refrigeration units and cooling systems with 115 V AC power. Its precise RPM, durable construction, and compatibility with standard mounting configurations support continuous, efficient airflow, making it ideal for medium-volume commercial kitchen operations, such as walk-in coolers, produce displays, and HVAC ventilation applications.
Top commercial fan motors for foodservice settings
Understanding the construction and performance of the Heatcraft 25300701 Motor Fan helps in selecting reliable, maintenance-friendly components for commercial refrigeration and ventilation applications. Manufactured by AllPoints, this model is engineered for operation in mid-volume foodservice kitchens, supporting consistent airflow and energy efficiency. It is suitable for installed in HVAC systems and low-to-moderate workload refrigeration units, ensuring smooth workflow and dependable cooling in busy restaurant or cafeteria environments.
- Operation Type — suitable for small to medium commercial kitchens
- Kitchen Type — ideal for compact foodservice spaces
- Foodservice Category — supports refrigeration and ventilation systems
- Workload Qualifier — designed for moderate throughput applications
- Use Case — replacement motor for commercial cooling fans
Why Choose AllPoints 25300701?
Designed for durability and seamless integration, the AllPoints 25300701 Motor Fan features a compact form factor, robust construction materials, and reliable performance for foodservice refrigeration and HVAC. Unlike generic motors, it offers precise RPM control, easy mounting, and long-lasting operation in demanding commercial environments. Its compatibility with standard fixtures and straightforward maintenance supports efficient kitchen workflows, ensuring minimal downtime and consistent cooling performance.
- Compact footprint for tight installation spaces
- Engineered for continuous, reliable airflow in foodservice environments
- Corrosion-resistant materials suitable for humid settings
- Easy shaft replacement simplifies routine maintenance
- Designed for OEM replacement, ensuring seamless integration
