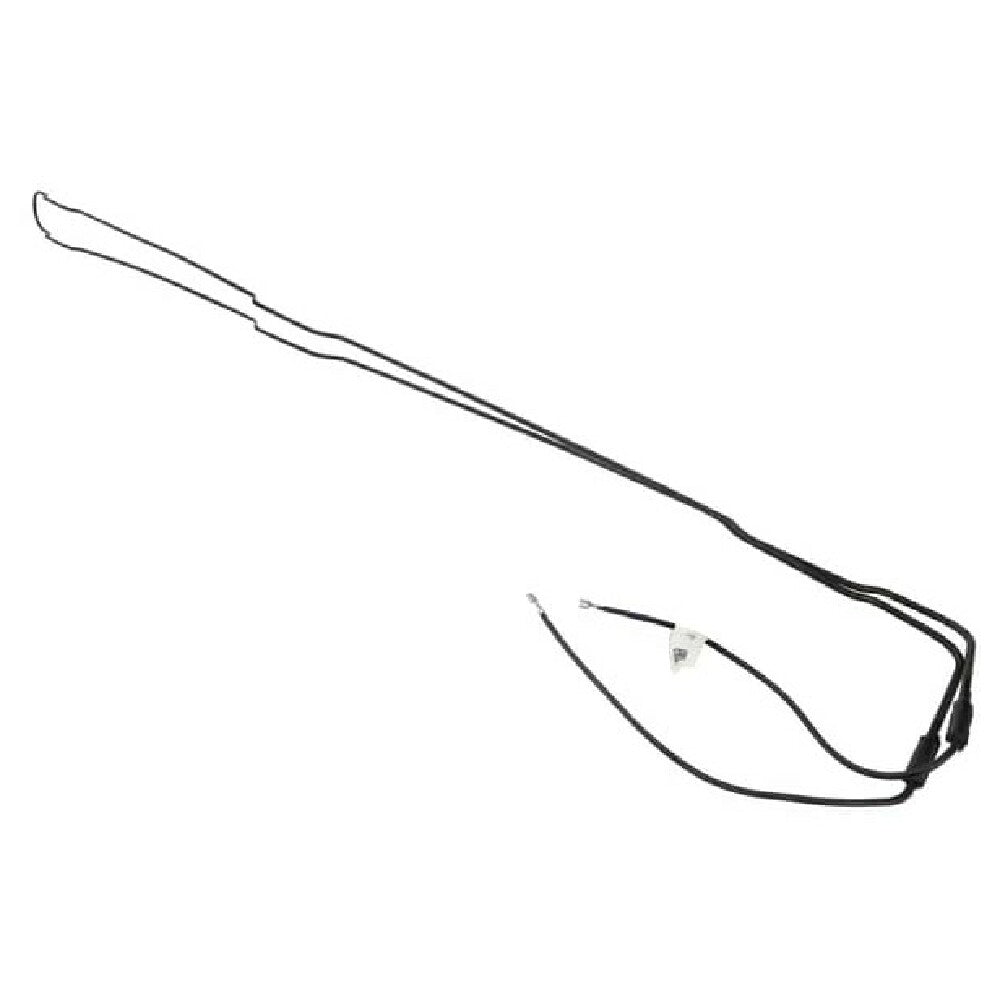

The Heatcraft 24752203 Drain Pan Heater is a specialized electrical component designed for commercial refrigeration systems, particularly in HVAC applications that require precise defrost management and condensation control. Manufactured by Heatcraft, this OEM unit features a robust electrical design to prevent drain pan freezing, ensuring consistent operation in temperature-sensitive environments. It operates with a high-wattage thermostat and includes durable, corrosion-resistant elements for extended service life. Primarily used in refrigeration units such as supermarket display cases and walk-in coolers, the drain pan heater effectively mitigates ice buildup, reducing maintenance needs and ensuring optimal drainage efficiency.
Top Heatcraft 24752203 Features
The Heatcraft 24752203 drain pan heater offers precise thermal regulation through its high-wattage heating coil, designed for easy integration into existing refrigeration systems. Constructed from corrosion-resistant materials, it withstands continuous exposure to moisture and refrigerant condensation. Its 1-inch height and 60-inch depth facilitate flexible mounting in various commercial coolers. The unit’s design simplifies maintenance with accessible terminal connections and durable construction. Suitable for medium-volume refrigeration applications, it enhances workflow efficiency by preventing drain pan freezing and ensuring consistent drainage. Compatible with standard HVAC electrical requirements, it is ideal for commercial foodservice environments that demand reliable, fail-safe operation.
- Function/performance: Precisely maintains drain pan temperature with high-wattage coil
- Durability traits: Made from corrosion-resistant, high-grade materials for extended use
- Ease of maintenance: Features accessible terminals for quick inspection and replacement
- Real-world fit: Suitable for supermarket coolers, walk-in refrigerators, and HVAC units
- Workflow benefit: Reduces ice buildup, ensuring consistent drainage and system efficiency
Best suited for refrigeration systems requiring freeze prevention and condensate control in commercial kitchens.
Heatcraft 24752203 Technical Specs
The Heatcraft 24752203 drain pan heater operates on a standard voltage rating of 120V with a frequency of 60Hz, drawing approximately 5.3 lbs of weight. It features a self-contained, OEM design with a 1-inch height and 60-inch depth, constructed from corrosion-resistant materials suitable for continuous moisture exposure. The unit’s power consumption aligns with its high-wattage coil, optimized for effective heat output to prevent drain pan freezing. It requires clearance for installation and regular inspection, with easy disassembly for maintenance. Its operating temperature range ensures safe, efficient performance in refrigeration applications, with no hazardous materials involved. The exterior finish is typically a durable, corrosion-resistant coating, supporting cleanability and longevity. The product is shipped without certification tags but is designed for integrated HVAC systems that demand reliable operation within a compact footprint.
- Electrical requirements: 120V, 60Hz, single-phase, 10A
- Construction & finish: corrosion-resistant metal with durable coating
- Dimensions: Width 1 inch, Depth 60 inches, Height 1 inch
- Weight: 5.3 lbs (product weight)
- Operating range: Suitable for environments up to 140°F (60°C)
- Food safety: Materials compliant with industry standards for moisture resistance
- Installation considerations: Adequate clearance for thermal expansion, compliance with drainage setup
Electrical compatibility: Must be connected to properly grounded 120V circuit
Drainage setup: Compatible with standard drain pan outlet configurations
Clearance & airflow: Ensure sufficient space around for heat dissipation
Maintenance routine: Regular inspection of terminals and surface for corrosion
System integration: Compatible with refrigeration units requiring drain pan freeze prevention
What is a commercial drain pan heater?
A commercial drain pan heater is a specialized electrical device installed in refrigeration and HVAC systems to prevent drain pan freezing caused by condensation and temperature fluctuations. Designed to operate reliably in moist environments, it maintains an optimal temperature to ensure proper condensate drainage. The Heatcraft 24752203 drain pan heater is installed in cooling units, such as supermarket refrigeration or walk-in coolers, where effective moisture control is critical. Its robust construction provides durability in demanding conditions, supporting continuous operation and reducing maintenance needs in medium-volume foodservice facilities, making it a vital component for efficient refrigeration system management.
Top commercial drain pan heaters for medium-volume foodservice settings
Reliable, durable, and designed for operational efficiency, commercial drain pan heaters like the Heatcraft 24752203 support refrigeration units in medium-volume environments. Built for dependable performance, they effectively prevent ice buildup, ensuring smooth drainage and system longevity. These units are ideal for hospital kitchens and foodservice operations with moderate cooling loads, providing consistent, fuss-free condensation management without complex installation issues.
- Operation type — moderate-volume refrigeration in foodservice kitchens
- Kitchen setting — compact commercial spaces requiring reliable condensate control
- Foodservice category — supermarket refrigeration, walk-in coolers
- Workload qualifier — consistent performance in medium throughput applications
- Use case — drain freeze prevention in commercial refrigeration systems
Why Choose AllPoints Heatcraft 24752203?
Designed for precise, reliable drain pan temperature regulation, the AllPoints Heatcraft 24752203 stands out among commercial drain pan heater options. Its corrosion-resistant construction, compact OEM design, and high-wattage performance optimize system longevity and operational uptime. The unit’s straightforward installation and maintenance features support efficient system management, helping foodservice operations reduce downtime and prevent costly repairs due to freeze-related drainage issues.
- Self-contained design: Compact, integrated construction for easy installation
- Robust materials: Corrosion-resistant metal ensuring durability in moist environments
- Optimized performance: Effective heat output for reliable drain freeze prevention
- System compatibility: Fits seamlessly into existing refrigeration units requiring drain pan heating
- Operational efficiency: Reduces maintenance by preventing ice buildup and drainage disruptions
