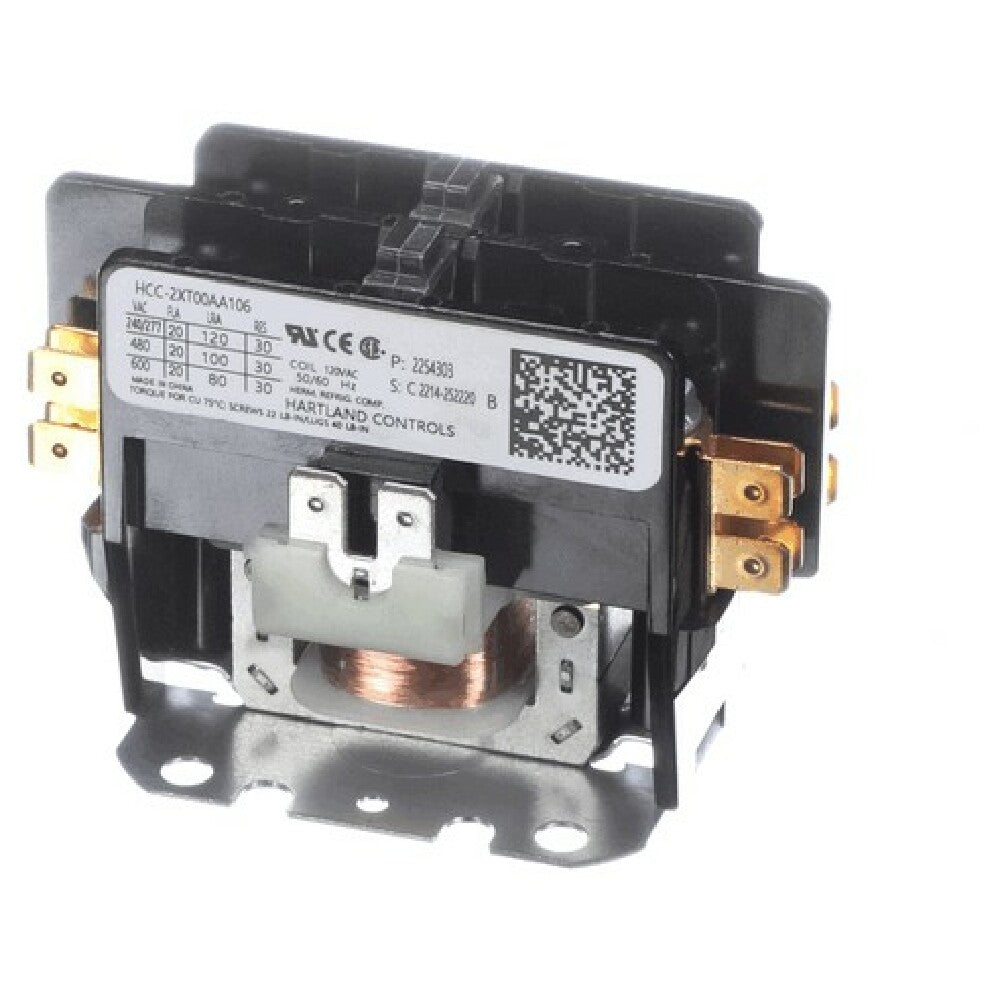

The Heatcraft 2254303 Contactor 20 Amp 2 Pole 115/60/1 is a reliable industrial electrical component designed to control power circuits in commercial HVAC and refrigeration systems. Manufactured by Heatcraft, this device features a 20 Amp capacity with a 2-pole configuration, operating at 115 volts and 60Hz in a single-phase configuration. Its robust construction provides consistent switching performance and durability in demanding environments, supporting efficient operation of commercial refrigeration, climate control, and related systems. This contactor offers precise circuit control with a compact size, suitable for integration into various commercial electrical layouts, ensuring stable operation and minimal maintenance requirements.
Top AllPoints 2254303 Features
The AllPoints 2254303 contactor is engineered for medium-duty applications in commercial HVAC and refrigeration setups, providing dependable switching capacity and ease of integration. Its durable coil and contacts ensure longevity under continuous operation, while the compact design allows for straightforward installation in tight electrical enclosures. Ideal for controlling compressor circuits, this contactor simplifies maintenance and reduces downtime, supporting streamlined workflow in foodservice environments with 115V single-phase power systems. Its precise 20 Amp switching capacity ensures reliable load management, making it suitable for commercial kitchen HVAC systems and refrigeration units.
- Functionality: Manages 20 Amp loads reliably in commercial HVAC systems
- Durability traits: Constructed with high-grade coil and contact materials for longevity
- Ease of maintenance: Designed for straightforward installation and minimal routine checks
- Application fit: Compatible with standard 115V electrical circuits in restaurant refrigeration
- Workflow benefit: Supports stable operation of refrigeration compressors and HVAC controls
Suitable for controlling compressor and condenser circuits in commercial kitchens.
AllPoints 2254303 Technical Specs
The AllPoints 2254303 contactor operates on a 115-volt, 60Hz single-phase electrical supply, delivering a 20 Amp switching capacity. It features a compact footprint measuring approximately 2.4 inches in width, 2.05 inches in height, and 3.25 inches in depth, with a lightweight construction of 0.54 pounds, facilitating easy installation in confined electrical panels. The contactor employs high-quality coil and contact materials designed for long service life and reliable switching. Its construction supports typical operation temperatures suitable for commercial environments, with dimensions optimized for appliance control applications. The device is rated as a standard OEM component, compatible with typical commercial electrical setups, and configured for use in refrigeration, HVAC, and other foodservice equipment requiring dependable circuit control.
- Electrical Requirements: 115VAC, 60Hz, 20A capacity for reliable load switching
- Construction & Finish: Durable plastic housing with corrosion-resistant contacts
- Dimensions: 2.4" W x 2.05" H x 3.25" D, lightweight design
- Weight: 0.54 lbs for easy installation and handling
- Technology & Features: High-quality coil, stable switching, OEM application suited for commercial refrigeration control
- Electrical Compatibility: Suitable for standard 115V circuits with single-phase operation
- Installation Clearance: Allows minimal clearance for panel mounting and wiring connections
- Power Supply Setup: Compatible with typical commercial electrical wiring configurations
- Maintenance Access: Easy to replace in existing electrical panels without extensive disassembly
- Environmental Suitability: Designed for indoor use within commercial foodservice equipment
What is a commercial contactor?
A commercial contactor is an electrically operated switch used to control high-current circuits in foodservice and HVAC systems. The high-quality 2254303 model from Heatcraft is a self-contained OEM component designed for switching 20 Amp loads at 115 volts in single-phase applications. Installed predominantly in commercial refrigeration and climate control systems, this contactor ensures reliable operation of compressors and condensers in foodservice kitchens. Its durable construction and precise electrical performance make it suitable for medium-volume applications and routine maintenance, supporting efficient workflow in food retail or restaurant environments.
Top OEM Contactors for Commercial Foodservice Equipment
The Heatcraft 2254303 OEM contactor is built for dependable control in medium-duty commercial HVAC and refrigeration environments. Its robust design and precise 20 Amp capacity handle typical load demands efficiently, making it ideal for foodservice settings where reliable equipment operation is critical. Manufactured by AllPoints, this contactor is suited for use in packaged refrigeration, climate control units, and similar applications requiring consistent electrical switching.
- Operation in commercial HVAC systems for controlled compressor engagement
- Suitable for compact commercial kitchen electrical enclosures
- Designed for medium workloads common in restaurant refrigeration
- Supports moderate throughput applications with high reliability
- Engineered for use with standard 115V single-phase power supplies
