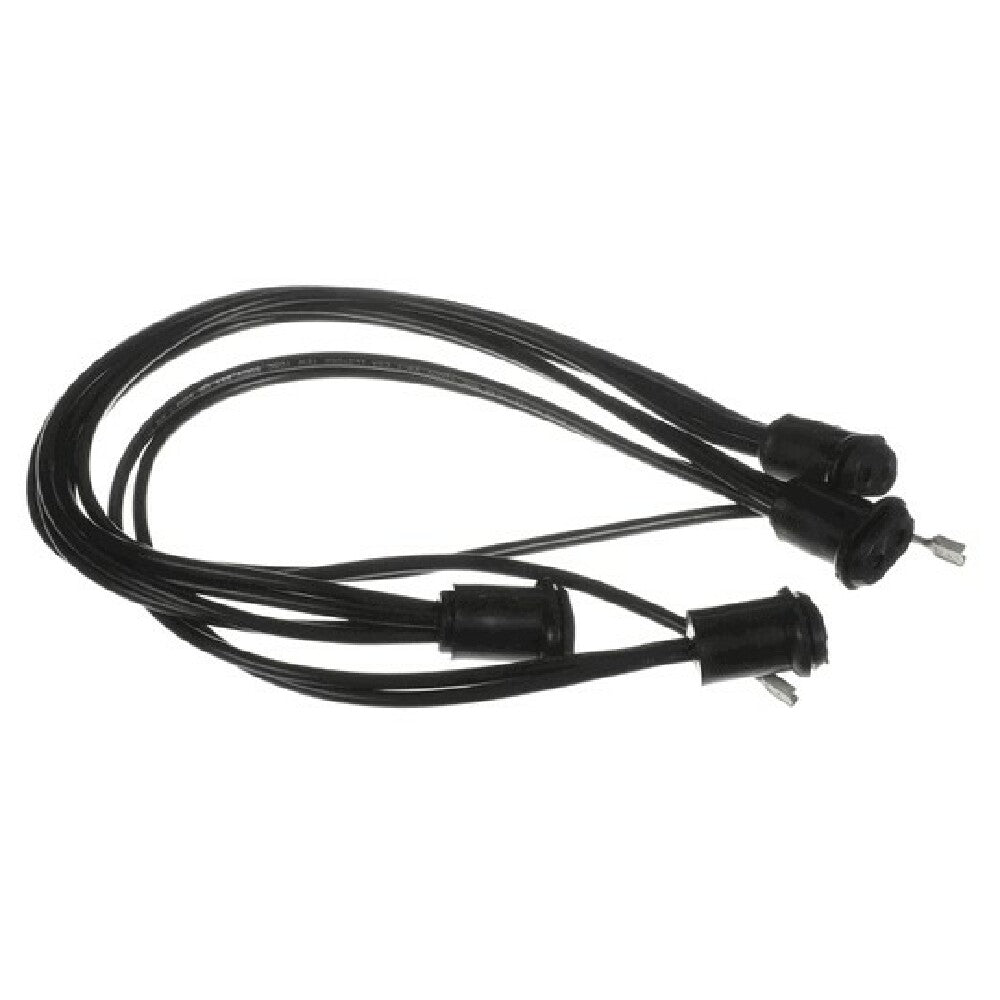

The Heatcraft 22540804 Wire Harness Evap Fan Motor is a critical component in commercial refrigeration systems, designed specifically for precise control and reliable operation of evaporator fan motors. Manufactured by Heatcraft, this OEM wire harness incorporates robust electrical connections dedicated to enhancing airflow and cooling efficiency in foodservice environments. It features a compact, durable construction suited for installation in refrigeration units that require consistent and maintenance-friendly wiring solutions. With a focus on technical compatibility, the wire harness ensures seamless integration with evaporator fan motors, supporting optimal refrigeration performance while minimizing downtime in commercial kitchen applications.
Top Heatcraft 22540804 Features
The Heatcraft 22540804 Wire Harness Evap Fan Motor is optimized for commercial refrigeration systems requiring dependable electrical connections, designed with durable materials for long-term use. Its straightforward installation facilitates quick maintenance, supporting workflow efficiency. Compatible with various evaporator fan motor assemblies, it ensures stable airflow regulation, ideal for foodservice equipment. Its precise wiring fit helps reduce installation errors, making it suitable for mid-volume refrigeration environments, such as restaurant kitchens and convenience stores.
- Functionality: Ensures reliable electrical connection for evaporator fan motors
- Durability: Made with high-grade copper wiring and insulation
- Ease of Maintenance: Snug fit simplifies troubleshooting and replacements
- Application Fit: Designed for quick integration into refrigeration units
- Workflow Benefit: Supports continuous airflow with minimal interruption
Ideal for replacement in commercial refrigeration systems requiring precise wiring connections
Heatcraft 22540804 Technical Specs
The Heatcraft 22540804 Wire Harness Evap Fan Motor features an electrical configuration suitable for typical refrigeration systems with voltage requirements aligned to 120V AC at 60Hz, supporting single-phase operation. The harness measures 5 inches in width, 5 inches in depth, and 1 inch in height, with a total weight of 1 lb, facilitating straightforward installation. It is crafted from high-quality copper and insulated with corrosion-resistant materials, ensuring long-lasting performance in temperature ranges suitable for refrigeration environments. The component is designed without hazardous materials, confirming its safety for use with foodservice equipment. The wiring harness supports system configurations requiring robust electrical continuity and resistance to vibration or mechanical stress, making it an essential part of commercial refrigeration repairs and upgrades.
- Electrical Requirements: 120V, 60Hz, single-phase, supports 1A current
- Dimensions: 5" W x 5" D x 1" H
- Weight: 1 lb
- Material Construction: Copper wiring with insulated coating
- Application Compatibility: For evaporator fan motor wiring in commercial refrigeration units
- Temperature Resistance: Operates effectively between 0°F to 125°F
What is a commercial evaporator fan motor wire harness
A commercial evaporator fan motor wire harness is a specialized electrical assembly that connects the fan motor to control systems within refrigeration units, facilitating airflow regulation essential for consistent cooling. This component includes high-quality wiring, connectors, and insulation designed for resilient operation in foodservice environments. The Heatcraft 22540804 Wire Harness Evap Fan Motor is installed in refrigeration systems such as walk-in coolers, undercounter freezers, and display cases, where reliable airflow is critical. Its precise fit and durable materials make it suitable for mid-volume foodservice settings that demand consistent refrigeration performance and straightforward maintenance. This wire harness supports system longevity and operational efficiency, playing a vital role in ensuring food safety and product quality.
Top commercial Wire Harness for foodservice environments
The AllPoints 22540804 wire harness provides robust electrical connectivity for evaporator fan motors, ensuring reliable airflow in moderate throughput refrigeration units across foodservice settings. Designed for precise installation and durability, it supports optimal system operation in commercial kitchens, hotel refrigeration, and convenience stores, ideal for medium-volume applications requiring dependable performance.
- Operational reliability for typical refrigeration workflows in commercial kitchens
- Designed for compact commercial spaces with durable wiring materials
- Suitable for foodservice refrigeration systems supporting moderate throughput
- Engineered for maintenance simplicity and quick replacements in walk-in coolers
- Supports efficient airflow regulation critical to food safety and product quality
Why Choose Heatcraft 22540804 Wire Harness for Evaporator Fan Systems?
Designed with precise engineering and high-quality materials, the Heatcraft 22540804 Wire Harness offers superior durability and electrical reliability over standard harnesses. Its compact, corrosion-resistant construction supports seamless installation and easy maintenance in commercial refrigeration units. Unlike generic options, this OEM component guarantees compatibility and system integrity, reducing downtime and operational disruptions, making it an excellent choice for restaurant and foodservice equipment maintenance.
- Self-contained design for consistent electrical performance
- Built with high-grade copper wiring for longevity and conductivity
- Optimized for quick installation in multiple refrigeration models
- Supports stable airflow and enhances refrigeration efficiency
- Minimizes electrical faults leading to fewer service calls
