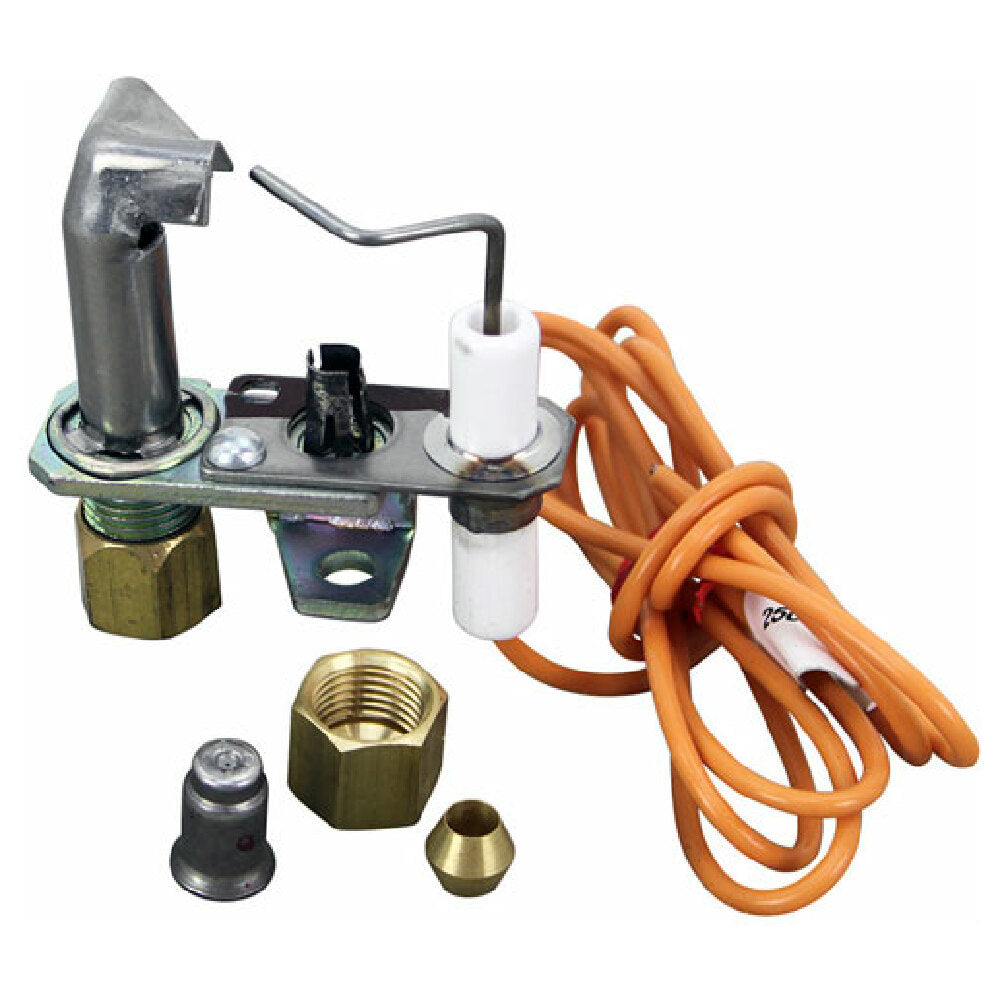

The Garland 2206502 Pilot Assy W/lead is a factory-installed pilot assembly designed for commercial gas appliances, specifically suited for Garland ovens and related foodservice equipment. Engineered with precision components such as a right flame pattern igniter, 24-inch wiring, and compatible orifices for both natural gas and liquid propane, this pilot assembly ensures reliable ignition performance. Its robust construction and compatibility with Garland Eco Ico Tg and U.S. Range Series Cg Performer II ovens make it an essential component for maintaining consistent flame initiation in professional kitchen environments, where precise burner control and operational safety are paramount. The assembly includes the necessary ignition terminal, ensuring seamless integration with existing control modules for dependable startup sequences in high-demand food processing settings.
Top Garland 2206502 Features
This pilot assembly offers advanced functionality for commercial cooking equipment, with durable materials designed to withstand high-temperature environments. It features a compact design for easy installation and maintenance, suitable for standard oven configurations, and integrates seamlessly with control modules for dependable ignition sequences. Its precise tube size and flame pattern optimize burner performance, reducing downtime and enhancing workflow efficiency in busy foodservice operations.
- Reliable ignition performance—designed for consistent flame initiation
- Durable construction with high-grade materials—resists high-temperature stress
- Compact design for easy maintenance—facilitates quick installation and servicing
- Compatibility with Garland and U.S. Range ovens—integrates seamlessly with existing equipment
- Precise ignition control—ensures safety and operational efficiency in professional kitchens
Ideal for replacement in commercial kitchen appliances requiring precise pilot ignition systems.
Garland 2206502 Technical Specs
This pilot assembly operates with standard gas connections, supporting both natural gas and liquid propane installations. It features a tube size of 3/16\" and a right flame pattern, optimized for consistent ignition across Garland Eco Ico Tg and Performer II series ovens. The assembly includes a 24-inch wire lead for straightforward wiring connections and uses a round post ignition terminal for reliable electrical contact. Constructed with durable materials suitable for high-temperature environments, it withstands rigorous use typical in commercial baking and roasting setups. Its compact dimensions—0.88 inches wide, 3.5 inches deep, and 0.5 inches high—allow for easy integration within existing appliance frameworks. Weighing only 0.3 lbs, this pilot assembly is lightweight yet sturdy, designed for long-term performance under continuous operational conditions.
- Electrical compatibility: Compatible with standard ignition modules; requires round post ignition terminal # 85-1063
- Gas orifice support: Supports LP and natural gas orifices # 26-1554
- Dimensions: Width 0.88 inches, Depth 3.5 inches, Height 0.5 inches
- Material finish: High-grade metal for durability in high-temperature environments
- Weight: 0.3 lbs for ease of handling during installation or replacement
- Operating environment: Suitable for high-temperature, commercial kitchen use
- Electrical connection: Must be wired with round post ignition terminal for proper function
- Gas connection: Compatible with standard LP or natural gas supply lines
- Installation clearance: Requires adequate airflow and clearance for safe operation
- Maintenance routine: Disassemble for cleaning with standard tools; inspect wiring periodically
- Integration scenario: Installed within boiler or oven pilot systems requiring reliable ignition
What is a commercial pilot assembly?
A commercial pilot assembly is a critical component of gas-fired appliances used in professional foodservice environments. It provides a continuous flame source essential for igniting burners on ovens, ranges, and other cooking equipment. The Garland 2206502 Pilot Assy W/lead is engineered for integrity, featuring precise tube sizing, flame pattern, and compatibility with various gas orifices. Installed in commercial kitchens such as bakeries, restaurants, and institutional dining facilities, it ensures reliable ignition and safety during continuous operation, supporting efficient workflow in high-volume food preparation settings.
Top commercial pilot assemblies for high-volume foodservice operations
Designed for medium-workload commercial kitchens, Garland 2206502 pilot assemblies exhibit high durability, precise ignition control, and compatibility with Garland equipment, making them suitable for reliable performance in professional foodservice venues. Manufactured by AllPoints, this pilot assembly supports efficient and safe operation essential for restaurant-ready appliances and high-demand culinary environments.
- Operation for mid-volume oven and range applications
- Ideally suited for compact commercial kitchen setups
- Suitable for professional foodservice cooking equipment
- Designed for moderate throughput workloads
- Perfect for oven pilot ignition in food preparation stations
Why Choose AllPoints 2206502?
The AllPoints 2206502 Pilot Assy W/lead stands out through its durable metal construction, precise flame pattern, and seamless compatibility with Garland and U.S. Range ovens. Its reliable ignition system reduces downtime, while compact design simplifies installation and maintenance. Unlike standard pilot assemblies, this model incorporates high-quality components that improve operational longevity and safety, making it a top choice for demanding commercial kitchens seeking dependable gas ignition solutions.
- Compact footprint facilitates quick installation and servicing
- High-grade materials ensure long-term durability
- Enhanced ignition reliability reduces operational disruptions
- Seamless integration with Garland oven control systems
- Designed for consistent performance in restaurant-grade environments
