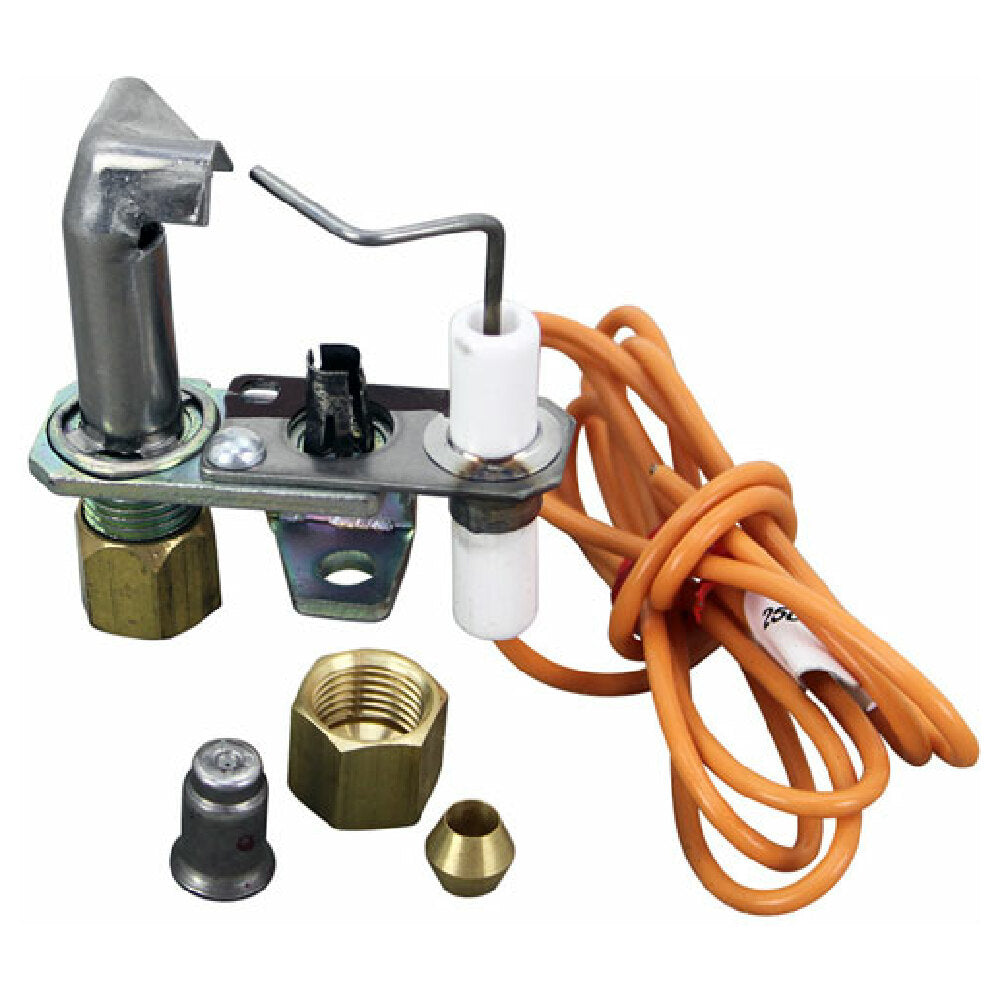

The Garland 2206501 Pilot Assy W/lead is a factory-installed ignition assembly designed for commercial oven applications, specifically as a component of Garland’s Mavrik series. It features a right-pattern flame igniter with a 3/16" tube size, integrated with a 24-inch wire for reliable operation in natural gas and LP gas environments. The assembly is compatible with Garland Eco Ico Tg ovens and US Range Series CG Performer II convection ovens, offering precise, durable performance essential for high-precision foodservice operations. Its robust construction and exact specifications ensure consistent ignition for efficient cooking processes, making it suited for professional kitchen environments requiring dependable ignition systems with straightforward integration and maintenance.
Top Garland 2206501 Features
This pilot assembly provides a reliable flame ignition source with a durable, corrosion-resistant design suited for repeated use in commercial foodservice settings. It integrates seamlessly with Garland and US Range ovens, offering precise flame pattern control and straightforward installation. The assembly’s wire length and compatibility with round post ignition terminals streamline maintenance, reducing downtime in busy kitchens. Its compact form factor facilitates flexible mounting options, enhancing workflow efficiency and safety protocols in high-volume food production environments.
- Functionality: Precise right-pattern flame ignition for consistent combustion
- Durability: High-grade metal components resist corrosion in commercial kitchens
- Ease-of-use: Compatible with round post ignition terminals for quick installation
- Fit & Compatibility: Designed for Garland Eco Ico Tg and US Range Convection ovens
- Workflow support: Reliable ignition reduces operational delays during cooking cycles
Ideal for installation inside professional ovens requiring dependable pilot ignition systems
Garland 2206501 Technical Specs
The Garland 2206501 Pilot Assy W/lead operates with standard flexible mounting and includes a Flame Pattern Right igniter with a 3/16” tube size. It is constructed from durable materials suitable for high-temperature environments, with an overall weight of 0.3 lbs. The assembly is designed for efficient operation in natural and LP gas setups, utilizing a compatible round post ignition terminal, part # 85-1063. It features a flame pattern optimized for stable ignition, with a flexible 24" wire connecting the igniter to the control module, facilitating easy installation and maintenance. It is made in Mexico, with dimensions optimized for seamless integration into Garland and US Range ovens, ensuring long-lasting, reliable performance under typical commercial kitchen conditions.
- Electrical Requirements: Compatible with standard gas ignition systems
- Construction & Finish: Metal components resistant to corrosion and high temperatures
- Dimensions: Height: 0.5", Width: 0.88", Depth: 3.5"
- Weight: 0.3 lbs for ease of handling and installation
- Temperature Resistance: Designed to operate reliably within typical oven combustion chamber temperatures
- Material Safety & Maintenance: Constructed from non-hazardous materials compatible with routine cleaning
- Compatibility & Setup: Fits Garland Eco Ico Tg and U.S. Range Series Cg Performer II ovens
- Electrical Connection: Use with round post ignition terminals for proper function
- Installation Clearance: Minimal space required in oven mounting areas
- Maintenance Access: Easily accessible for routine inspection and replacement
- Wire Length: 24-inch wire for flexible routing in tight spaces
- Compatibility: Optimized for natural and LP gas oven applications
What is a commercial pilot ignition assembly
A commercial pilot ignition assembly is a specialized component used in gas-powered kitchen equipment to initiate and sustain a reliable flame for combustion. Featuring durable materials and precise flame control mechanisms, this ignition system ensures consistent operation in high-demand foodservice environments. Installed in ovens, ranges, or fryers, the Garland 2206501 Pilot Assy W/lead provides a dependable ignition source, supporting seamless cooking processes in professional kitchens such as restaurants, hotels, and institutional foodservice facilities.
Top Gas Oven Pilot Ignition for high-volume Foodservice Settings
Reliable ignition components like the Garland 2206501 are built for commercial kitchens requiring consistent flame control, ideal for high-volume oven operation. These assemblies enhance operational efficiency by ensuring quick ignition and minimal maintenance. Manufactured by AllPoints, the model 2206501 is designed for durability in demanding environments, supporting continuous, safe, and compliant gas appliance operation in professional foodservice applications.
- Operation Type — suitable for high-volume oven workflows
- Kitchen Setting — designed for professional commercial kitchens
- Foodservice Category — ideal for oven ignition in restaurants and catering
- Workload Qualification — supports moderate throughput applications
- Use Case — ensures consistent flame ignition during continuous cooking cycles
Why Choose AllPoints 2206501?
AllPoints 2206501 Pilot Assy W/lead stands out with its robust construction, precise flame pattern, and compatibility with Garland and US Range commercial ovens. Its durable materials and easy installation streamline maintenance in busy kitchen environments, delivering reliable ignition performance that reduces downtime and enhances operational safety. This assembly's compact design and proven durability make it an essential component for professional foodservice equipment requiring dependable ignition systems.
- Self-contained design for straightforward integration in commercial ovens
- Corrosion-resistant materials suitable for high-temperature environments
- Compact footprint enables flexible mounting options
- Compatible with multiple gas types and ignition terminals
- Designed for long-term reliability in demanding kitchen conditions
