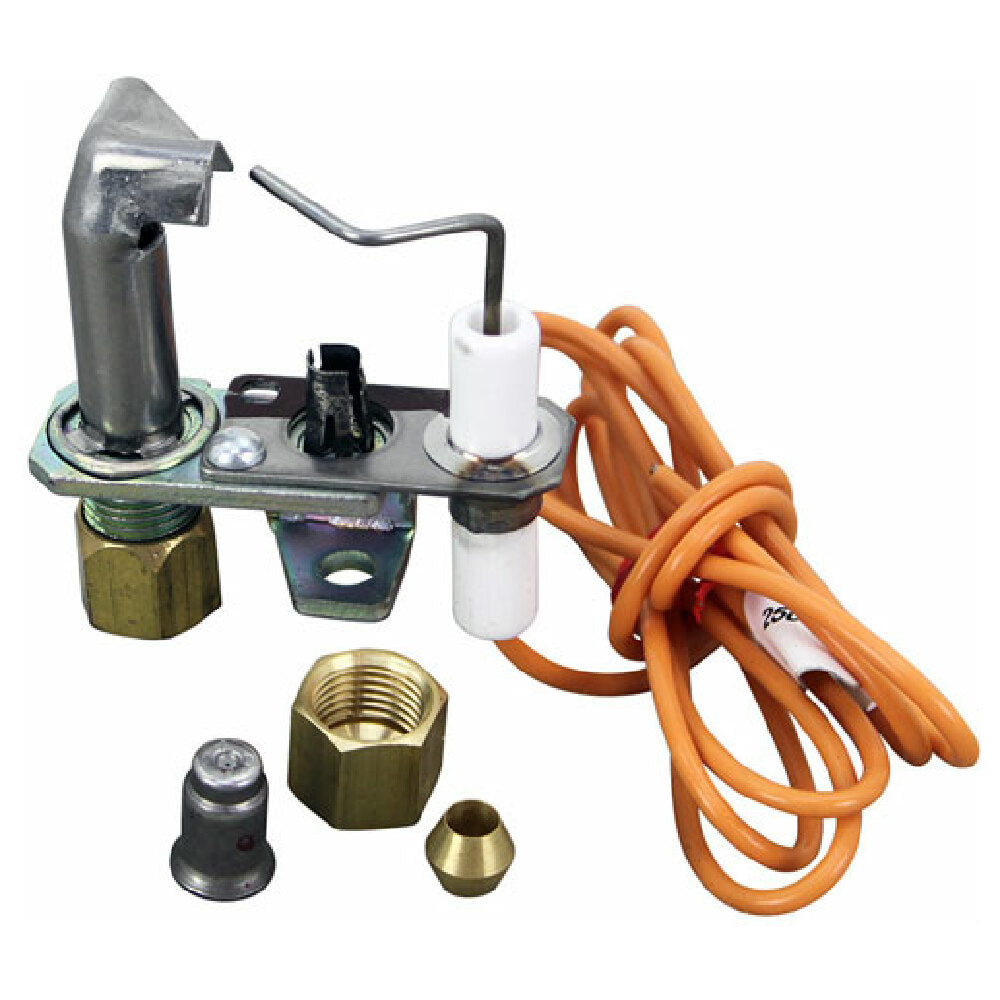

The Garland 2206500 Pilot Assy W/lead is a commercial gas appliance component designed for precise ignition control in professional oven systems. This pilot assembly integrates a right-flame pattern igniter with a 24-inch wire lead, suitable for natural gas and liquefied petroleum (LP) applications, featuring key specifications such as a 3/16" tube size and dual orifice compatibility (#26-1554 for both natural and LP). Engineered for high durability and reliable ignition, its construction aligns with industrial standards, ensuring consistent performance in commercial kitchen environments. The assembly is essential for maintaining efficient burner operation in Garland Eco Ico Tg series ovens and other US Range Series Cg Performer II convection ovens, offering precise flame initiation in demanding foodservice applications.
Top AllPoints 2206500 Features
The Garland 2206500 Pilot Assy W/lead provides accurate flame ignition, utilizing a robust ignition terminal rated for high-temperature operation. Its stainless steel construction ensures longevity and resistance to corrosion, simplifying maintenance routines. Designed for seamless integration with existing gas control modules, it facilitates efficient workflow by enabling quick replacement without extensive disassembly. Suitable for oven models requiring precise pilot flame control, it supports consistent operation in medium-volume restaurant kitchens. The assembly’s compatibility with standard orifice fittings ensures reliable gas flow regulation across varied installation setups.
- Functionality: Ensures reliable pilot ignition for gas ovens requires
- Durability Traits: Made from corrosion-resistant materials for long-term use
- Ease of Maintenance: Simple replacement with minimal disassembly required
- Fit and Compatibility: Compatible with Garland Eco Ico Tg and Performer II series
- Workflow Benefit: Supports efficient ignition in standard commercial oven configurations
Ideal for technicians and equipment managers handling commercial oven ignition systems.
2206500 Technical Specs
The Garland 2206500 Pilot Assy W/lead features an electrical requirement compatible with gas control modules designed for 24-inch igniters, with a high-temperature ignition terminal and stainless steel body ensuring durability. The component measures 0.88 inches in width, 3.5 inches in depth, and 0.5 inches in height, with a weight of 0.3 pounds, facilitating straightforward installation in confined spaces. Its materials are corrosion-resistant, suitable for high-temperature environments up to standard operating ranges, and it is designed for quick disassembly to enable routine maintenance. The assembly supports natural and LP gas connections using #26-1554 orifices, ensuring consistent gas flow for reliable ignition performance.
- Electrical Requirements: Designed for gas control modules with 24" igniter wiring
- Material Construction: Stainless steel, corrosion-resistant for industrial use
- Dimensions: 0.88" W x 3.5" D x 0.5" H
- Weight: 0.3 lbs for ease of handling and installation
- Connection Compatibility: Orifices #26-1554 for natural and LP gas
What is a commercial pilot assembly
A commercial pilot assembly is a critical gas control component used in professional kitchen appliances to initiate and maintain consistent flame ignition in gas-powered ovens and boilers. Installed within integrated gas valves, it ensures safe and reliable operation by providing a stable flame that ignites the main burner. The Garland 2206500 Pilot Assy W/lead is used in medium-duty oven systems such as Garland Eco Ico Tg and US Range Series Cg Performer II convection ovens, optimized for foodservice environments requiring consistent ignition performance and durable operation. Ideal for foodservice facilities in commercial kitchens, this assembly facilitates efficient and safe oven startup processes for high-volume food preparation.
Top commercial ignition components for foodservice facilities
Designed for medium-use kitchen environments, the Garland 2206500 Pilot Assy W/lead from AllPoints provides reliable gas ignition for professional ovens. AllPoints 2206500 suits compact commercial spaces with its durable, easy-to-maintain design, supporting consistent operation in restaurant or institutional settings. With its robust construction and precise fit, it is ideal for medium-volume foodservice operations requiring dependable ignition and minimal downtime.
- Operation Type — suitable for commercial oven ignition systems
- Kitchen Type — optimized for moderate-volume restaurant kitchens
- Foodservice Category — essential for convection oven ignition control
- Workload Qualifier — supports moderate throughput operations
- Use Case — ideal for maintaining safe and reliable oven startup processes
