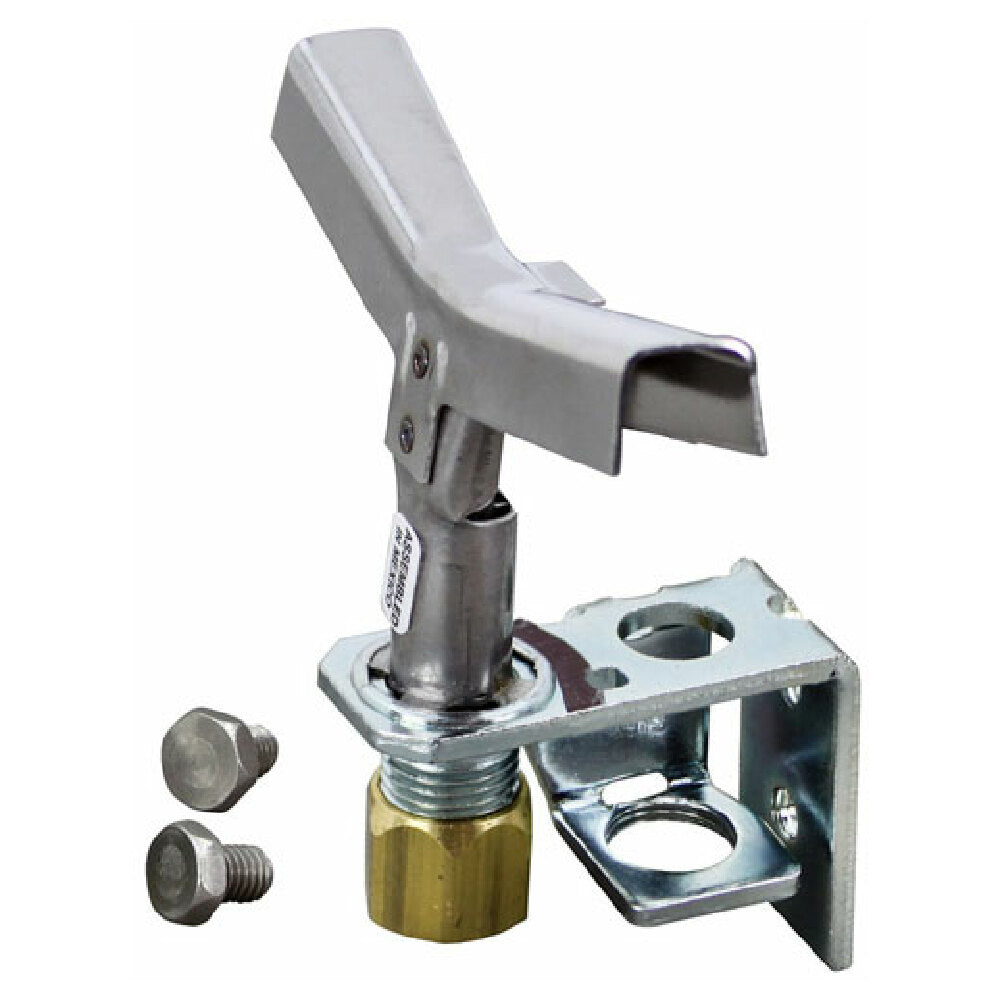

The Garland 2206401 Pilot Burner is a high-precision commercial pilot assembly designed for professional gas appliances such as ranges and ovens. Manufactured by Garland, this pilot burner features a 1/4" tube size with a flame pattern configured as a 3-way, ensuring reliable ignition across multiple gas outlets. It is equipped with a standard nut and sleeve connection and supports both LP and natural gas with specific orifices: A1100 M-275 # 261556 (.016 size) for LP and A1101 M-259 # 261557 for natural gas. Built for durability and precision, this pilot burner meets the demanding standards of commercial kitchen equipment and provides consistent ignition performance in high-use foodservice environments.
Top Garland 2206401 Features
The Garland 2206401 Pilot Burner offers precise flame control suitable for commercial range applications, with a durable construction that withstands frequent use in busy kitchen settings. Its 1/4" CCT standard nut and sleeve facilitate easy installation. Designed for compatibility with Garland IR models, this pilot burner ensures dependable ignition, simplifying maintenance and reducing operational downtime during service. Its flame pattern and orifice sizes optimize gas flow for reliable operation in moderate-volume foodservice operations.
- Reliable 3-way flame pattern ensures thorough ignition across multiple burners
- Corrosion-resistant materials extend lifespan in harsh kitchen environments
- Easy-to-service design with standard nut and sleeve assembly simplifies maintenance
- Precise orifice sizing supports accurate gas flow for consistent flames
- Compact 2.63" width and height of 1.63" facilitates installation in tight spaces
Ideal for professional ranges requiring dependable pilot ignition for efficient operation
Garland 2206401 Technical Specs
The Garland 2206401 Pilot Burner is a commercially designed component with an overall height of 1.63 inches, width of 2.63 inches, and depth of 2.63 inches. Weighing just 0.11 lbs, it is constructed from durable materials sourced from Mexico, ensuring longevity in high-volume foodservice settings. The burner supports both LP and natural gas with dedicated orifice sizes—A1100 M-275 # 261556 (.016) for LP and A1101 M-259 # 261557 for natural gas—supporting reliable ignition. Designed to operate efficiently within typical kitchen temperature ranges, this pilot assembly is compatible with Garland IR models, offering consistent performance. The device does not incorporate hazardous materials and meets applicable standards for commercial kitchen equipment.
- Electrical Requirements: Not applicable as it is gas-powered
- Material Construction: High-grade steel components resistant to corrosion
- Gas Connection: 1/4" standard nut and sleeve fitting
- Orifice Sizes: LP (.016), NAT (<- specified based on gas type)
- Dimensions: 2.63" W x 2.63" D x 1.63" H
- Weight: 0.11 lbs
- Refrigeration Type: Not applicable
- Temperature Resistance: Operates effectively in typical kitchen ambient temperatures
Additional Requirements and Considerations
- Gas supply line: 1/4" connection compatible with existing gas lines
- Installation clearance: Access for assembly and maintenance in confined appliance spaces
- Ventilation: Adequate airflow to prevent pilot flame outages
- Cleaning routines: Routine inspection of orifice and pilot tube to prevent clogging
- Compatibility with Garland IR models: Ensures proper fit and ignition performance
What is a commercial pilot burner
A commercial pilot burner is a precision Gas appliance component used to ignite main burners in professional kitchen equipment. Designed for long-term durability and reliable operation, the Garland 2206401 Pilot Burner provides a stable flame with a 3-way pattern, supporting efficient ignition across multiple outlets. Installed typically in gas ranges and ovens, it is optimized for high-volume foodservice settings like restaurants and institutional kitchens. Its specifications include a 1/4" tube connection, specific orifices for LP and natural gas, and compatibility with Garland IR models, making it suitable for mid-volume restaurant operations and high-demand food preparation environments.
Top Commercial Pilot Burners for Moderate Foodservice Workflows
Designed for moderate-volume kitchen operations, the Garland 2206401 Pilot Burner features a durable construction and precise gas flow, supporting reliable ignition in busy commercial foodservice environments. Its gas-specific orifices and easy installation make it suitable for installation in restaurant ranges and ovens, providing consistent performance for medium throughput food preparation. Garland’s build quality ensures longevity and ease of maintenance in institutional settings.
- Operation type — moderate-volume commercial range ignition systems
- Kitchen setting — busy restaurants and institutional kitchens
- Foodservice category — professional ranges and ovens
- Workload qualifier — consistent ignition during daily high-volume cooking
- Use case — reliable pilot operation in moderate throughput environments
Why Choose AllPoints Garland 2206401
The Garland 2206401 Pilot Burner stands out for its robust build, high-performance gas flow, and compatibility with Garland IR models, making it a preferred choice over standard pilot assemblies. Its corrosion-resistant materials ensure long operational life, while its compact design simplifies installation in constrained commercial kitchen setups. This model enhances operational efficiency by providing dependable ignition in busy foodservice environments, reducing downtime and maintenance needs compared to generic alternatives.
- Self-contained design supports quick installation and replacement
- Corrosion-resistant construction for prolonged durability
- Optimized for Garland IR models and similar ranges
- Compact footprint suitable for tight kitchen spaces
- Precise gas orifice sizing for stable flame performance
