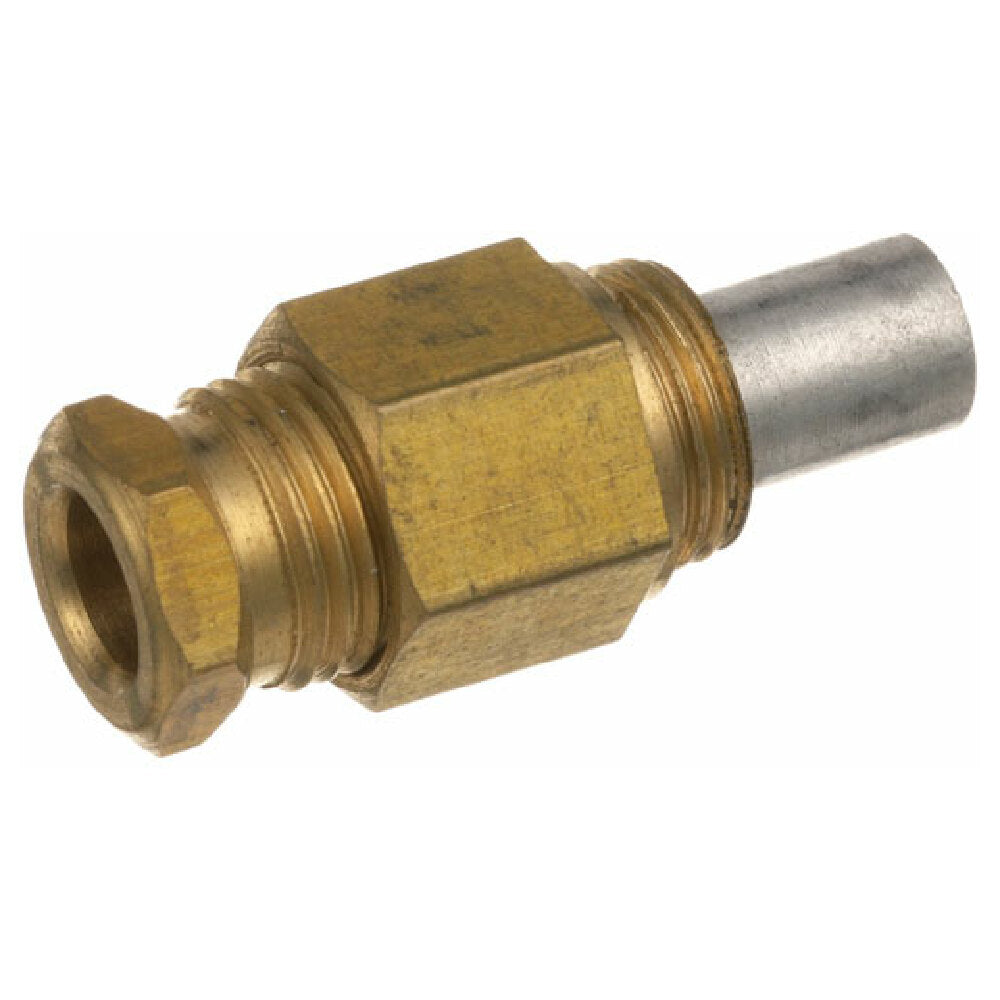

The APW 2092904 Orifice (lp) 1/4 .012 is a precision pilot orifice designed for low-pressure gas applications commonly used in commercial foodservice equipment. Manufactured by APW, this durable stainless steel component features a 1/4" connection size with a .012" orifice diameter, ensuring accurate and consistent gas flow regulation. Its robust construction caters to foodservice professionals working with LP gas appliances such as griddles, fryers, and broilers, facilitating optimal performance and safety. As an essential part for appliances requiring precise gas metering, it supports reliable ignition and operation in high-demand kitchen environments.
Top APW 2092904 Features
The APW 2092904 Orifice excels in delivering precise gas flow for commercial LP appliances, with corrosion-resistant stainless steel composition. Its flat, counter-bored design ensures secure fitting and straightforward maintenance, allowing quick replacements. This orifice supports consistent performance under rigorous kitchen conditions, making it suitable for gas-operated cookers, griddles, and fryers. Its compatibility with multiple appliance brands enhances workflow efficiency by simplifying replacement processes for routine servicing and troubleshooting.
- Precise gas flow regulation: 1/4" connection with .012" orifice for accurate combustion control
- Durably constructed: Made from corrosion-resistant stainless steel for extended service life
- Flat, counter-bored design: Ensures secure fitment and easy installation in commercial appliances
- Compatible with major LP gas equipment: Supports brands like American Permanent Ware and Cecilware
- Facilitates quick maintenance: Simplifies routine gas system adjustments and replacements
Ideal for replacing or calibrating pilot orifices in LP gas kitchen appliances to maintain efficient and safe operation.
APW 2092904 Technical Specs
The APW 2092904 orifice features a stainless steel construction suitable for high-temperature environments with a maximum temperature resistance around typical appliance operating limits. Its dimensions include a height of 0.25 inches, width of 0.25 inches, and depth of 1.5 inches, with a lightweight design at 0.1 lbs for easy handling during installation or replacements. Designed for precision, the orifice has a 1/4" connection size and an orifice diameter of .012". Its flat, counter-bored profile enhances secure fitting and leak-proof performance, compatible with a variety of gas appliances requiring exact fuel flow control. Mounting is straightforward, with cleanability supported by its material and design, ensuring longevity in demanding kitchen environments. Suitable for use with LP gas appliances such as fryers, griddles, and broilers, it ensures consistent ignition and reliable operation.
- Electrical Requirements: Not applicable; suitable for gas applications
- Material: Stainless steel, corrosion-resistant for durability
- Dimensions: 0.25" height, 0.25" width, 1.5" depth
- Connection Size: 1/4" flange
- Orifice Diameter: .012"
- Temperature Resistance: Max safe temperature approximately standard appliance limits
- Weight: 0.1 lbs for ease of installation and replacement
- Compatibility: Supports LP gas appliances across multiple brands
Usage Considerations
- Gas connection setup: Ensure proper 1/4" fitting alignment for secure installation
- Flow calibration: Use with appliances requiring exact orifice sizing for safe operation
- Cleaning routine: Designed for routine inspections and replacements in commercial kitchens
- Compatibility: Confirm application matches orifice specifications before installation
- Positioning: Mount in accessible locations to facilitate maintenance
What is a commercial pilot orifice?
A commercial pilot orifice is a precision component used in gas appliances to regulate fuel flow from the main gas line to the pilot assembly. Typically fabricated from stainless steel or brass, it features a small aperture—such as the .012" diameter of this model—designed to control the flow rate safely and accurately. Installed within LP gas burners, fryers, and griddles, the pilot orifice ensures proper ignition and combustion stability. The APW 2092904 model is suited for high-volume kitchen environments where consistent gas regulation is essential for safety, performance, and compliance with operational standards. Its precise dimensions and durable build make it a reliable choice for routine maintenance or calibration in commercial foodservice operations.
Top low-pressure gas orifices for medium-volume foodservice environments
Designed for commercial kitchen applications, the APW 2092904 low-pressure orifice from AllPoints offers high-precision gas regulation in medium-volume settings like restaurants and institutional cafeterias. Built with durable stainless steel, it ensures consistent performance and long service life in operation. Ideal for appliances with moderate throughput, it supports safe ignition and efficient operation, making it suitable for installation in a variety of LP gas equipment used in foodservice facilities.
- Operation for medium-volume kitchens supports consistent cooking quality
- Compact stainless steel design ideal for limited space appliances
- Supports reliable ignition in commercial LP gas burners
- Durable construction extends service intervals and reduces downtime
- Engineered for safe, precise gas flow regulation in restaurant equipment
