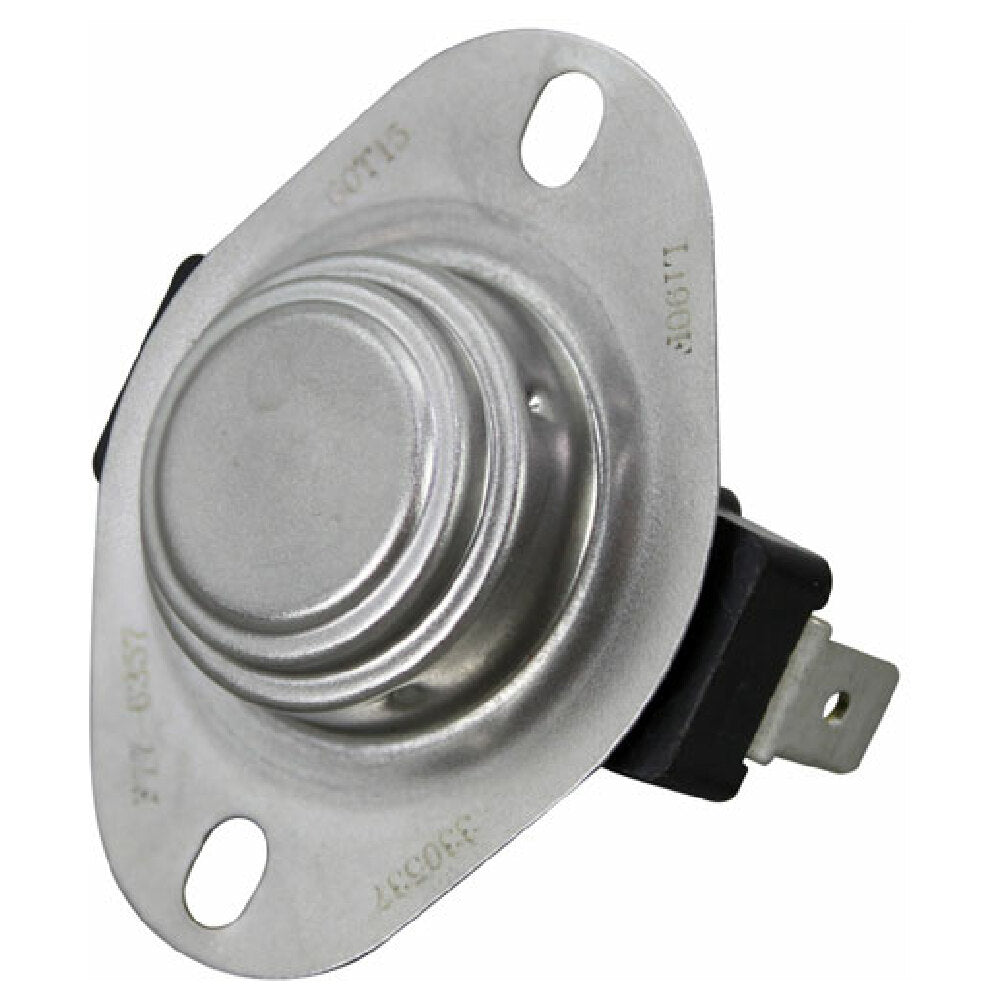

The Star Mfg 200566 Limit Switch is a precision industrial limit switch designed for reliable operation in commercial foodservice environments. This high-quality, manual reset disc type switch features a temperature rating of 190°F, with models equipped with either 180-degree or 90-degree tabs that can be bent to 180 degrees for versatile installation. Constructed with durable materials, it includes a back-mounted manual reset button, and mounts with 1-5/8" hole centers. The switch incorporates two 1/4" tabs for easy electrical connections and a disc diameter of .928 inches, making it suitable for hazardous applications requiring precise temperature cutoff and control in commercial kitchen or processing equipment. Its robust design ensures long-term performance in high-demand settings, providing safety and operational consistency.
Top AllPoints 200566 Features
The Star Mfg 200566 limit switch offers precise temperature control with a durable disc contact rated for 190°F, ideal for integration into commercial cooking or processing systems. Its manual reset feature simplifies maintenance, while high-quality materials ensure long-term durability. The switch’s mounting versatility allows easy installation in tight spaces, reducing workflow disruption. Designed for reliable operation in food manufacturing plants, bakery ovens, and fryer equipment, this switch enhances safety and operational efficiency by providing accurate, dependable cut-off actions at critical temperature thresholds.
- Temperature Rating: Operates reliably up to 190°F for safety applications.
- Durable Disc Construction: .928" diameter for consistent switching performance.
- Easy Installation: 1-5/8" mounting hole centers with bent tabs adaptable to 180°.
- Manual Reset: Back-mounted reset button simplifies maintenance.
- High-Performance Materials: Designed to withstand commercial environment demands with durable components.
Ideal for food processing and commercial cooking equipment requiring precise temperature limits and manual reset control.
Star Mfg 200566 Technical Specs
The Star Mfg 200566 limit switch features a model number 200566 with a compact profile: 1.25" in height, 2.5" wide, and 2" deep, with a light weight of 0.1 lbs. It operates on standard electrical connections with two 1/4" tabs and a manual reset button located on the back. Its construction includes high-quality materials suitable for hazardous, high-temperature environments, with a maximum operating temperature of 190°F. The switch is produced in the United States and designed for installation in commercial kitchen equipment such as fryers, ovens, and toasters. The switch meets safety standards for temperature control applications and features a disc contact with a diameter of .928 inches, providing reliable electrical signaling for safety cutoff points. Since it is non-hazardous, it can be used in a wide range of foodservice equipment, and its sturdy build ensures maintenance-free longevity.
- Electrical Compatibility: Designed for standard voltages with 1/4" terminal connections.
- Construction Material: Made with durable, heat-resistant components suitable for high-temperature environments.
- Dimensions: Width 2.5", Height 1.25", Depth 2".
- Temperature Range: Safe operation up to 190°F, with manual reset for safety compliance.
- Operation Environment: Suitable for continuous use in commercial kitchens, bakeries, and food processing lines.
Electrical Requirements & Installation: Suitable for compatible commercial electrical wiring, mounting on equipment with 1-5/8" hole centers, and clearance for reliable operation.
Maintenance & Durability: Manual reset button allows quick troubleshooting, with materials designed for long-term use in tough environments.
Safety & Performance: Built to ensure precise temperature cut-offs and prevent over-temperature hazards.
Compatibility & Usage: Compatible with various commercial appliances requiring manual safety shutdown.
Operational Suitability: Optimal for equipment operating continuously at elevated temperatures with accurate safety controls.
What is a commercial limit switch?
A commercial limit switch is a safety device used in foodservice and industrial equipment to automatically deactivate machinery when preset temperature limits are exceeded. The Star Mfg 200566 limit switch is a rugged, manual-reset safety switch with a disc contact rated for up to 190°F, typically installed in commercial kitchen appliances, bake ovens, or fryers. It provides a reliable mechanical and electrical means to control operational safety, preventing overheating and equipment damage during continuous operation in food processing and manufacturing environments.
Top commercial limit switches for foodservice safety and control
The Star Mfg 200566 limit switch offers high durability, precise temperature control, and easy integration into commercial kitchen equipment. It is designed for medium workload applications, ideally suited for restaurant equipment, bakery ovens, and food processing lines, ensuring reliable safety shutdown under typical operational conditions. This model from AllPoints AllPoints 200566 provides a robust and dependable component for operational safety in high-temperature environments.
- Operational in medium-demand commercial foodservice kitchens
- Durable construction suitable for continuous use in food processing
- Mechanical manual reset for simplified maintenance
- Precise temperature cutoff for safety compliance
- Compact footprint minimizes installation space requirements
Why Choose AllPoints 200566 ?
AllPoints 200566 limit switch distinguishes itself through a combination of solid construction, reliable manual reset function, and precise temperature control at 190°F. Its proven durability and straightforward installation improve operational efficiency and safety in commercial food equipment. Designed specifically for high-demand environments, this switch offers superior performance compared to standard models, ensuring consistent performance and ease of maintenance.
- Built with high-quality components for long-term reliability
- Compact design suitable for tight installation spaces
- Manual reset simplifies safety procedures
- Rated for 190°F operation, ideal for foodservice equipment
- Versatile mounting with bendable tabs for various configurations
