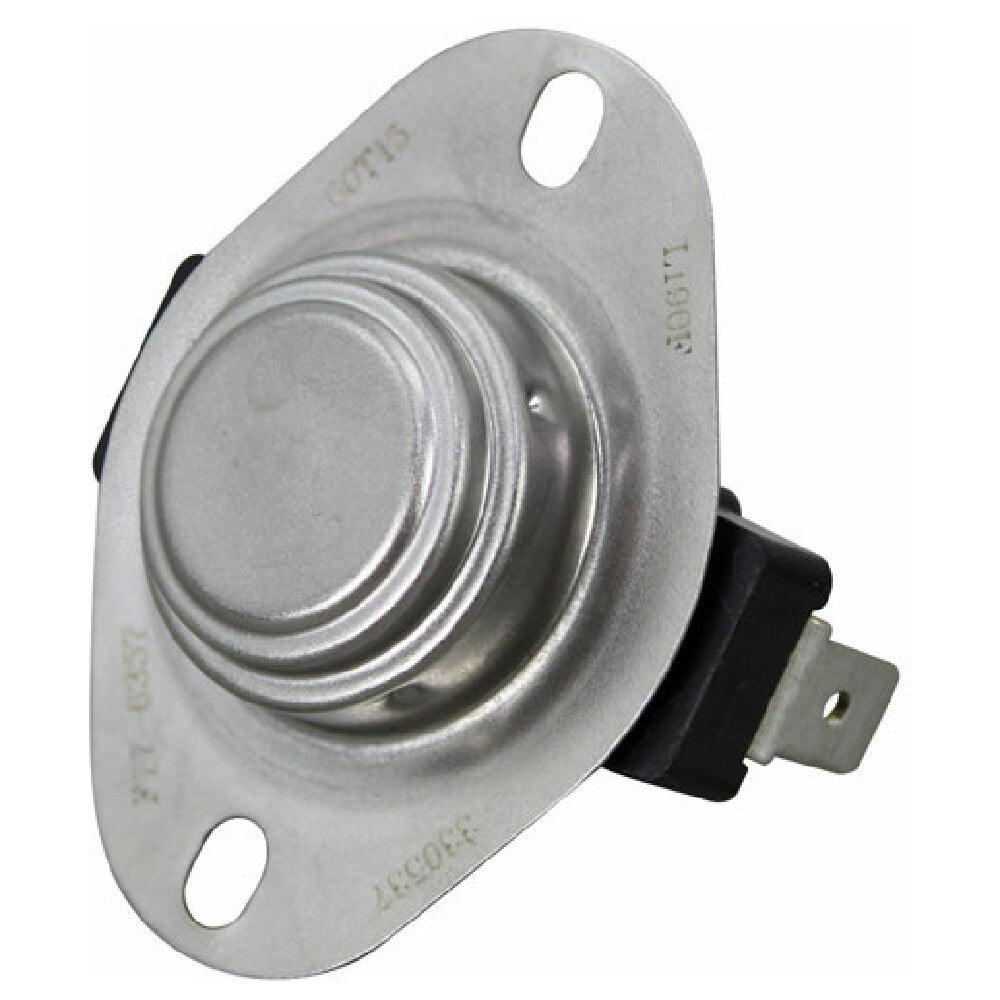

The Holman 200566 Limit Switch is a high-precision, commercial-grade safety component designed for industrial and foodservice equipment applications. As a Type - 60t15 disc limit switch with a manual reset feature, it offers precise temperature control and reliable performance in demanding environments. Rated for a maximum operating temperature of 190°F, this switch employs a durable disc contact mechanism with a .928-inch diameter disc and manual reset button located on the back. Its mounting configuration includes two 1/4" tabs and 2 mounting holes with 1-5/8" center-to-center spacing, ensuring compatibility with a variety of equipment. The switch’s robust design ensures accurate safety shutdowns in commercial kitchen, bakery, and processing machinery, enhancing operational safety and reliability.
Top AllPoints 200566 Features
This limit switch offers precise temperature cessation with a manual reset, featuring an air-cooled, durable disc contact system and sturdy mounting options tailored for industrial foodservice machinery. Its compact design facilitates installation in confined spaces, while the metal construction ensures longevity in high-temperature environments. Designed for easy maintenance, the switch’s reset mechanism and mounting simplicity allow for quick replacements and reliable integration in automated safety circuits. Its 190°F temperature rating and 1-5/8" mounting hole spacing make it suitable for bakery ovens, fryers, and commercial dryers, supporting workflow efficiency and safety standards.
- Precise temperature control: Thermally responsive for safety shutdowns at 190°F.
- Durable disc contact: Ensures longevity in high-temperature industrial environments.
- Easy manual reset: Reset button located on the back for quick safety restoration.
- Compact, mounting-friendly design: 1-5/8" hole centers, 2 mounting holes for versatile installation.
- Corrosion-resistant materials: Withstands food processing and bakery conditions reliably.
Ideal for industrial kitchen equipment, bakery ovens, and commercial food processing lines requiring precise safety cutoffs.
200566 Technical Specs
The Holman 200566 limit switch operates with a maximum ambient temperature of 190°F and is built with high-quality, corrosion-resistant materials typical of commercial safety components. Its electrical requirements are encapsulated within its mechanical design, with mounting specifications of 1-5/8" hole centers and two 1/4" tabs for secure electrical connections. The switch’s construction includes a durable disc contact with a .928" diameter, manufactured in the United States, ensuring consistent function in demanding environments. Its compact dimensions (2.5" wide, 2" depth, 1.25" height) facilitate installation in confined spaces typical of commercial kitchen and processing equipment. Weighing only 0.1 lbs, it offers a lightweight yet sturdy solution for safety automation. Designed for long-term operation, it supports repetitive cycling in high-temperature applications, ensuring operational safety and seamless integration with system controls.
- Electrical Compatibility: Designed to connect reliably with standard control circuits in commercial equipment.
- Mounting Requirements: Mounts using two 1/4" tabs and 1-5/8" hole centers for versatile installation.
- Material Finish: Features durable metal components with corrosion resistance for high-temperature environments.
- Operating Range: Rated for consistent operation up to 190°F ambient temperature.
- Dimensions & Weight: Compact at 2.5" W x 2" D x 1.25" H, weighing 0.1 lbs for easy handling and installation.
- Maintenance & Durability: Mechanical design simplifies resets and prolongs lifespan under frequent cycling.
What is a commercial limit switch
A commercial limit switch is an industrial safety device designed to detect and respond to specific temperature thresholds in foodservice and processing equipment. The Holman 200566 Limit Switch, with its high-precision disc mechanism and manual reset function, is installed to provide controlled shutdowns when temperature limits are exceeded, protecting equipment and preventing hazards. Often used in bakery ovens, fryers, and food processing machinery, this switch plays a key role in automation safety circuits, ensuring reliable operation at temperatures up to 190°F. Its robust construction and mounting flexibility support efficient maintenance and seamless integration into demanding commercial applications.
Top commercial safety limit switches for foodservice environments
The Holman 200566 Limit Switch offers a robust, factory-rated safety feature set ideal for commercial food processing and bakery environments. Its durable disc contact system and manual reset capability provide reliable performance during moderate workloads typical of industrial kitchen operations. Built to withstand high temperatures and continuous use, it is suited for installation in equipment requiring precise temperature safety cutoffs, enhancing process safety and workflow integrity.
- Suitable for moderate throughput foodservice equipment operations
- Constructed with corrosion-resistant materials for kitchen environments
- Provides reliable manual reset for safety compliance
- Compact footprint simplifies installation in confined spaces
- Designed for installation on bakery ovens, fryers, and processing machinery
Why Choose AllPoints 200566 Limit Switch
The AllPoints 200566 limit switch distinguishes itself through a durable, high-temperature-capable design with a manual reset feature that enhances operational safety. Its precise, disc-type contact mechanism ensures reliable shutoff at 190°F, making it a dependable component for commercial kitchen machinery and processing lines. Unlike generic switches, its robust construction supports consistent, long-term performance under demanding industrial conditions, reducing downtime and maintenance requirements.
- Built for reliability: Durable metal components resist wear in demanding environments.
- Optimized for safety: Provides accurate temperature cutoff at 190°F with manual reset.
- Compact, versatile design: Easy to install with 1-5/8" hole center spacing.
- High-temperature performance: Withstands common industrial thermal ranges securely.
- Enhances workflow safety: Critical for equipment protection and process automation.
