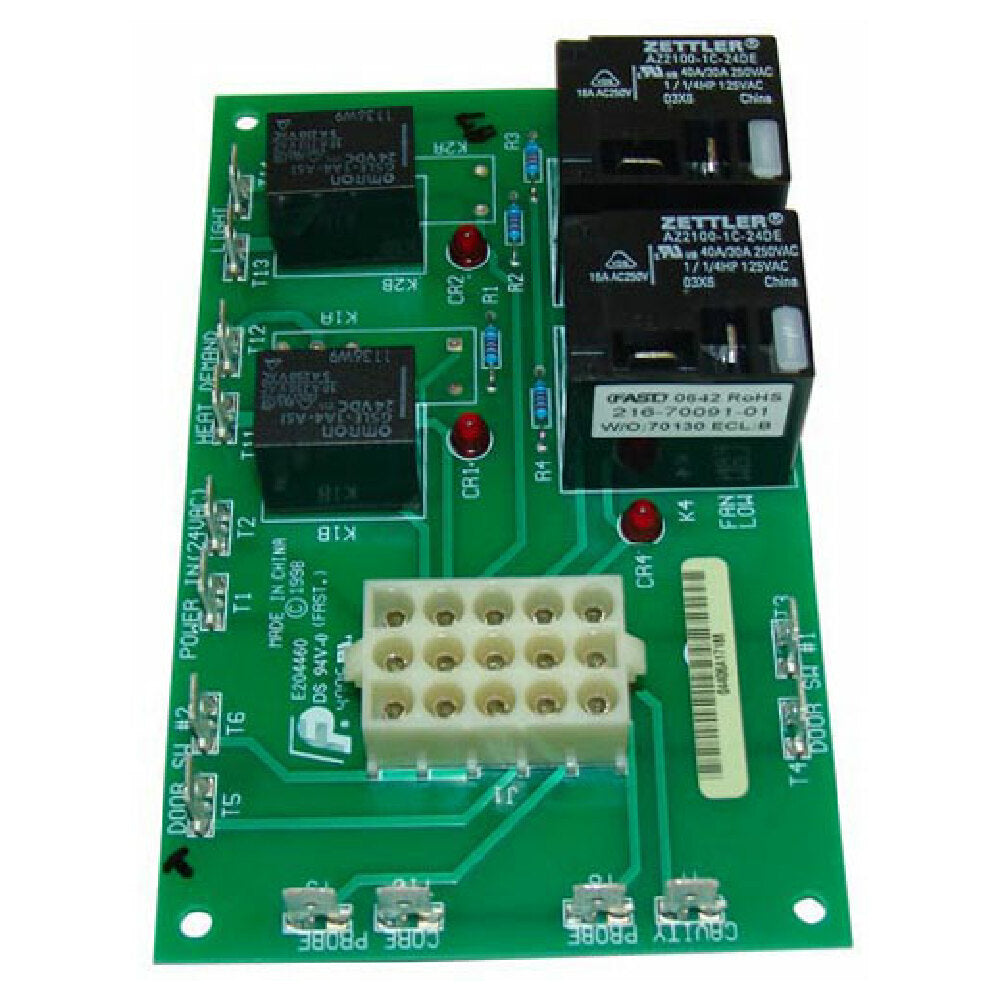

The Garland 1916901 Relay Board 30a 277v is a commercial-grade electrical control component designed for precise power management in professional foodservice equipment. Built by Garland, a recognized manufacturer of high-performance kitchen controls, this relay board features 14 durable tabs, a compact 3-1/2" x 5-1/2" footprint, and a 30-amp current capacity at 277 volts. Its robust construction ensures reliable operation in demanding restaurant or industrial kitchen environments, supporting efficient workflow and system integration for oven and other appliance controls. Engineered to withstand frequent use, it offers seamless electrical switching and diagnostics through four red indicator lights, enhancing maintenance and troubleshooting capabilities.
Top AllPoints 1916901 Features
The Garland 1916901 relay board provides precise electrical control for high-demand commercial ovens and cooking appliances. Its 14-terminal design simplifies wiring and integration, while the durable construction ensures long-term operation in busy kitchen settings. Easy to install and troubleshoot, the relay's red indicator lights offer clear diagnostics, reducing downtime. Its high current capacity supports heavy-duty appliance loads, making it suitable for large-scale foodservice operations, including commercial cooking lines and conveyor systems.
- Electrical performance: 277v voltage, 30amp rated for heavy loads
- Durable materials: High-quality electrical components withstand frequent use
- Ease of maintenance: Four red indicator lights facilitate quick diagnostics
- Compatibility: Fits Garland oven control systems including Mco-gs and Gd-10 models
- Compact design: 3-1/2" x 5-1/2" board for space-constrained installations
Ideal for replacing or upgrading relay controls in commercial kitchen equipment requiring reliable electrical switching.
1916901 Technical Specs
The Garland 1916901 relay board operates on a 277-volt AC power supply with a maximum current rating of 30 amps, supporting high-current switching requirements typical in commercial ovens and industrial kitchen systems. Its air-cooled design ensures heat dissipation during extended operation, while the sturdy metal construction provides durability against daily wear. Measuring 3.5 inches wide, 5.5 inches deep, and 1.25 inches high, it weighs just 0.3 pounds, making it suitable for easy mounting within control panels. The relay board features 14 tabs for flexible wiring options and includes four red LEDs to indicate operational status, simplifying troubleshooting and system checks. Manufactured in the United States, it is designed for reliable, long-term performance in demanding foodservice environments.
- Electrical requirements: 277V, 30A, 50/60Hz
- Construction: Aluminum-based, corrosion-resistant finish
- Dimensions: 3.5" W x 5.5" D x 1.25" H
- Weight: 0.3 lbs
- Mounting compatibility: Surface-mounted in control panels
- Indicator lights: Four red LEDs for status monitoring
What is a commercial relay board
A commercial relay board is an electrical switching device used to control high-current appliances within industrial or restaurant environments. This component, exemplified by the Garland 1916901 relay board, serves as an interface between control systems and heavy-duty equipment such as ovens and heating units. Installed within control panels, it allows precise remotely controlled power switching, ensuring operational reliability and safety in foodservice facilities. Its rugged design supports frequent use and quick diagnostics, making it suitable for medium-volume kitchen workflows and commercial appliances requiring consistent electrical coordination.
Top Relay Boards for Commercial Kitchen Operations
Designed for medium-volume foodservice settings, the Garland 1916901 relay board from AllPoints offers reliable, high-capacity control for commercial ovens and equipment. Engineered to support operational efficiency, it is ideal for professional kitchen environments with demanding electrical switching needs. Its robust build ensures long-term durability, making it suitable for restaurant and institutional kitchens requiring consistent, safe power management in busy workflows.
- Operation Type — medium-volume commercial cooking applications
- Kitchen Setting — professional restaurant or institutional kitchens
- Foodservice Category — oven control systems and industrial appliances
- Workload Qualifier — moderate throughput, heavy-duty operation
- Use Case — reliable electrical control in high-demand foodservice environments
Why Choose AllPoints 1916901?
The AllPoints Garland 1916901 relay board stands out with its high-current capacity, durable construction, and straightforward installation suited for commercial kitchen applications. Its 14-tab wiring layout and indicator lights enable efficient troubleshooting and system diagnostics, streamlining maintenance routines. Compact yet robust, it provides reliable control for heavy-duty appliances, ensuring operational safety and minimizing downtime compared to standard control components in commercial environments.
- Self-contained design with high-current switching capabilities
- Enhanced durability with corrosion-resistant materials
- Plug-and-play installation reduces setup time
- Supports Garland oven control modules effortlessly
- Optimized for restaurant-ready, compact control panels
