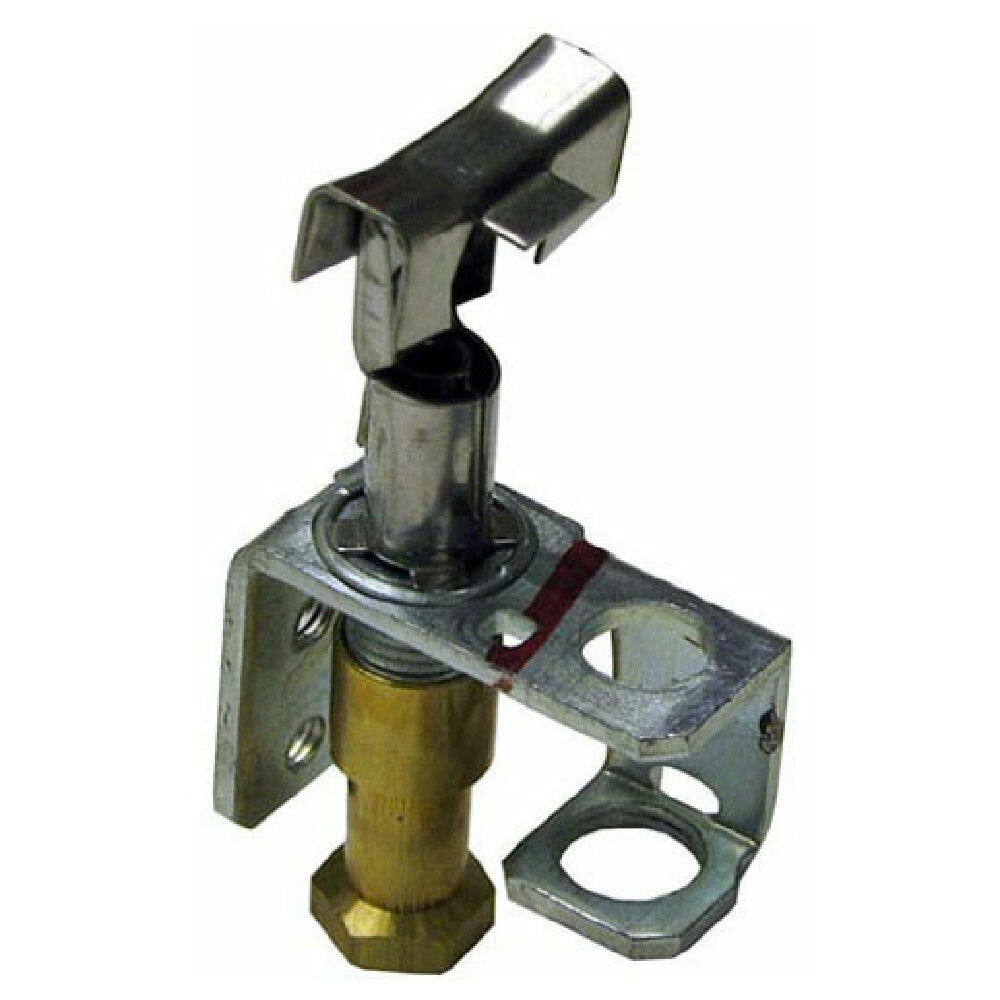

The Garland 1806602 Pilot Burner Assy is a commercial-grade pilot assembly designed for use in foodservice equipment, specifically targeting restaurant kitchens and baking operations that require reliable ignition components. Engineered by Garland, a trusted name in commercial kitchen equipment, this pilot burner assembly features a 6-ch 106 tube size of 1/4" and a flame pattern configured for 3-way operation. It supports multiple oven models including Ir34-40, Ir36-280, Ir48-280, Ir60-280, Ir72-280, Gir36, 36c, 48, and 60, as well as Us Range Uir36, 36c, 48, and 60, providing versatile compatibility for commercial baking and cooking systems. This assembly enhances ignition stability and performance in high-demand environments, making it essential for maintaining operational efficiency in institutional kitchens and large-scale food production facilities. The precise orifice sizes for LP and natural gas, combined with its robust construction, ensure consistent flame regulation and durability under continuous operation.
Top Garland 1806602 Features
The Garland 1806602 Pilot Burner Assy delivers precise ignition control for commercial ovens, with durable steel construction supporting long-term usage. Its 1/4" tube size and 3-way flame pattern facilitate seamless integration into existing gas systems, simplifying installation and maintenance. Designed for high-volume kitchen environments, the assembly ensures dependable flame stability and easy access for routine cleaning. Its compatibility with multiple Garland and US Range oven models makes it suitable for busy foodservice settings requiring reliable pilot solutions. The assembly’s modular design enables straightforward replacement, reducing downtime during servicing.
- Supports 3-way flame pattern for versatile ignition control
- Constructed from durable steel for long-term reliability
- Compact 1/4" tube size eases installation in tight spaces
- Designed for seamless integration with Garland ovens
- Allows straightforward maintenance and quick replacement
Ideal for commercial oven installations needing dependable pilot ignition components
Garland 1806602 Technical Specs
The Garland 1806602 Pilot Burner Assy operates with a standard gas connection suited for commercial kitchen systems, supporting both LP and natural gas configurations. Its primary function is to provide reliable ignition for oven models, including Ir34-40 and Ir36-280, with a tube diameter of 1/4", ensuring optimal flame stability. The assembly features a 3-way flame pattern for versatile operation, with orifices calibrated for precise gas flow—A1098 M-138 for LP and A1099 M-139 for natural gas—each identified by their respective part numbers. The unit’s compact dimensions of 1 inch width, 1.75 inches height, and 3 inches depth facilitate installation in confined space environments, typical of commercial kitchens. Weighing only 0.1 lbs, it offers ease of handling and quick installation. The steel construction guarantees durability under continuous use, while the design supports routine cleaning and maintenance. Suitable for use in high-demand environments, it features compatibility with Garland and US Range oven models, ensuring consistent ignition performance in institutional foodservice operations.
- Electrical Requirements: Gas-powered with no electrical input needed
- Material Construction: Steel for resilience and durability
- Dimensions: 1" W x 1.75" H x 3" D
- Weight: 0.1 lbs; lightweight for easy handling
- Gas Connection: 1/4" tube, supports LP and natural gas configurations
- Compatibility: Fits Garland ovens Ir34-40, Ir36-280, Ir48-280, Ir60-280, Ir72-280, and US Range Uir36 series
- Installation: Requires minimal clearance, straightforward replacement routine
- Operational Range: Optimized for consistent flame performance in commercial bake ovens
What is a commercial pilot burner assembly?
A commercial pilot burner assembly is a critical ignition component used in gas-powered ovens and cooking equipment within foodservice operations. The Garland 1806602 Pilot Burner Assy is engineered for reliable ignition control, employing a robust steel design with a 3-way flame pattern to support multiple oven models. Installed in commercial baking and cooking systems, this assembly ensures consistent flame ignition essential for safe and efficient operation. It is typically used in bakery, restaurant, and institutional kitchen environments where dependable pilot flame stability enhances workflow and operational throughput. Supporting both LP and natural gases and compatible with Garland and US Range oven models, it is an integral part of maintaining continuous, safe, and efficient food production processes.
Top commercial pilot burner assemblies for high-volume foodservice
Designed for high-volume kitchen environments, the Garland 1806602 Pilot Burner Assy provides reliable ignition components suitable for large-scale bakery and oven operations. Its robust construction, versatile flame pattern, and compatibility with multiple oven models support efficient workflow in busy commercial kitchens, ensuring consistent ignition performance without frequent replacement. Ideal for institutional and restaurant foodservice settings, this assembly supports seamless integration and durable operation during continuous use.
- Support for multiple oven models—optimized for large-scale baking
- Compact and durable steel design for long-lasting service
- Supports 3-way flame pattern for versatile ignition control
- Ideal for medium workload environments requiring reliable ignition
- Supports gas configurations for consistent performance in commercial kitchens
Why Choose AllPoints 1806602 ?
The AllPoints 1806602 Pilot Burner Assy stands out with its durable steel construction, precise flame control, and seamless integration with Garland and US Range ovens. Its compact design and reliable performance reduce maintenance frequency in busy commercial kitchens, ensuring safe and consistent ignition. This assembly’s high-quality fabrication delivers long-term operation in demanding environments, making it a preferred choice for foodservice professionals seeking performance and dependability.
- Self-contained, reliable ignition component for commercial ovens
- High-durability steel construction for extended service life
- Supports multiple Garland oven models for versatile application
- Compact size simplifies installation in tight kitchen spaces
- Designed for consistent performance in high-volume environments
