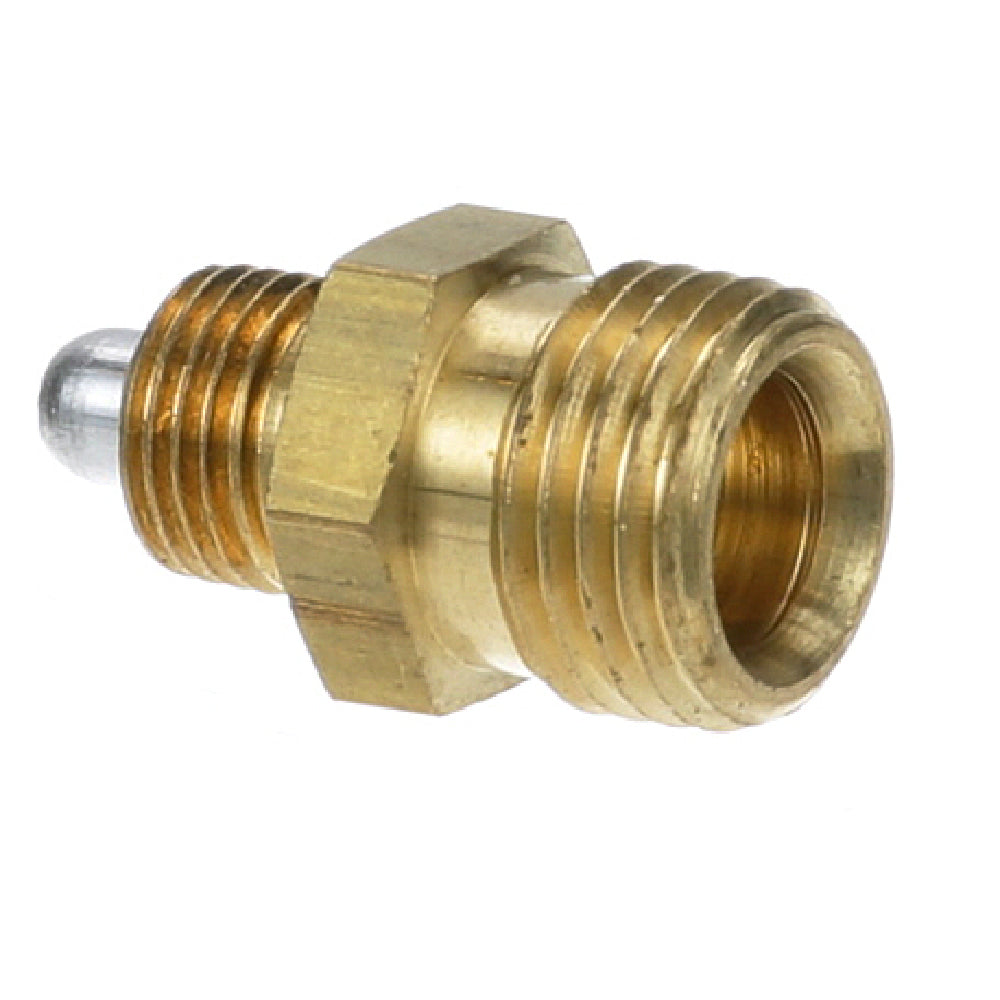

The AllPoints MKE 18-3524 Orifice (lp) 5/16 X 32 #.010 is a precision-engineered pilot orifice designed for commercial fryer applications, specifically supporting the Pg9 pilot systems in Mke Fryers such as the MX14 model. Constructed from durable materials with a .010-inch orifice diameter, this component ensures optimal gas flow regulation, facilitating consistent and reliable operation in high-demand foodservice environments. Its technical specifications include a 5/16-32 thread connection and a 1/4" male connection, making it compatible with various pilot setups used in commercial cooking units. This component addresses the need for precise gas orifice performance, enhancing safety and operational efficiency in professional kitchens focused on fried foods and thermal management systems.
Top AllPoints 18-3524 Features
The AllPoints MKE 18-3524 Orifice is a high-precision part designed for commercial fryer pilots, offering reliable flow control in foodservice installations. It features a .010-inch orifice diameter with corrosion-resistant construction, ensuring durability under frequent maintenance. Its 5/16-32 threaded connection simplifies integration into existing systems, and its compact, metal design minimizes clogging risks during operations. Ideal for use in high-volume restaurant kitchens and industrial food processing lines, this orifice maintains consistent gas flow and enhances safety protocols, reducing downtime during routine servicing.
- Precise .010-inch orifice diameter enhances airflow control
- Corrosion-resistant materials ensure long-term durability
- Compact 5/16-32 threaded connection for straightforward installation
- Designed for high-demand fryer pilot systems in commercial kitchens
- Facilitates maintenance and troubleshooting with standardized fittings
Ideal for professional kitchen equipment requiring precise pilot orifice replacement and maintenance.
AllPoints 18-3524 Technical Specs
The AllPoints MKE 18-3524 Orifice (lp) features a compact, stainless steel body engineered for resilience in high-temperature environments typical of commercial frying operations. Measuring 0.75 inches in depth, 0.31 inches in width and height, and weighing only 0.1 lbs, its dimensions fit seamlessly into existing pilot assemblies. The orifice maintains stable operation within a temperature range conducive to standard kitchen conditions and is intended for use in gas-powered fryers with Pg9 pilot systems. The part’s construction supports easy cleaning and integration, ensuring minimal disruption during routine maintenance. Its material composition and precise dimensions make it compatible with Mke fryers and similar equipment requiring exact gas flow regulation. It has an operating temperature max of approximately 400°F, and is designed to meet the demanding sanitation standards of professional kitchens, with easy disassembly features for cleaning.
- Electrical Requirements: Not applicable, gas-operated
- Construction & Finish: Stainless steel, corrosion-resistant finish
- Dimensions: 0.75" depth x 0.31" width x 0.31" height
- Weight: 0.1 lbs (product only)
- Operating Range: Up to approximately 400°F safe temperature
- Proper installation into Pg9 pilot systems
- Compatible with standard Mke fryer models for precise gas flow
- Replacement for worn or clogged pilot orifices
- Suitable for high-temperature cooking environments
- Requires regular cleaning for optimal performance
What is a commercial pilot orifice
A commercial pilot orifice is a precisely machined component used in gas-fired appliances such as fryers and burners, controlling gas flow to ensure safe and efficient ignition. Installed in pilot systems, this orifice ensures consistent flame size and operation, critical for maintaining proper cooking temperatures and safety standards. The AllPoints MKE 18-3524 Orifice, known for its exact .010-inch diameter and durable construction, is suited for professional-grade foodservice equipment including Mke fryers. Its precise specifications help optimize pilot performance in high-use environments like commercial kitchens, making it essential for reliable and safe operation in mid-volume food preparation settings.
Top commercial gas appliance parts for mid-volume fryers and foodservice settings
This high-quality MKE 18-3524 pilot orifice from AllPoints offers durable, precise gas flow control ideal for commercial kitchen equipment. Suitable for mid-volume installations such as restaurant fryers and industrial food prep lines, it ensures consistent ignition and safety. Its robust design supports efficient operation during continuous high-demand use in professional foodservice environments.
- Operation Type — Suitable for mid-volume commercial fryer systems
- Kitchen Setting — Designed for high-demand restaurant kitchens
- Foodservice Category — Support for frying and thermal cooking appliances
- Workload Qualifier — Optimal airflow regulation for moderate throughput
- Use Case — Replacement part for pilot gas regulation in commercial fryers
Why choose AllPoints 18-3524
The AllPoints MKE 18-3524 Orifice features a precision .010-inch diameter and corrosion-resistant construction, offering superior durability and performance compared to standard alternatives. Its compact, threaded design enables easy installation and maintenance in high-demand commercial fryer applications. Optimized for safety, reliability, and consistent gas flow, this orifice enhances operational efficiency while minimizing downtime during routine service and replacements.
- Self-contained design for reliable pilot system performance
- Manufactured with corrosion-resistant materials for longevity
- Precisely machined for consistent gas flow regulation
- Compact footprint supports space-efficient installations
- Designed specifically for restaurant-grade fryers and commercial kitchens
