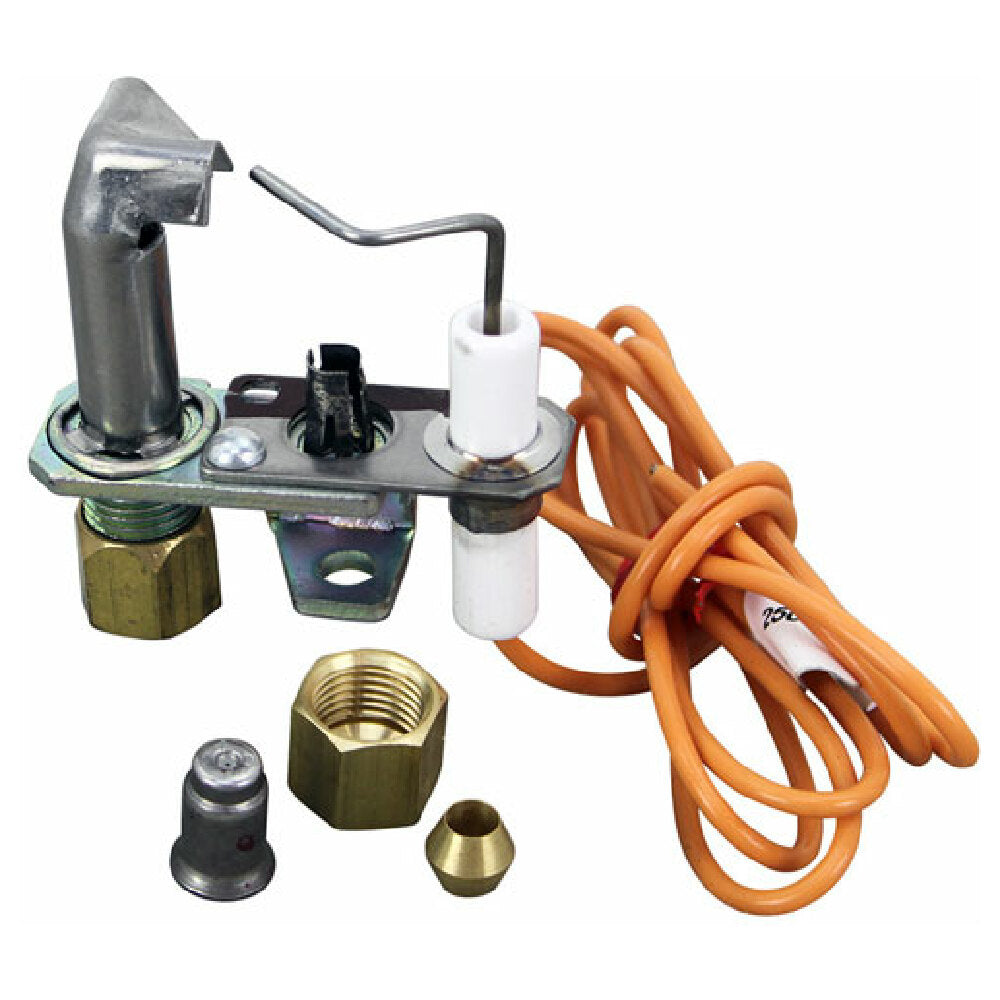

The Garland 1758901 Pilot Assy W/lead is a precision-engineered ignition assembly designed for commercial foodservice equipment, specifically boilers or ovens requiring reliable pilot ignition systems. Manufactured by Garland, this pilot assembly features a factory-installed NAT/LPE pilot with model # 5sl2er 1830-734, incorporating a 3/16-inch tube size and a right flame pattern igniter equipped with a 24-inch wire. It supports both natural gas and LP gas configurations via Orifice # 26-1554, ensuring compatibility across various fuel types. Integral for maintaining consistent ignition performance, it is tailored for use in Garland Eco Ico Tg ovens and US Range Series Cg Performer II convection ovens, providing precise ignition control and operational durability at commercial kitchen standards.
Top Garland 1758901 Features
The ignition assembly offers dependable flame initiation for commercial cooking appliances with durable components, including a corrosion-resistant igniter and high-grade gas orifice compatibility. Its installation supports quick replacement and maintenance, reducing downtime in busy kitchen environments. Designed for seamless integration, it ensures stable flame pattern and ignition reliability, supporting high-demand operations with minimal adjustment. Suitable for oven models requiring precise pilot control, the assembly enhances operational efficiency in professional foodservice kitchens.
- Reliable ignition performance with factory-installed pilot assembly
- Corrosion-resistant components ensuring long-term durability in harsh environments
- Quick-connect wiring simplifies installation and maintenance
- Compatible with LP and natural gas via specified orifice configurations
- Supports precise flame pattern for consistent oven operation
Ideal for multiple oven applications requiring dependable pilot assembly replacement
Garland 1758901 Technical Specs
This pilot assembly features a manufacturer model number 1758901, designed for robustness and compatibility with Garland and US Range convection ovens. It requires minimal electrical requirements beyond standard gas igniter voltage, with its high-quality materials such as corrosion-resistant metals ensuring longevity. The assembly is built for ease of installation, accommodating a tube size of 3/16 inches, and includes a right flame pattern igniter with a 24-inch wire. Its construction supports stable ignition during continuous operation, with the Orifice # 26-1554 supporting precise gas flow, whether using natural gas or LP. The assembly's compact dimensions and lightweight design facilitate straightforward repairs and replacements in commercial kitchen setups.
- Electrical requirements: Compatible with standard pilot ignition systems
- Material construction: High-quality metals for corrosion resistance
- Tube size: 3/16 inches for precise gas flow control
- Pre-wired igniter: 24-inch wire for simplified installation
- Dimensions: Height 0.5 inches, Width 0.88 inches, Depth 3.5 inches
- Weight: 0.3 lbs for easy handling during replacement
- Manufacturing origin: Made in Mexico for quality assurance
- Electrical connection: Requires round post ignition terminal # 85-1063 for integration
- Gas compatibility: Supports natural and LP gas with specified orifice
- Installation clearance: Supports standard spacing for safe operation
- Maintenance routine: Easy disassembly for cleaning and replacement
- Workflow integration: Fits standard pilot burner mounting for quick swaps
What is a commercial pilot assembly
A commercial pilot assembly is a precision component designed to reliably ignite gas burners in professional kitchen equipment such as ovens and ranges. The Garland 1758901 Pilot Assy W/lead is a factory-made ignition system featuring a durable igniter, gas orifice, and wiring compatible with various appliance models. Installed in equipment like Garland Eco Ico Tg ovens and US Range Series Cg Performer II convection ovens, it ensures consistent flame initiation essential for safe and efficient operation. This assembly is suitable for mid-volume foodservice environments where dependable ignition facilitates continuous operation and reduces maintenance downtime.
Top Commercial Pilot Assemblies for Foodservice Operations
Reliable ignition assemblies ensure consistent flame control in professional kitchens, supporting safe and efficient appliance operation. The Garland 1758901 offers durable materials and precise gas flow compatibility for mid-volume foodservice environments. Designed for integration into commercial oven models, it facilitates continuous workflow and reduces maintenance interruptions.
- Operation type — supporting convection oven ignition systems
- Kitchen setting — suitable for cafes and smaller restaurant kitchens
- Foodservice category — ideal for oven ignition systems
- Workload qualifier — best for moderate throughput applications
- Use case — simplifies pilot ignition replacement in commercial cooking
Why Choose AllPoints Garland 1758901
The Garland 1758901 Pilot Assy W/lead offers a reliable, factory-configured ignition solution tailored for commercial kitchen appliances. Its corrosion-resistant design and straightforward wiring support quick replacement and minimized downtime. This assembly's precise gas flow control and compatibility with standard appliance components create an optimized ignition system that enhances operational consistency compared to similar models, simplifying maintenance and improving safety in professional foodservice kitchens.
- Compact footprint supports easy installation in tight spaces
- Factory-installed components ensure consistent performance
- Corrosion-resistant materials extend service life in demanding environments
- Designed for seamless appliance integration with standard gas and wiring configurations
- Supports both natural and LP gas for versatile fuel operation
