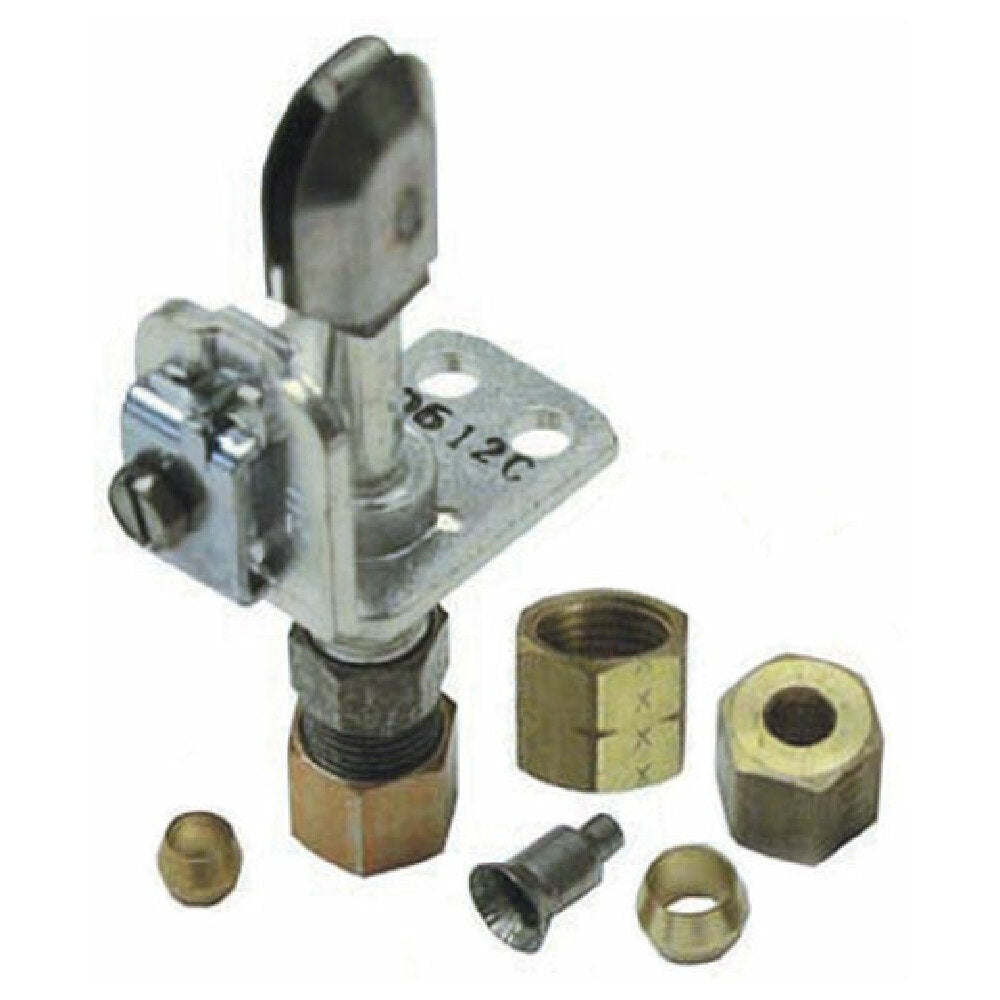

The Franklin Chef 149611 Pilot Kit is a precision gas pilot assembly designed for commercial kitchen applications, specifically aligning with Franklin Chef oven series. Crafted in Mexico, this component features a straight flame pattern and includes both natural and LP gas orifices for versatile use. Its compact dimensions—0.75 inches in height, 1.38 inches in width, and 3.5 inches in depth—ensure seamless integration into bakery and restaurant oven systems, providing reliable ignition for consistent operation. Engineered for durability and precision, this pilot kit is essential for maintaining optimal flame stability in commercial baking environments, offering an exact tube size of 3/16" and 1/4".
Top Franklin Chef 149611 Features
This pilot kit provides precise flame control with a straight flame pattern, optimized for bakery ovens and commercial ranges. Its durable construction ensures consistent performance, with professional-grade components designed for long-term reliability and ease of maintenance. Compatible with Franklin Chef oven series, it supports efficient ignition and flame stability, essential for high-volume baking environments requiring dependable gas control. The inclusion of natural and LP gas orifices enables flexible fuel configuration, improving workflow in diverse commercial kitchen setups.
- Flame pattern: Straight flame for even ignition and flame consistency
- Tube size: 3/16" & 1/4" for versatile gas connection compatibility
- Material grade: Durable, high-quality metal construction for longevity
- Ease of installation: Compact design simplifies integration into oven systems
- Fuel versatility: Includes orifices for natural and LP gas configurations
Designed for professional bakery and commercial oven applications requiring reliable ignition components
Franklin Chef 149611 Technical Specs
The Franklin Chef 149611 Pilot Kit features a compact profile with dimensions of 0.75" x 1.38" x 3.5", and weighs only 0.3 pounds, facilitating straightforward installation in bakery and commercial oven systems. Manufactured from durable materials suitable for high-temperature environments, it supports both natural and LP gas systems with included orifices—#26-1128 for natural gas and #26-1129 for LP gas. Its design ensures stable flame production and ignition reliability, critical for maintaining consistent baking operations in commercial foodservice. The assembly requires no electrical connection, emphasizing gas flow precision and ease of maintenance. Operating within standard airflow and gas pressure parameters, this pilot kit is built to withstand the rigors of frequent use, making it an indispensable component in commercial oven setups.
- Electrical Requirements: Not applicable, designed for gas operation
- Refrigeration Type: NA
- Production Capacity: N/A
- Construction & Finish: Metal with corrosion-resistant coating
- Temperature Resistance: Designed for high-heat environments up to 900°F
- Dimensions: 0.75" height x 1.38" width x 3.5" depth
- Weight: 0.3 lbs
- Technology & Features: Gas-only ignition assembly for consistent flame
- Cleaning & Maintenance: Easy to disassemble for cleaning or part replacement
- Usage Compatibility: Suitable for Franklin Chef oven models; supports natural and LP gas
- Gas connection size: 3/16" and 1/4"
- Installation clearance: Requires proper airflow clearance for safe operation
- Power source: Gas supply with no electrical requirement
- Fuel type compatibility: Naturally aspirated for natural or LP gas
- Operational environment: Fits in oven systems with integrated pilot assemblies
What is a commercial pilot assembly?
A commercial pilot assembly is a critical component in gas-fired cooking equipment, providing a stable ignition source for burners and ovens. Typically constructed from durable metals, it includes a gas inlet, flame port, and orifice connections for natural or liquefied petroleum gas, ensuring consistent flame production during operation. Installed in bakery ovens and other commercial cooking appliances, the Franklin Chef 149611 Pilot Kit enables reliable ignition in high-demand foodservice environments, supporting precise flame control and safety standards for efficient baking processes.
Top gas pilot assemblies for bakery and restaurant ovens
Top commercial gas pilot assemblies provide durable ignition solutions for bakery and restaurant oven setups, facilitating reliable flame production and operational safety. Franklin Chef 149611 Pilot Kit, manufactured by AllPoints, is built with high-quality materials for intermittent use, supporting medium-volume baking workflows in commercial kitchens. Designed for seamless integration and easy maintenance, this gas pilot assembly ensures consistent ignition performance in foodservice operations requiring dependable gas control.
- Operation in bakery ovens — supporting medium throughput production
- Built for commercial kitchen equipment — optimized for bakery environments
- Suitable for oven ignition systems — enhances workflow reliability
- Designed for durable, long-term performance — corrosion-resistant materials
- Compact footprint — simplifying integration into tight oven spaces
