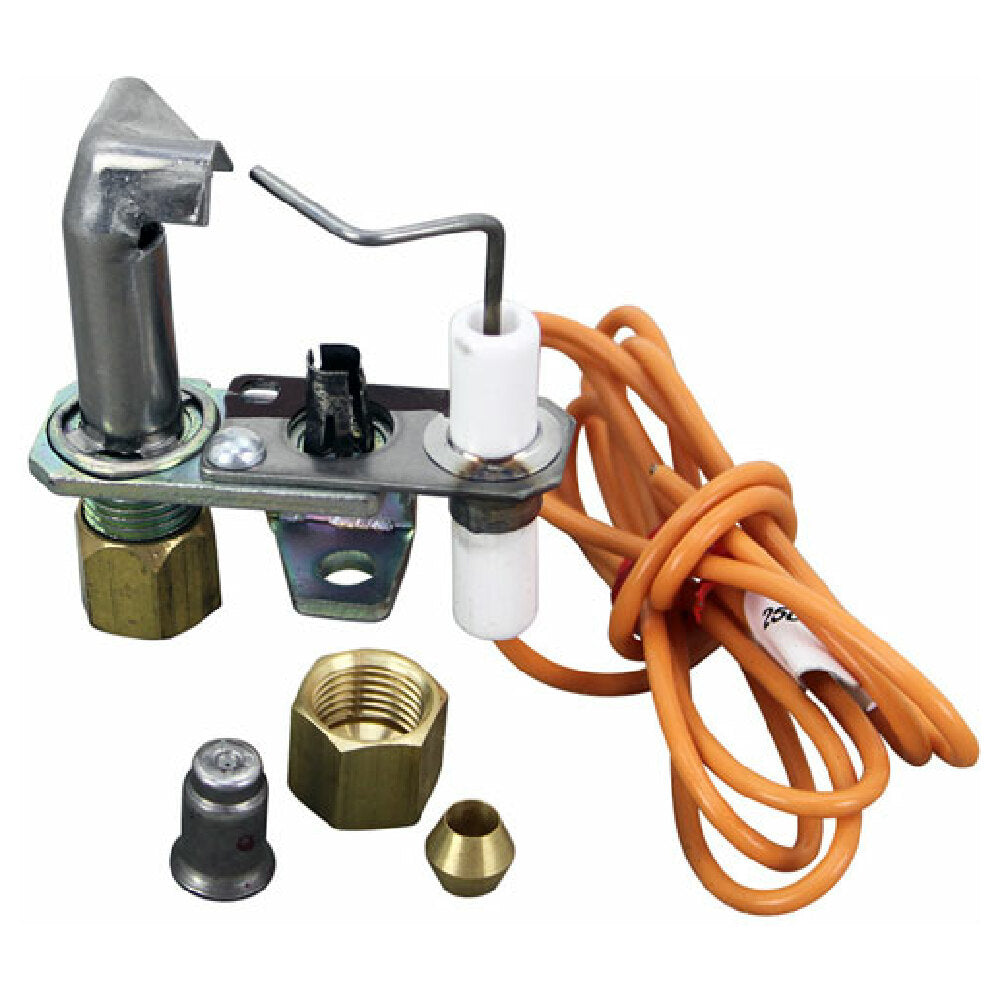

The Garland 1466001 Pilot Assy W/lead is a specialized pilot assembly designed for commercial foodservice equipment, primarily integrated into Garland ovens and convection ovens. It features a compact, robust construction optimized for precise ignition control in NAT and LP applications. The pilot assembly incorporates a right-flame pattern igniter with a 3/16" tube size and includes a 24-inch wire for installation versatility. It uses LP orifices rated at #26-1554 and NAT orifices with the same specification, facilitating seamless fuel compatibility. This unit is essential for ensuring reliable ignition in high-demand cooking environments, especially in commercial kitchen equipment requiring consistent performance and durability under frequent operational cycles.
Top AllPoints 1466001 Features
The Garland 1466001 Pilot Assy W/lead is engineered for precise ignition in commercial ovens, featuring durable components resistant to high heat and corrosion. Its compact, easy-to-install design supports efficient maintenance routines, with robust wiring and fuel orifice compatibility. Suitable for Garland Eco Ico Tg models and US Range Series Cg Performer II ovens, it ensures reliable ignition workflows in mid-volume restaurant kitchens and bakery operations. The assembly’s design promotes operational consistency, reducing downtime and enhancing safety in busy foodservice settings.
- High-performance right flame pattern igniter optimizes ignition reliability in commercial ovens
- Corrosion-resistant materials enhance durability in high-temperature environments
- 24-inch wiring harness simplifies installation and service access
- Fuel compatibility with #26-1554 orifices supports versatile gaseous fuel use
- Compact design aids seamless integration into existing oven assemblies
Designed for professionals seeking dependable pilot solutions in commercial kitchen equipment, particularly in oven ignition systems requiring precision and durability.
Garland 1466001 Technical Specs
The Garland 1466001 Pilot Assy W/lead operates with standard connection requirements fitting commercial kitchen setups. It features a 3/16" tube size and a right flame pattern ignition system that ensures consistent lighting performance. Made in Mexico, it has a slim profile with dimensions of approximately 0.88 inches in width, 3.5 inches in depth, and a height of 0.5 inches, with a weight of 0.3 lbs. Constructed from durable materials suitable for high-temperature environments, it includes a wiring lead that facilitates straightforward installation and maintenance. The assembly is designed for compatibility with Garland Eco Ico Tg models and US Range Series Cg Performer II ovens, providing a reliable ignition source in foodservice operations.
- Electrical Requirements: Not specified; utilizes high-heat compatible wiring and igniter components
- Construction & Finish: Durable, heat-resistant materials with corrosion-proof coating
- Dimensions: Width 0.88", Depth 3.5", Height 0.5"
- Weight: 0.3 lbs (product weight)
- Fuel Compatibility: LP and NAT with orifices #26-1554
- Installation: Requires round post ignition terminal #85-1063 for proper connection
- Electrical Connection: Compatible with standard ignition terminals and wiring harnesses
- Airflow Needs: Suitable for applications with proper ventilation and airflow clearance
- Maintenance Access: Designed for straightforward disassembly and replacement in commercial ovens
- Fuel Supply: Adequate supply line connection for stable fuel delivery
- Environmental Compatibility: Operates reliably within typical kitchen ambient temperatures
What is a commercial pilot assembly?
A commercial pilot assembly is a critical component in gas-powered cooking equipment, designed to ignite the main burner safely and reliably. It consists of an igniter, wiring, and fuel orifice fittings, ensuring consistent ignition performance in high-use environments. The Garland 1466001 Pilot Assy W/lead provides a precise, durable ignition source for Garland and compatible ovens, suitable for mid-volume foodservice settings such as bakeries, cafeterias, and restaurant kitchens where consistent operation and maintenance ease are vital.
Top Pilot Assemblies for Commercial Kitchen Equipment
Reliable igniter solutions like the Garland 1466001 are built for medium-volume foodservice workflows, ensuring consistent ignition in commercial ovens and broilers. AllPoints 1466001 units support efficient operations with durable materials for long-term use, ideal for bakery, catering, and restaurant applications requiring dependable gas ignition. Designed for operation in busy environments, they optimize workflow and minimize downtime for professional kitchen operators.
- Operation Type — supporting oven ignition in busy commercial kitchens
- Kitchen Setting — suitable for compact and standard restaurant environments
- Foodservice Category — ideal for ovens in bakeries and cafeterias
- Workload Qualification — supports moderate throughput in daily operations
- Use Case — ensures consistent ignition for high-demand cooking cycles
Why Choose AllPoints 1466001 Pilot Assy W/lead?
The AllPoints 1466001 Pilot Assy W/lead stands out for its durable construction tailored for high-volume kitchen environments, offering reliable ignition performance in Garland and other compatible ovens. Its optimized design simplifies installation and service, reducing operational interruptions. Unlike standard assemblies, it features corrosion-resistant components, ensuring longevity and consistent operation in demanding commercial settings.
- Self-contained design facilitates quick replacement and maintenance
- Optimized for restaurant-ready gas ignition systems
- Corrosion-resistant materials extend service life
- Compact profile supports seamless integration in tight spaces
- Compatible with high-demand, high-temperature applications
