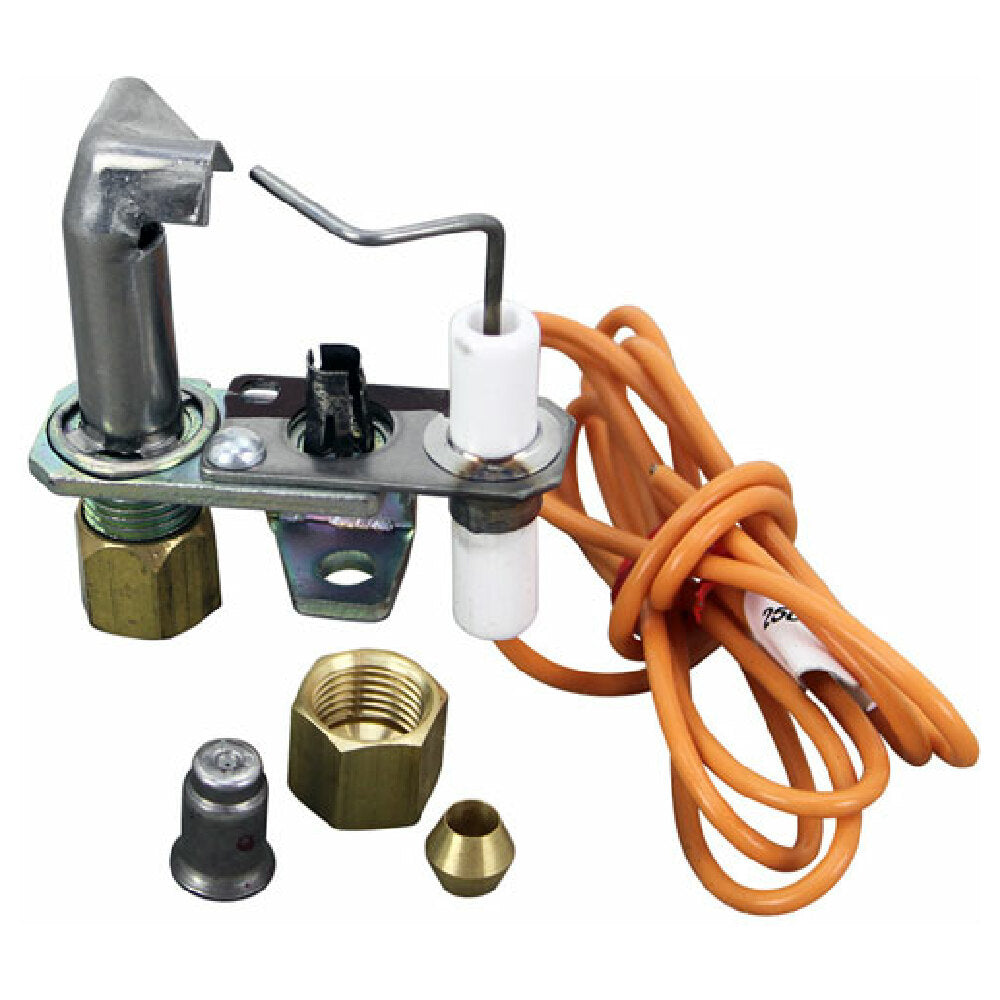

The Garland 1466000 Pilot Assy W/lead is a factory-built pilot assembly designed for commercial kitchen applications, specifically compatible with Garland convection ovens and range series. This pilot assembly features a right-side flame pattern with a flame tube diameter of 3/16", ensuring precise ignition for both natural gas and liquid propane sources. The unit includes a 24-inch wire for dependable ignition and utilizes orifices #26-1554 for both natural gas and propane, streamlining installation and maintenance. Constructed for durability and reliable performance, it incorporates essential components like the round post ignition terminal #85-1063, making it suitable for use with Blue Johnson Control Modules G67aG-3 #44-1267. It is crafted to meet the demanding standards of commercial foodservice environments, ensuring consistent ignition for continuous operation in high-use settings.
Top Garland 1466000 Features
This pilot assembly provides precise ignition control, with a durable construction from high-grade materials designed to withstand frequent use. Its compatibility with Garland Eco Ico Tg and Us Range Series Cg Performer II convection ovens makes it ideal for restaurant kitchens and institutional foodservice facilities. The 3/16" tube size ensures reliable flame patterns, while the 24" wiring allows flexible installation in standard and custom configurations. Designed for quick maintenance, the assembly simplifies replacement of ignition components, reducing downtime and ensuring smooth workflow in busy commercial kitchens.
- Reliable ignition control with a 24-inch wire length for flexible installation
- Constructed from durable materials capable of withstanding high-heat environments
- User-friendly maintenance with easily replaceable ignition components
- Optimized for Garland appliances ensuring accurate flame pattern and consistent ignition
- Compatibility with Blue Johnson Control Modules facilitating seamless integration in multi-component systems
Designed for professional installation in commercial ovens and range equipment to ensure continuous operation and safety.
Garland 1466000 Technical Specs
The Garland 1466000 Pilot Assy W/lead operates with standard natural and propane gas supplies, accommodating both gas types with specified orifices #26-1554. It features a compact profile with dimensions of 0.5 inches in height, 0.88 inches in width, and 3.5 inches in depth, weighing just 0.3 pounds for ease of installation. Made in Mexico, it is constructed from corrosion-resistant materials suitable for clean environments, with an operating temperature capacity suitable for continuous high-heat conditions typical in commercial kitchens. The assembly is designed for straightforward disassembly and replacement, supporting routine maintenance. Its electrical requirements are minimal, relying on a simple ignition circuit, and it’s engineered for long-term durability under high-volume usage scenarios.
- Orifice compatibility: #26-1554 for natural and LP gas
- Dimensions: 0.5" H x 0.88" W x 3.5" D
- Weight: 0.3 lbs (assembly)
- Material construction: High-grade, corrosion-resistant components
- Operating environment: Suitable for continuous operation in commercial kitchen installations
- Installation considerations: Requires minimal clearance, compatible with Garland ranges and ovens
What is a commercial pilot assembly
A commercial pilot assembly is a critical component in gas-fired culinary equipment, providing a reliable ignition source for burners and ovens. The Garland 1466000 Pilot Assy W/lead integrates with existing gas control systems, ensuring safe, efficient ignition in large-scale foodservice operations. Installed in commercial ranges and convection ovens, this assembly delivers consistent flame initiation, supporting high-volume cooking environments where safety and performance are paramount for continuous operation and food safety standards.
Top Commercial Pilot Assembly for high-volume Foodservice Settings
This robust pilot assembly from AllPoints, model 1466000, is designed for precise ignition control in commercial kitchens with moderate to high throughput. Its durable construction suits fast-paced foodservice environments, making it ideal for restaurant ranges, convection ovens, and institutional cooking equipment requiring consistent ignition performance and easy maintenance. Built for reliable operation, it ensures safety and efficiency in high-demand kitchen workflows.
- Operation for gas-fired commercial ovens and ranges
- Suitable for compact commercial kitchen setups
- Ideal for mid-volume restaurant and institutional use
- Supports reliable ignition with durable, corrosion-resistant design
- Facilitates quick replacement to minimize downtime
Why Choose AllPoints 1466000?
The AllPoints 1466000 Pilot Assy W/lead stands out for its durable, high-quality construction and compatibility with Garland gas appliances. Its compact form factor and integration features support streamlined installation and maintenance in diverse commercial foodservice environments. Designed for reliable ignition and long-term performance, it enhances operational efficiency while ensuring safety and system compatibility in busy kitchens.
- Self-contained design simplifies installation and servicing
- Optimized for Garland convection and range series with precise ignition control
- Constructed from corrosion-resistant materials for longevity
- Compact footprint minimizes installation space requirements
- Supports quick replacement reducing kitchen downtime
