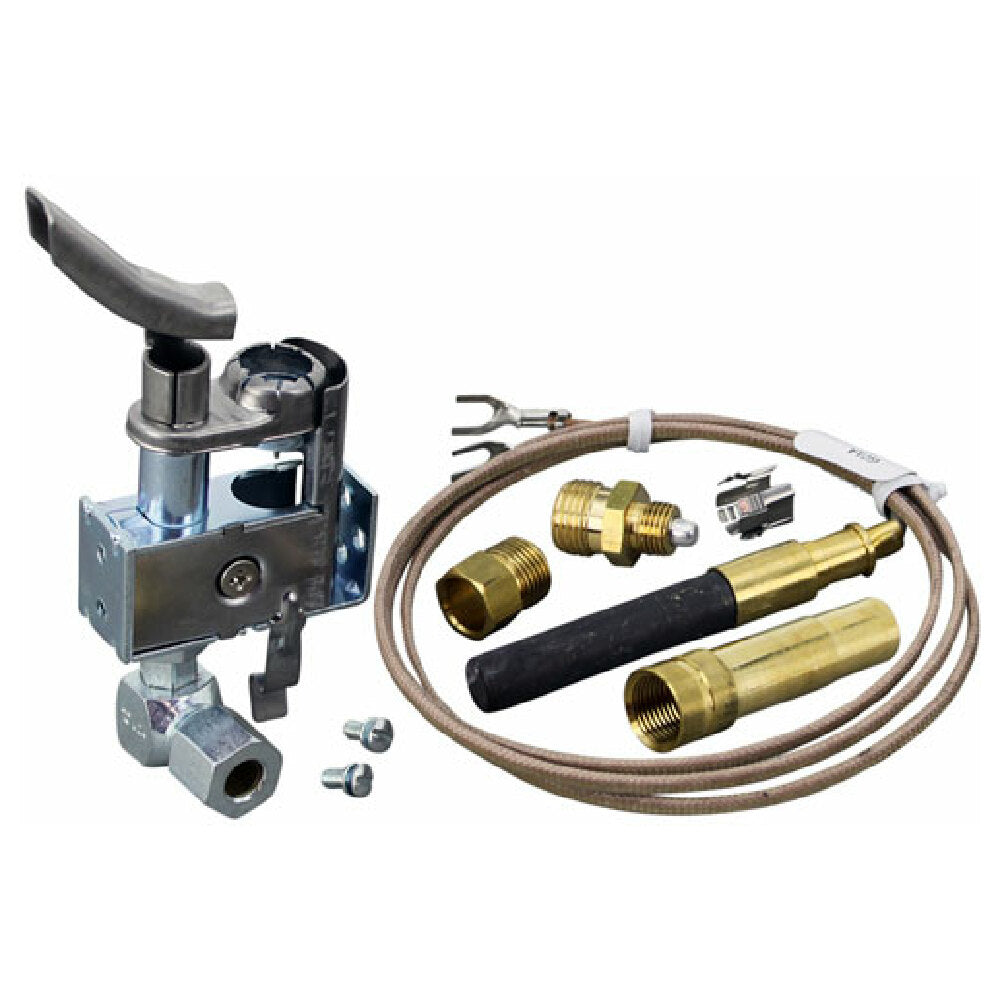

The Franklin Chef 146374 Pilot Generator Assembly is a precisely engineered gas pilot assembly designed for commercial foodservice equipment, particularly in applications requiring reliable ignition systems for nat/lp gas appliances. Manufactured by Franklin Chef, this assembly features a durable 1/4" tube size and is configured with a right flame pattern. It incorporates a PG9 thermopile with a 36" lead wire, ensuring consistent flame sensing and safe operation. Suitable for commercial kitchen installations, it is compatible with appliances utilizing #26-1879 nat orifice and #26-1680 LP orifice, making it ideal for professional foodservice environments that demand durability and precise ignition control in pilot systems.
Top Franklin Chef 146374 Features
The Franklin Chef 146374 Pilot Generator Assembly offers a robust ignition solution tailored to commercial appliance needs. Its high-grade materials ensure longevity under continuous operation, while its integrated thermopile provides reliable flame detection. Designed for straightforward installation and maintenance, this assembly enhances workflow efficiency in busy foodservice kitchens. Perfect for replacing OEM parts or upgrading existing systems, it supports consistent ignition in gas-fired appliances across various foodservice settings.
- Reliable ignition: Ensures stable pilot flame with precise thermopile detection
- Durable construction: Built with premium-grade materials for longevity
- Compact 1/4" tube size: Facilitates easy integration into existing appliances
- Easy to service: Features accessible components for quick maintenance
- Optimized for commercial use: Suitable for high-frequency ignition applications in professional kitchens
Ideal for replacing worn or malfunctioning pilot assemblies in gas appliances.
Franklin Chef 146374 Technical Specs
This pilot generator assembly features a compact design with dimensions of 4" width by 4" depth and a height of 1.5", weighing only 0.3 lbs, making it suitable for confined installation spaces in commercial kitchen equipment. Crafted in Mexico from durable materials, it is non-hazardous and designed for long-term operation. The assembly is compatible with natural and LP gases, utilizing specific orifices (#26-1879 for nat and #26-1680 for LP) for precise gas flow regulation. Its thermopile, fitted with a PG9 connector, ensures accurate flame sensing, while the 36" lead wire allows flexible positioning. The assembly supports typical gas operation voltages, with insulation suited for continuous commercial environment exposure. It requires no special certifications but adheres to safety standards relevant to gas ignition components. The assembly’s construction emphasizes maintenance ease, with accessible mounting features and corrosion-resistant components to withstand harsh kitchen conditions.
- Electrical requirements: Compatible with standard gas ignition systems; no electric connection needed
- Material construction: Premium-grade, corrosion-resistant metals suitable for prolonged use
- Dimensions: 4" W × 4" D × 1.5" H, lightweight for simplified installation
- Weight: 0.3 lbs, facilitating installation and replacement
- Orifice compatibility: Nat (26-1879) and LP (26-1680) for accurate gas flow control
- Lead wire length: 36 inches for flexible positioning to suit various appliance layouts
- Finish: Standard finish suited to industrial-grade gas components
- Electrical compatibility: Utilizes thermopile sensing, no electrical power source required
- Workplace integration: Easily mounts onto commercial gas appliances
- Gas type support: Suitable for natural and LP gas operation
- Installation clearance: Minimal space needed; straightforward mounting process
- Maintenance: Accessible design allows quick inspection and replacement
What is a commercial pilot generator assembly?
A commercial pilot generator assembly is a critical component in gas-fired appliances that provides a reliable ignition source through flame sensing thermopiles. Designed for industrial and foodservice equipment, it supplies consistent sparking and flame detection essential for safe operation. The Franklin Chef 146374 Pilot Generator Assembly, specifically, functions as a durable ignition system part compatible with various commercial gas appliances, installed in equipment such as ovens, fryers, and water heaters. Its robust construction and precise gas orifice control support continuous operation, making it ideal for high-demand kitchen environments where safety and responsiveness are vital.
Top Gas Pilot Generator Assemblies for Commercial Foodservice Settings
Top commercial pilot generator assemblies deliver dependable ignition solutions for mid-volume restaurant and catering kitchens, with Franklin Chef 146374 offering rugged durability and precise gas flow control ideal for continuous operation in professional environments.
- Operation for high-demand restaurant kitchens
- Suitable for compact commercial equipment setups
- Optimized for gas-fired appliances in fast-paced foodservice
- Supports moderate throughput in diverse kitchen workflows
- Enhances safety with reliable flame sensing and ignition
Why Choose Franklin Chef 146374 Pilot Generator Assembly?
The Franklin Chef 146374 Pilot Generator Assembly stands out for its precision engineering, high-grade construction, and compatibility with essential gas orifice configurations. Unlike generic assemblies, it offers exceptional durability, simplified maintenance, and seamless integration into a variety of commercial appliances, ensuring operational efficiency and safety in professional kitchen environments.
- Compact design optimized for space-constrained equipment
- Manufactured with corrosion-resistant materials for longevity
- Reliable thermopile sensing for consistent flame detection
- Designed for quick installation and straightforward servicing
- Supports both natural and LP gas applications for versatility
