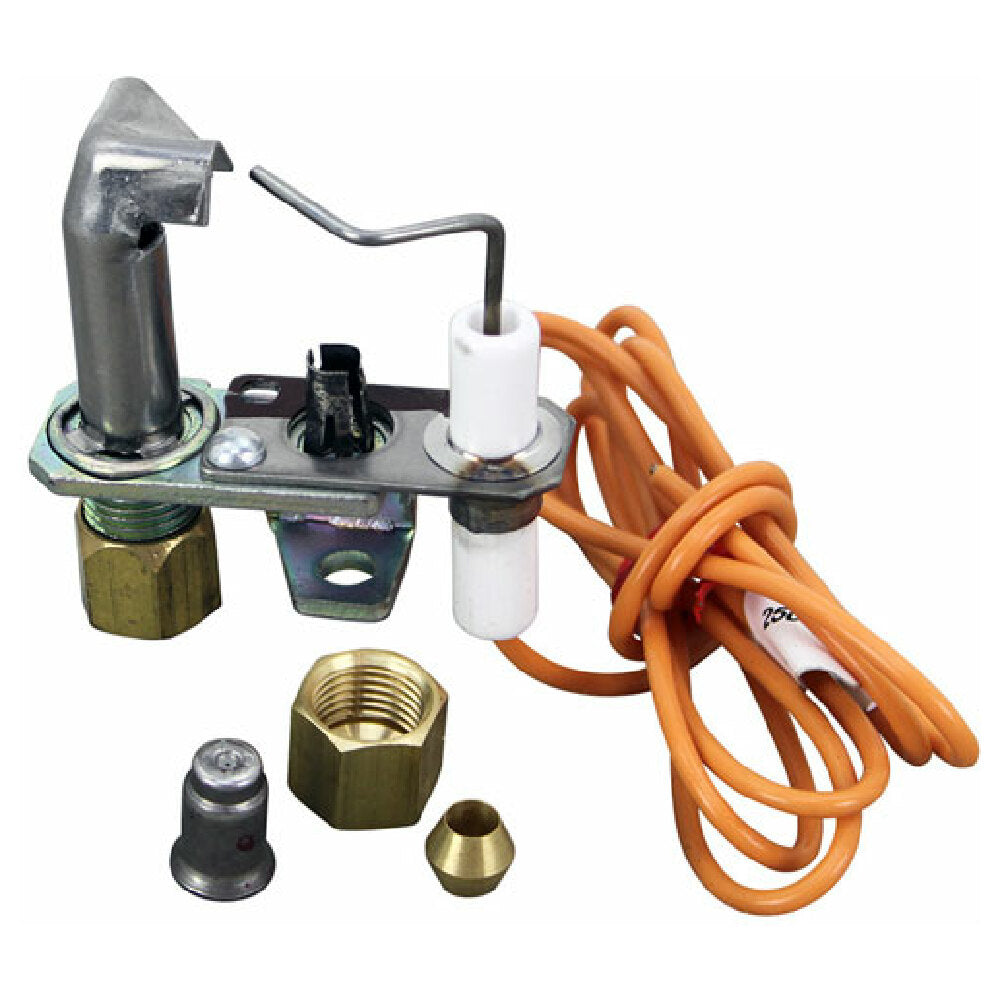

The Garland 1269700 Pilot Assy W/lead is a specialized ignition assembly designed for commercial oven and range applications. Manufactured by Garland, this pilot assembly features a right-pattern flame igniter with a 3/16" tube size and a 24-inch wire lead, optimized for precise flame control in gas appliances. It utilizes a nat/lp pilot factory configuration, compatible with both natural gas and liquid propane systems, and is intended for use with Garland oven models such as Eco Ico Tg and US Range Series Cg Performer II. This pilot assembly provides a reliable ignition solution for medium-volume foodservice equipment, ensuring consistent operation in restaurant and industrial kitchen environments. Its construction and precise specifications support durable performance and simplified maintenance, making it suitable for high-demand commercial cooking operations.
Top Garland 1269700 Features
This pilot assembly delivers a high-performance ignition solution tailored for commercial ranges and ovens. It integrates seamlessly with Garland’s gas systems, featuring durable components designed for prolonged use. The assembly facilitates quick installation and reliable ignition, minimizing downtime in busy kitchen environments, and ensures consistent flame activation for efficient cooking workflows.
- Precise flame pattern: Right-side flame pattern for optimal ignition control
- Durable materials: High-quality components resistant to heat and corrosion
- Ease of maintenance: Simple replacement with standard tools
- Compatibility: Fits Garland Eco Ico Tg and Performer II series ovens
- Technical fit: 3/16" tube size with 24" wiring for flexible installation
Ideal for commercial kitchen technicians seeking a reliable pilot assembly for gas oven ignition.
Garland 1269700 Technical Specs
The Garland 1269700 Pilot Assy W/lead features a compact and robust design with a height of 0.5 inches, width of 0.88 inches, and depth of 3.5 inches. It weighs approximately 0.3 pounds, constructed to withstand high-temperature environments within commercial ovens. The assembly operates on standard gas supplies, supporting both natural gas and LP models, with specifications that ensure consistent ignition performance. The unit is manufactured in Mexico, adhering to strict quality standards for durability and safety. Its construction includes corrosion-resistant materials suitable for frequent cleaning and maintenance. The assembly is designed for straightforward installation, requiring no additional assembly tools beyond standard hand tools, and is compatible with Garland’s existing ignition systems.
- Electrical and gas compatibility: Supports natural gas and LP with standard fittings
- Operational environment: Resistant to high temperatures and corrosion
- Dimensions: Width 0.88", Height 0.5", Depth 3.5"
- Weight: 0.3 lbs for easy handling and installation
- Material construction: High-quality, heat-resistant components from Mexico
What is a commercial pilot assembly
A commercial pilot assembly is a critical component in gas-powered appliances such as ovens, ranges, and boilers, responsible for igniting the main burner via a controlled flame. Specifically, the Garland 1269700 Pilot Assy W/lead is designed for precise ignition in industrial-grade kitchen equipment, facilitating safe, reliable startup of gas appliances in restaurant and foodservice settings. Its robust construction and precise flame pattern make it suitable for continuous operation, installed in devices like Garland Eco Ico Tg and Performer II series ovens, supporting high-volume cooking tasks with consistent performance and minimal maintenance.
Top Appliance for Medium-Volume Foodservice Settings
Designed with durable components, the Garland 1269700 pilot assembly supports reliable ignition in commercial kitchen environments requiring steady operation, such as mid-sized restaurant ranges and ovens. It features a robust build suitable for moderate workload foodservice operations and facilitates efficient workflow with straightforward installation and maintenance, making it a key component for professional culinary equipment.
- Operation for gas ranges and ovens in commercial kitchens
- Suitable for moderate throughput in restaurant settings
- Used in Garland and compatible gas-fired appliances
- Designed for reliable ignition in 24/7 operations
- Optimized for easy replacement and routine servicing
Why Choose AllPoints 1269700?
The AllPoints 1269700 Pilot Assy W/lead stands out for its compact and durable design, tailored for reliable ignition in commercial gas appliances. Its high-quality materials and precise engineering ensure long-lasting performance, minimizing downtime and maintenance costs. Unlike generic alternatives, its compatibility with Garland and similar ovens offers seamless integration in busy kitchen environments, supporting efficient and safe operation.
- Compact form factor: Fits tight installation spaces with ease
- Enhanced durability: Corrosion-resistant, heat-resistant materials
- Universal compatibility: Fits Garland and other commercial gas appliances
- Streamlined installation: Designed for quick replacement with standard tools
- Consistent ignition performance: Supports continuous high-volume operation
