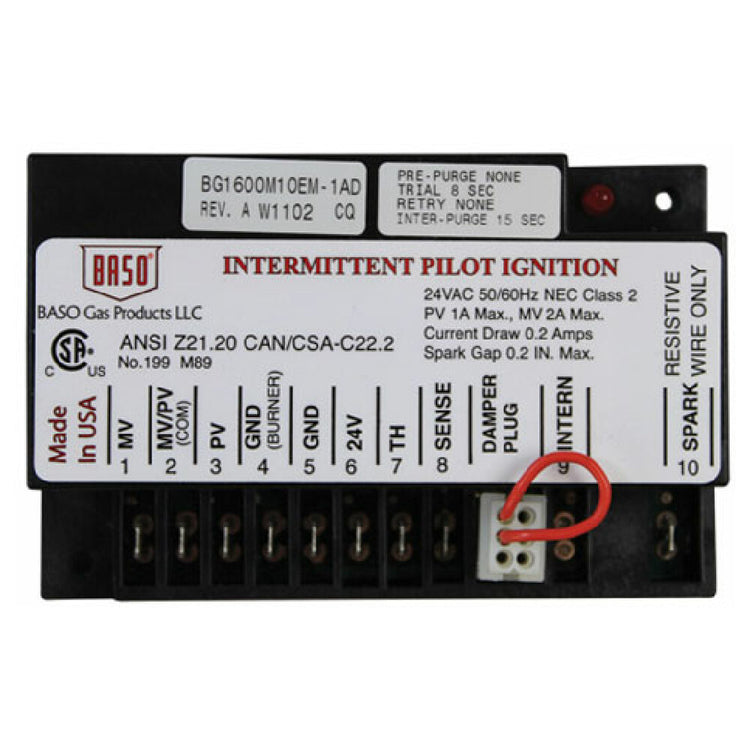

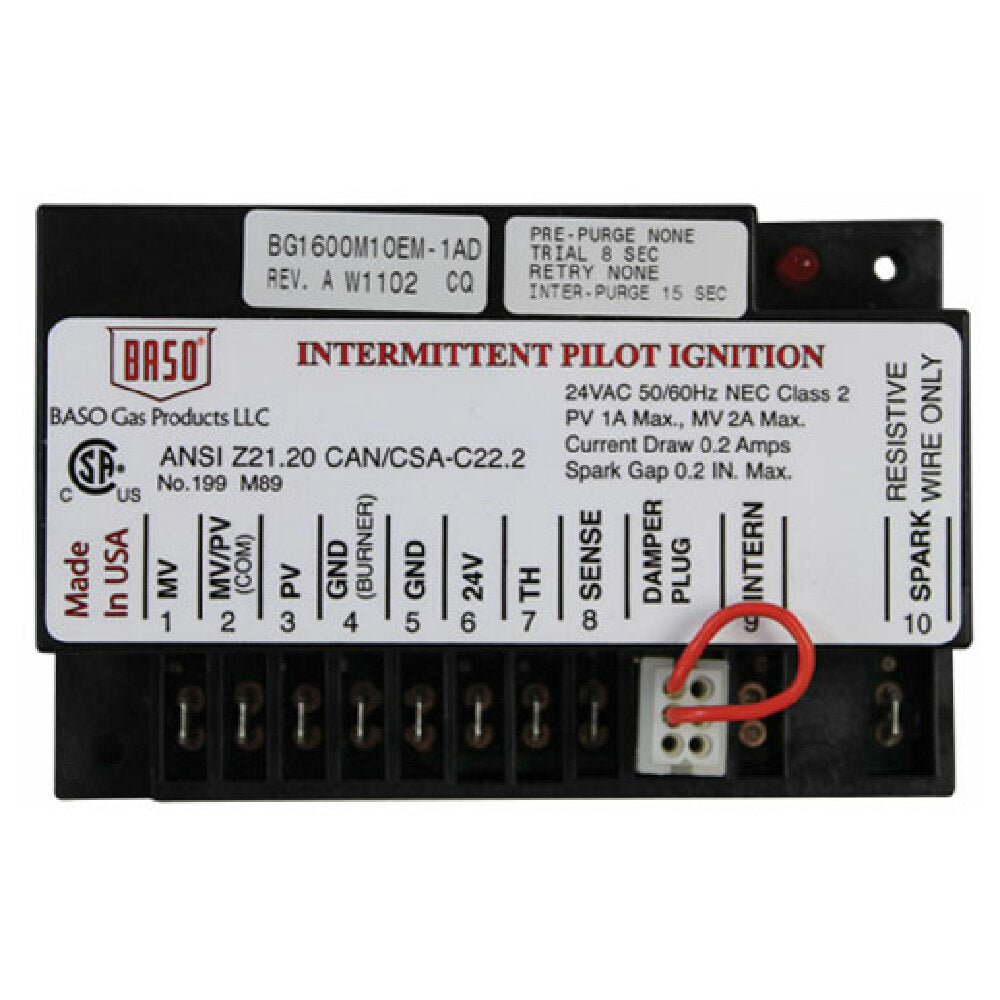

The Garland 1269600 Ignition Control by AllPoints is a critical component in commercial industrial heating systems, specifically designed for operational reliability in foodservice equipment. This intermitten pilot ignition control manages 24VAC systems operating at 50/60Hz, featuring a robust black box design with precise connection terminals. It incorporates a 15-second inter-purge sequence, an 8-second pre-purge, and a no-retry trial period, ensuring safe and efficient burner ignition. With a maximum current draw of 0.2 Amps and a PV load capacity of 1 Amp, this device is engineered for durability and precise control in commercial kitchens and food processing environments. Its specifications support seamless integration with Garland oven systems and other high-demand restaurant equipment, providing dependable ignition management for continuous operation in temperature control systems.
Top AllPoints 1269600 Features
The Garland 1269600 Ignition Control offers a reliable, easy-to-install solution for commercial foodservice applications. It features a durable black enclosure, multiple connection points including Gnd, PV, and Sense Damper Plug, and a simplified wiring setup. Designed for moderate workload environments, this control ensures consistent burner operation with minimal maintenance, tailored for restaurant ovens, baking systems, and industrial cookers requiring precise ignition control. Its compact form integrates seamlessly into existing systems, optimizing workflow and safety in busy commercial kitchens.
- Precise ignition timing with 8-second trial and 15-second inter-purge
- Durable black plastic enclosure rated for harsh kitchen environments
- Simple wiring with 9 terminals including GND, PV, and sense connector
- Engineered for consistent performance in commercial oven systems
- Compact dimensions (4.3" W x 5.5" D x 3.5" H) for easy installation
Designed for installation in industrial cooking and baking equipment, ideal for service and maintenance teams seeking dependable ignition control.
Garland 1269600 Technical Specs
The Garland 1269600 Ignition Control operates on a standard 24V AC power supply at 50/60Hz, with a maximum current draw of 0.2 Amps. It features a self-contained, air-cooled housing constructed from durable materials suited for demanding kitchen environments. The device measures 4.3 inches in width, 5.5 inches in depth, and 3.5 inches in height, with a weight of 1 pound. Its robust design includes connection terminals for PV and MV circuits, Gnd connections for burner safety grounding, and a Sense Damper Plug for system feedback. The unit is designed to withstand typical operating temperatures in commercial kitchen settings, requiring minimal maintenance for long-term reliability. Its construction supports safe, efficient burner ignition and can be integrated with Garland oven models and related systems requiring reliable pilot control.
- Electrical requirements: 24VAC, 50/60Hz supply with 0.2 Amp current draw
- Cooling method: Air-cooled plastic enclosure
- Dimensions: 4.3” W x 5.5” D x 3.5” H
- Construction material: High-grade plastic protector for durability
- Operating temperature range: Suitable for typical kitchen ambient temperatures
- Connection points: 1 Mv, 2 Mv/Pv, 3 Pv, Gnd, and sense damper plug
What is a commercial ignition control
A commercial ignition control is an electronic device used to manage pilot ignition in industrial and restaurant-grade heating equipment. It ensures safe, reliable flame establishment by controlling the ignition sequence, monitoring flame feedback, and managing safety shutoffs. The Garland 1269600 Ignition Control is installed in commercial ovens and cookers, supporting temperature regulation and safe operation during food processing. Designed for precise control, it is suitable for mid-volume kitchen operations requiring consistent flame ignition and system reliability.
Top ignition controls for moderate-volume foodservice settings
The Garland 1269600 Ignition Control is built for reliable performance in moderate workload commercial kitchens. Suitable for industrial oven and boiler systems, it provides consistent ignition management with precise timing and durable construction. AllPoints 1269600 supports efficient operation in restaurant and institutional foodservice environments, ensuring safety and longevity of system components.
- Operation in moderate throughput kitchen environments
- Suitable for compact commercial foodservice spaces
- Designed for installation in oven, boiler, and cooker systems
- Supports medium workload ignition cycles
- Optimized for industrial food preparation equipment use
Why Choose AllPoints 1269600?
Compared to standard ignition modules, the Garland 1269600 offers a rugged black box design with multiple connection points tailored for commercial kitchen use. Its robust construction, ease of wiring, and precise ignition timing enhance operational reliability while reducing maintenance time. The device’s compact footprint allows for seamless integration into existing gas delivery systems, improving system safety and efficiency in busy foodservice environments.
- Self-contained design with durable plastic housing
- Enhanced safety features with multiple grounding connections
- Compact size fitting standard commercial equipment
- Reliable ignition for residential and industrial ovens
- Optimized for consistent performance in restaurant appliances
