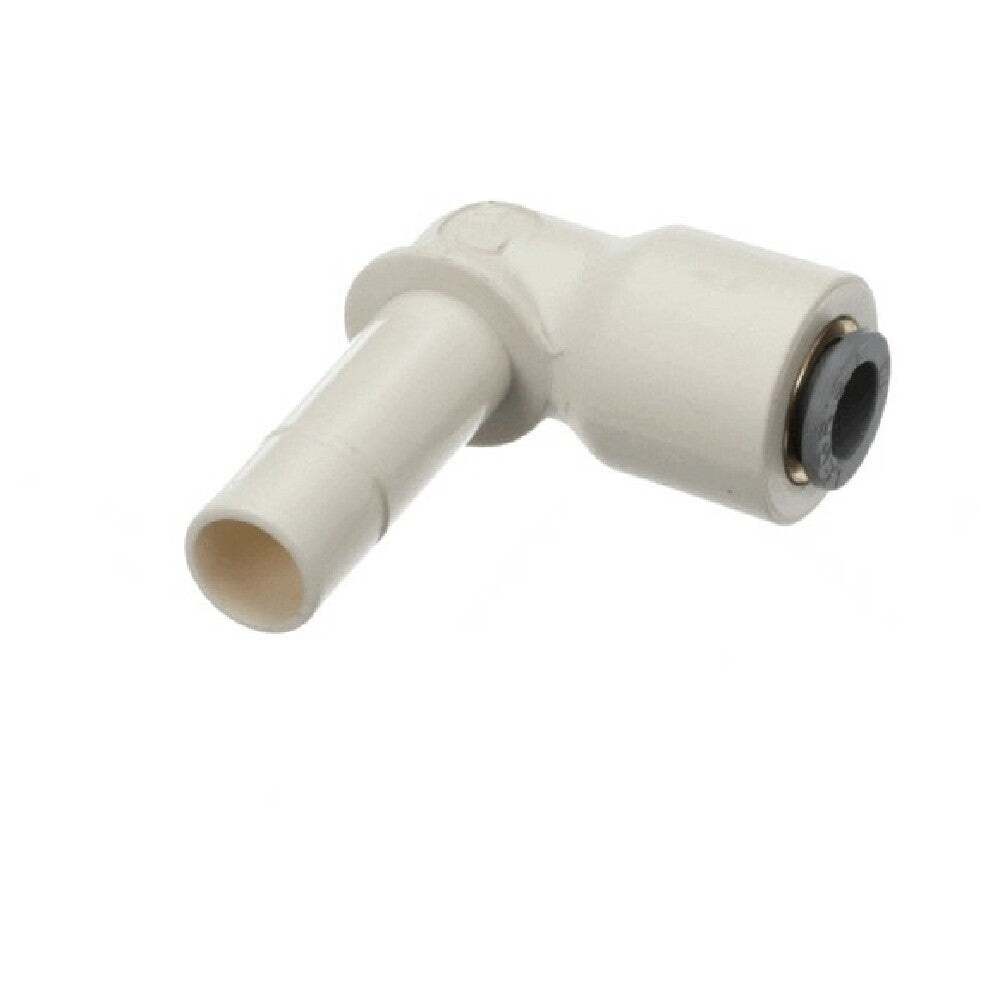

The Concordia Coffee Company 1232-153 Elbow Legris 3/8m X 1/4f is a high-precision pneumatic fitting designed for professional beverage and coffee equipment installations. Manufactured by Concordia Coffee Company, this elbow connector features a 3/8-inch male Legris connection and a 1/4-inch female fitting, enabling secure, leak-free tubing connections in commercial brewing, espresso machines, and piping systems. Its durable construction ensures withstands frequent disassembly, supporting efficient workflow in high-demand coffee and beverage service environments. The precise dimensions and corrosion-resistant materials make it adept at managing compressed air or water lines, promoting reliability in demanding foodservice applications.
Top Concordia 1232-153 Features
This pneumatic elbow fitting is engineered for precise, durable connections in commercial coffee and beverage systems. Its corrosion-resistant Legris components facilitate easy installation and maintenance, reducing downtime. Designed for medium-volume workflows, it offers reliable sealing under regular pressures, and its compact profile simplifies integration in tight water or air tubing routes. The quick-connect system supports efficient setup and servicing, ideal for high-use environments requiring dependable performance.
- Functionality: Facilitates secure air/water tubing connections with 3/8" to 1/4" fittings
- Durability traits: Made from corrosion-resistant, high-strength materials for long-term use
- Ease of maintenance: Quick disconnect design simplifies installation and disassembly
- Application fit: Suitable for coffee machines, beverage systems, and pneumatic controls
- Workflow benefit: Supports seamless plumbing integration with minimal downtime
Ideal for professional coffee equipment setups and beverage lines requiring precise, leak-proof fittings.
Concordia 1232-153 Technical Specs
This OEM pneumatic elbow connector from Concordia Coffee Company offers a compact, reliable solution for high-demand beverage equipment. It features a 3/8-inch male Legris end and a 1/4-inch female connector, with dimensions of approximately 1.2 inches in width, 1.45 inches in depth, and 0.65 inches in height. Weighing just 0.02 lbs, it is constructed from corrosion-resistant materials suitable for constant use with compressed air or water lines. Designed for standard pressure applications, it maintains a secure, leak-proof seal, ensuring operational efficiency. Its simple disassembly allows easy maintenance, while its small footprint helps optimize space in crowded kitchen or bar setups. Suitable for use in environments where durability, reliability, and ease of installation are essential, this fitting supports consistent workflow with minimal interruption.
- Capacity: Handles pressures suitable for beverage and pneumatic systems
- Material: Corrosion-resistant high-strength plastics and metals
- Dimensions: 1.2" W x 1.45" D x 0.65" H
- Weight: 0.02 lbs for lightweight installation
- Operating Range: Designed for standard pneumatic pressure ranges
- Connection Type: 3/8" male Legris, 1/4" female fitting
- Electrical Compatibility: Not electrically active, suitable for pneumatic and water lines
- Plumbing Requirements: Compatible with 3/8" tubing for Legris connections
- Installation Clearances: Needs minimal space for quick wrench or hand fittings
- Maintenance: Disassembly requires simple hand tools for routine checks
- Line Compatibility: Suitable for compressed air and water supply lines
What is a commercial pneumatic elbow fitting?
A commercial pneumatic elbow fitting is a hose connector designed for high-demand beverage, coffee, and pneumatic systems. It provides a secure, leak-proof connection between flexible tubing and equipment, facilitating compact routing of water or air lines in professional coffee shops and foodservice settings. The Concordia Coffee Company 1232-153 model features durable, corrosion-resistant components with a 3/8-inch male Legris and 1/4-inch female fitting, making it well-suited for frequent disassembly, maintenance, and reliable operation in mid-volume coffee equipment installations such as espresso machines, beverage dispense lines, and pneumatic controls. Its robust construction ensures long-term performance in demanding kitchen and bar environments.
Top pneumatic fittings for beverage service environments
Designed for reliable, compact, and leak-proof connections in professional coffee and beverage foodservice settings, the Concordia 1232-153 provides durable, easy-to-install fittings capable of supporting moderate workflow demands. Made for commercial coffee equipment, this model excels in setup flexibility and consistent operation within high-use environments. Concordia 1232-153 offers excellent performance in beverage lines, supporting optimal workflow in busy cafes and commercial kitchens.
- Medium-volume operation — ideal for café and hospitality beverage stations
- Supports pneumatic and water line integration — durable corrosion resistance
- Commercial coffee equipment compatibility — streamlined fit for espresso machines
- Compact footprint — easy installation in tight spaces
- Reliable leak prevention — long-term sealing in frequent-use environments
