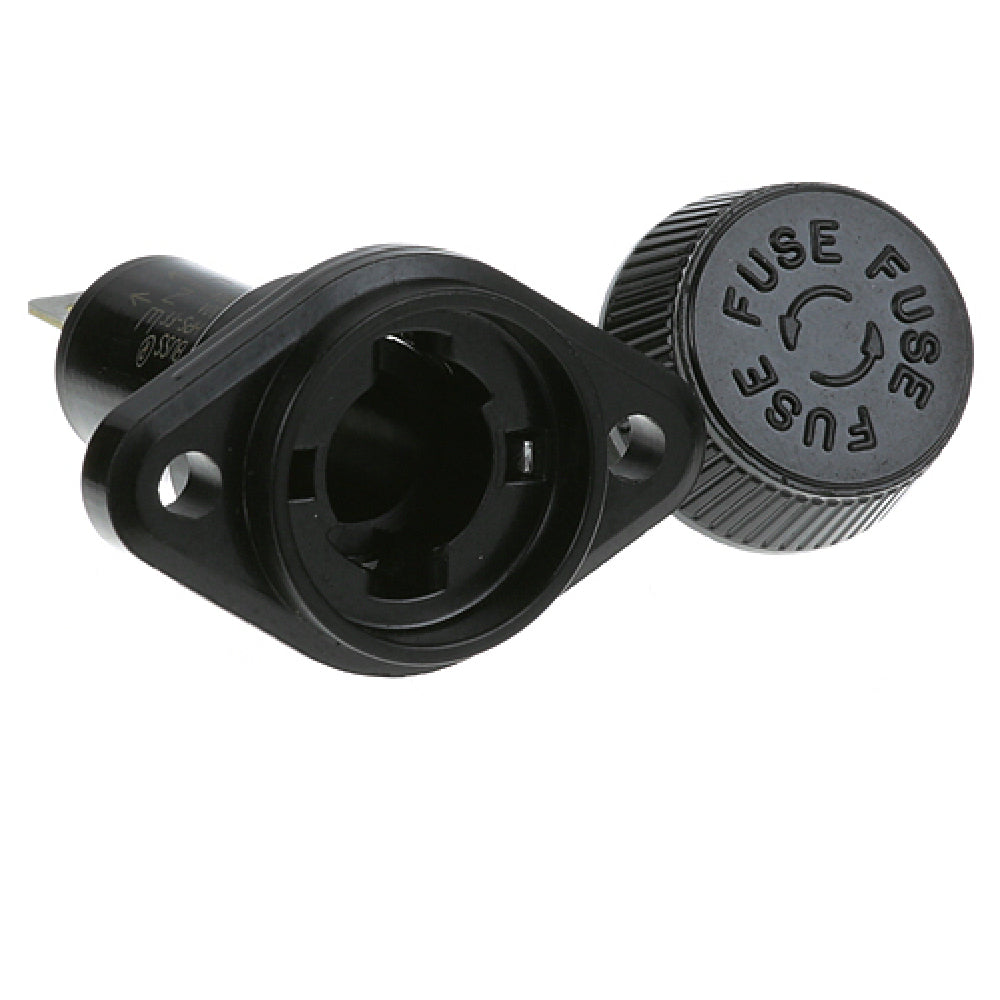

The Garland 1130104 Fuse Holder is a high-efficiency electrical component designed for commercial foodservice environments requiring reliable circuit protection. Manufactured by Garland, this fuse holder supports a maximum current of 30 amps at 600 volts, with precise dimensions of 13/32" x 1 5/8". Engineered with 1/4" tab terminals and a push-turn bayonet cap, it facilitates straightforward panel mounting with a flange mount center distance of 1 5/16". Its construction ensures robust performance in demanding kitchen or equipment applications, integrating seamlessly with fusion protection systems for electric appliances and foodservice machinery requiring precise overcurrent safeguarding.
Top AllPoints 1130104 Features
The Garland 1130104 Fuse Holder offers essential technical advantages for commercial kitchens, such as secure snap-in fuse acceptance compatible with SC 25 and SC 30 fuses, durable metal construction for longevity, and ease of maintenance with accessible push-turn caps. Its panel mount design ensures stable integration into cabinetry or control panels, supporting workflows in dishwashers, refrigeration units, and food prep equipment. Designed for moderate workload environments, it improves circuit reliability and simplifies fuse replacement procedures to reduce downtime.
- Maximum capacity: 30 amp, 600V support ensures circuit protection for high-demand appliances
- Construction material: Rugged metal body grants durability under repetitive maintenance cycles
- User-friendly design: Push-turn bayonet cap enables quick fuse access for repairs or swaps
- Mounting compatibility: Flange mount with 1 5/16" center distance simplifies panel integration
- Operational compatibility: Accepts SC 25 and SC 30 fuses for versatile circuit safeguarding
Suitable for installing in control panels of commercial kitchen equipment, especially where reliable fuse protection and quick access are priorities.
Garland 1130104 Technical Specs
The Garland 1130104 fuse holder is engineered for high-performance circuit protection with specifications supporting 30 amps at 600 volts. Crafted from durable metal with a compact profile of 2" W x 2" D x 2.5" H and weighing only 0.1 lbs, it is designed for easy mounting in commercial foodservice operations. Its construction ensures resistance to corrosion and heat, suitable for installation in environments where reliable electrical performance is critical. The fuse holder supports SC 25 and SC 30 fuses and features a push-turn bayonet cap for straightforward fuse replacement and maintenance. Mounting requires minimal clearance, with flange centers spaced 1 5/16" apart, enabling seamless integration into control panels and fixed appliance enclosures.
- Electrical requirements: 30 amps, 600V; compatible with standard fuse types
- Construction materials: Metal with corrosion-resistant finish for durability
- Dimensions: 2" width, 2" depth, 2.5" height for space-efficient installation
- Weight: 0.1 lbs, facilitating lightweight panel integration
- Mounting method: Flange mounted with 1 5/16" center spacing for secure fit
- Fuse compatibility: Accepts SC 25 and SC 30 fuses for versatile circuit protection
What is a commercial fuse holder?
A commercial fuse holder is an electrical component designed to securely house and support fuses used in various foodservice and industrial appliances. It provides reliable circuit protection by accommodating specific fuse types, such as SC 25 or SC 30, and ensures ease of fuse replacement through accessible bayonet caps. Installed in control panels or equipment enclosures, these fuse holders facilitate safe electrical operation, minimizing downtime and electrical faults in foodservice machinery, refrigeration units, and other high-demand systems.
Top fuse holders for commercial foodservice environments
The Garland 1130104 fuse holder is a robust, panel-mount component suited for moderate workload applications in commercial kitchens, including refrigeration and cooking equipment. Crafted by AllPoints, it ensures precise fuse compatibility, quick access for maintenance, and dependable electrical circuit protection, ideal for upkeep in foodservice settings with consistent operational demands.
- Operation Type — suitable for control panels in commercial kitchens
- Kitchen Setting — ideal for equipment requiring reliable fuse protection
- Foodservice Category — applicable to refrigeration, dishwashers, and cooking appliances
- Workload Qualifier — designed for moderate electrical loads in busy food operations
- Use Case — used for circuit safeguarding and fuse replacement in professional kitchens
Why Choose AllPoints 1130104?
The AllPoints 1130104 fuse holder combines durability, ease of maintenance, and precise fit—features often lacking in standard units. Its metal construction ensures longevity in high-use environments, while the push-turn bayonet offers quick fuse access, reducing downtime during repairs. Compact and reliable, it enhances operational efficiency and safety in commercial kitchen electrical systems.
- Compact footprint optimizes space in control panels
- Self-contained design reduces installation complexity
- Corrosion-resistant materials ensure durability in busy kitchens
- Versatile fuse compatibility supports broad circuit protection needs
- Lightweight construction minimizes mounting strain and facilitates handling
