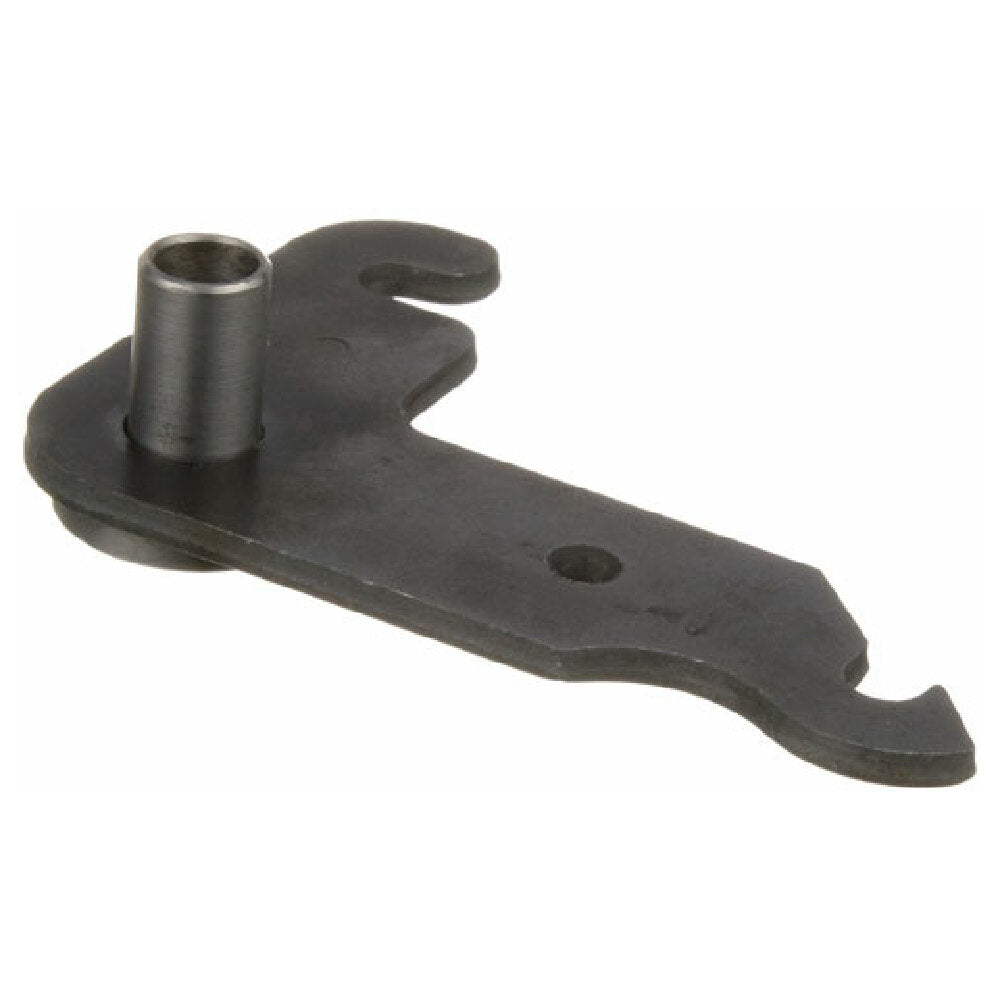

The Garland 1082199 Bell Crank Right is a precision-engineered component designed for commercial oven applications, specifically compatible with Garland oven models 680-2, 684, 686, E684, E686, and numerous M-series variants such as M42r, M43-1rc, and M47-68rc. Manufactured in Taiwan by Garland, this bell crank acts as a critical linkage in oven door mechanisms, ensuring reliable operation of oven door closing and opening functions. Crafted from durable materials with a compact size of 2.75 inches in width, 4.25 inches in depth, and a height of 1 inch, it provides a robust solution for high-demand culinary environments. Its technical specifications—including a weight of 0.4 lbs and straightforward installation—make it suitable for commercial kitchen equipment dedicated to maintaining operational efficiency and service consistency. This component is essential for technicians and maintenance professionals seeking precise replacement parts that uphold the integrity of oven door mechanics, ensuring smooth workflow in professional foodservice settings.
Top AllPoints 1082199 Features
The Garland 1082199 Bell Crank Right features a precision-crafted design with high-grade materials for durability under frequent use. Its straightforward mounting and compatibility with various Garland oven models facilitate quick replacements. Engineered for long-term performance, this part offers easy maintenance, resisting wear and tear in demanding commercial kitchen settings. It’s suited for installations in mid-volume oven operations, ensuring consistent door function essential to efficient restaurant and bakery workflows. Its compact form factor simplifies integration without requiring extensive modifications.
- Improves oven door reliability: engineered for precise linkage in high-use environments
- Constructed from durable materials: resistant to wear for long-term performance
- Easy to install and maintain: compatible with multiple Garland oven models
- Optimized for commercial kitchen workflows: supports uninterrupted oven operation
- Compact, space-efficient design: facilitates straightforward replacement and integration
Ideal for professional repair services and oven maintenance in busy foodservice operations.
Garland 1082199 Technical Specs
The Garland 1082199 Bell Crank Right operates as a non-electrical mechanical component, with a focus on durable metal construction suitable for commercial gastronomy environments. It is manufactured in Taiwan and measures 2.75 inches wide, 4.25 inches deep, and 1 inch high, with a weight of 0.4 lbs. The component is designed for straightforward installation, requiring minimal disassembly, and is compatible with Garland oven models such as 680-2, 684, and various M-series configurations. Its resilient build supports frequent oven door cycles, contributing to consistent operational performance. The part’s precise dimensions and material properties ensure long-term durability in demanding kitchen conditions. It features a simple, reliable linkage mechanism that maintains optimal oven door alignment and function, critical to workflow efficiency. The component is suitable for environments that require rapid replacement and easy maintenance to minimize downtime.
- Dimensions: Width 2.75 inches, Depth 4.25 inches, Height 1 inch
- Material: Metal construction for strength and longevity
- Weight: 0.4 lbs for easy handling and installation
- Compatibility: Garland oven models 680-2, 684, 686, E684, E686, M42r, M43rc, M47-68rc
- Installation: Designed for quick replacement with minimal disassembly
- Origin: Manufactured in Taiwan to industry standards
- Electrical Requirements: None (mechanical linkage component)
- Construction & Finish: Metal with corrosion-resistant finish
- Operating Range: Suitable for normal oven operation cycles
- Food Safety: Material suitable for foodservice environments
- Usage Scenario: Replacement in oven door linkage systems
- Maintenance Needs: Periodic inspection for wear, simple disassembly for replacement
What is a commercial oven bell crank part?
A commercial oven bell crank component is a mechanical linkage used to operate oven doors in professional kitchen equipment. It connects control mechanisms to the door latch, ensuring smooth opening and closing functions. The Garland 1082199 Bell Crank Right, designed specifically for Garland oven models, is a durable, easy-to-install part manufactured from high-quality metals suited for high-volume culinary environments. Its precise dimensions and reliable performance make it an essential replacement for maintenance and repair in commercial kitchens, such as restaurants and catering facilities. This component plays a key role in maintaining operational efficiency by supporting the consistent movement of oven doors in a busy foodservice setting.
Top commercial oven parts for high-volume foodservice operations
Constructed for durability and precision, this Garland 1082199 Bell Crank Right is optimal for oven door mechanisms in medium-use kitchens, including restaurants and institutional facilities. Garland 1082199 offers reliable linkage support, facilitating smooth oven door operations, crucial for high-efficiency food preparation. Designed for professional installation, it ensures consistent performance in demanding environments, making it suitable for oven maintenance in busy commercial foodservice kitchens.
- Medium-duty linkage for reliable oven door operation
- Manufactured with durable metal materials for longevity
- Easy to replace with standard tools and minimal disassembly
- Designed for Garland commercial ovens with wide compatibility
- Supports workflow efficiency by ensuring door smoothness and reliability
