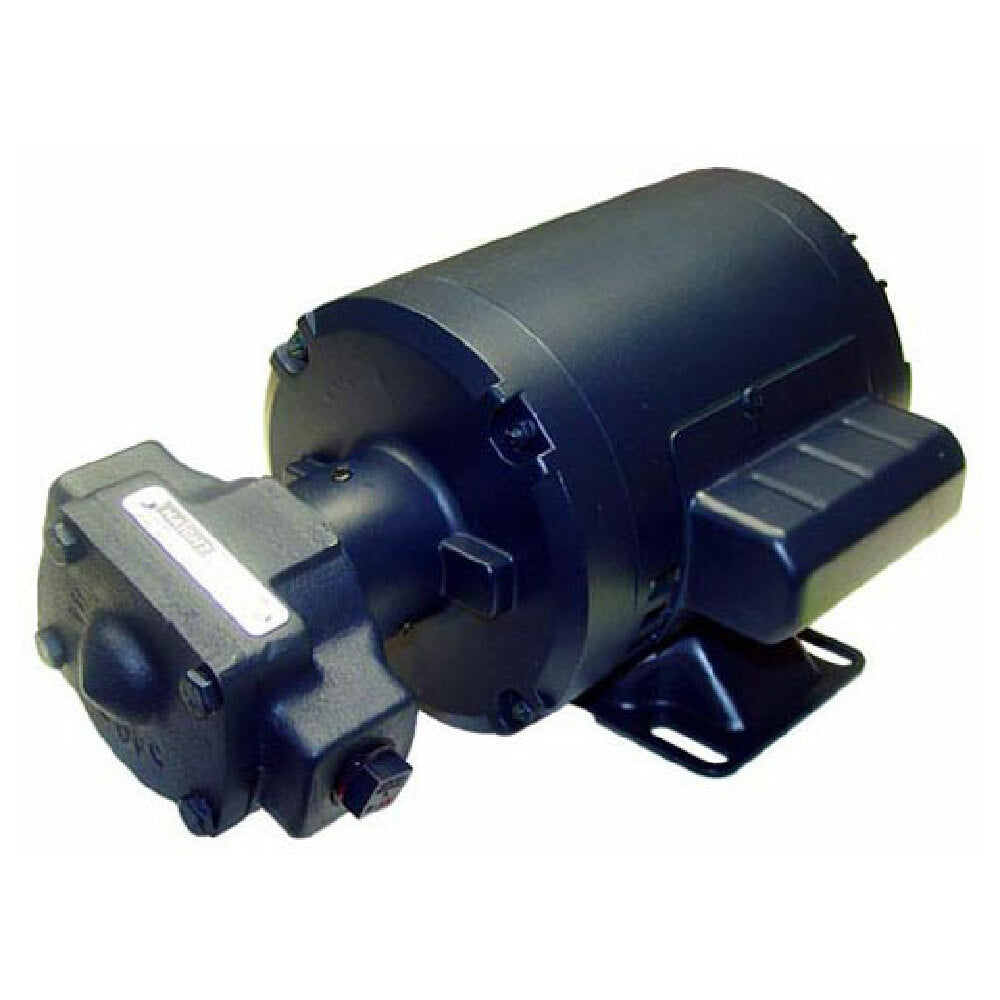

The Broaster 10800 Motor Pump Assy is a commercial-grade pump and motor assembly designed by Broaster for high-performance food processing applications. Engineered with a 1/3 horsepower, single-phase motor operating at 1425/1725 RPM, this assembly features a 1/2" FPT connection and precise mounting centers of 3" x 5". It includes a pump seal #32-1606, with the pump component identified as A3834 B-229, and the motor designated as MB-137. The wiring diagram is located on the inside of the rear cover, facilitating straightforward maintenance and troubleshooting. Built for durability and reliability, this pump assembly ensures consistent fluid transfer in foodservice environments such as commercial fryers, filtration systems, and processing stations, providing accurate flow control with a robust construction suitable for continuous operation.
Top AllPoints 10800 Features
The Broaster 10800 Motor Pump Assy offers precise flow rates suitable for commercial fryers and filtration systems, with a focus on durability via its high-quality motor and pump components. Designed for easy installation, it supports versatile mounting centered on 3" x 5" patterns, and includes essential seals for leak prevention. Its 115V/230V capability allows compatibility with standard electrical systems. Suitable for medium-workload environments, it delivers reliable fluid movement for restaurant or industrial foodservice operations, with straightforward wiring and maintenance access. This assembly ensures efficient workflow integration, reducing downtime in high-demand settings.
- Function and performance: Designed for accurate fluid transfer in commercial fryers and filtration systems
- Durability traits: Constructed with high-grade materials supporting continuous operation
- Ease of use and maintenance: Includes wiring diagram and pump seal for hassle-free servicing
- Real-world fit: Compatible with Broaster fryers and similar food processing equipment
- Workflow benefit: Supports consistent operational flow in foodservice kitchens
Ideal for installation in commercial fryer or filtration systems requiring reliable pump performance.
Broaster 10800 Technical Specs
The Broaster 10800 Motor Pump Assy operates on 115V or 230V, single-phase power, with a current draw aligned with typical industrial pump requirements. It is air-cooled to ensure consistent operation without the need for additional cooling systems. Its construction utilizes durable materials suitable for food processing environments, with dimensions of 7.25" width, 11.5" depth, and 6.5" height, and a shipping weight of approximately 22.3 lbs. The assembly features a 1/3 HP motor capable of 1425/1725 RPM, supporting steady fluid throughput for filtration and fryer applications. Its design emphasizes easy disassembly for cleaning and maintenance, with hardware compatible with standard installations. The pump includes a sealed connection at 1/2" FPT and mounting centers spaced at 3" x 5" for versatile setup. Suitable for continuous operation in commercial kitchens, this pump assembly offers reliable performance and easy integration into existing systems.
- Electrical requirements: 115V or 230V, single-phase, 1/3 HP motor
- Cooling method: Air-cooled
- Construction: Durable materials with stainless-steel mounting components
- Dimensions: 7.25" W x 11.5" D x 6.5" H
- Weight: 22.3 lbs
- Mounting centers: 3" x 5"
- Flow connection: 1/2" FPT
- Wiring inclusion: Wiring diagram located on inside of rear cover
What is a commercial pump assembly?
A commercial pump assembly like the Broaster 10800 is a high-capacity fluid transfer device designed for continuous operation in industrial and foodservice environments. It features a motor and pump integrated for reliable performance in applications such as fryers, filtration, and processing systems. Installed in commercial kitchens, it ensures steady flow and operational efficiency. The assembly’s specifications prioritize durability, ease of maintenance, and compatibility with standard electrical and plumbing setups, making it a vital component for high-demand foodservice operations.
Top commercial pump assemblies for foodservice environments
Built for medium-workload food processing, the Broaster 10800 Motor Pump Assy provides durable operation and seamless workflow integration in fryers and filtration units. Designed by AllPoints, model 10800, it supports reliable fluid movement in commercial kitchen setups, offering a robust construction and easy maintenance for high-volume foodservice facilities.
- Operation in medium-volume foodservice kitchens
- Compact footprint for space-efficient installation
- Designed for durable, long-term performance
- Supports steady workflow in restaurant fryers
- Compatible with standard electrical and plumbing configurations
Why Choose AllPoints 10800?
Compared to similar pump assemblies, the AllPoints 10800 provides a compact, reliable design with straightforward installation and maintenance features. Its durable construction supports continuous operation, and the comprehensive wiring diagram simplifies setup. The assembly’s compatibility with a range of commercial fryer systems enhances operational efficiency, making it ideal for foodservice establishments seeking dependable fluid transfer solutions.
- Compact design optimizes kitchen space utilization
- Built with high-quality materials for longevity
- Supports consistent fluid flow in demanding environments
- Includes essential seals for enhanced leak prevention
- Supports easy maintenance with wiring diagram and mounting ease
