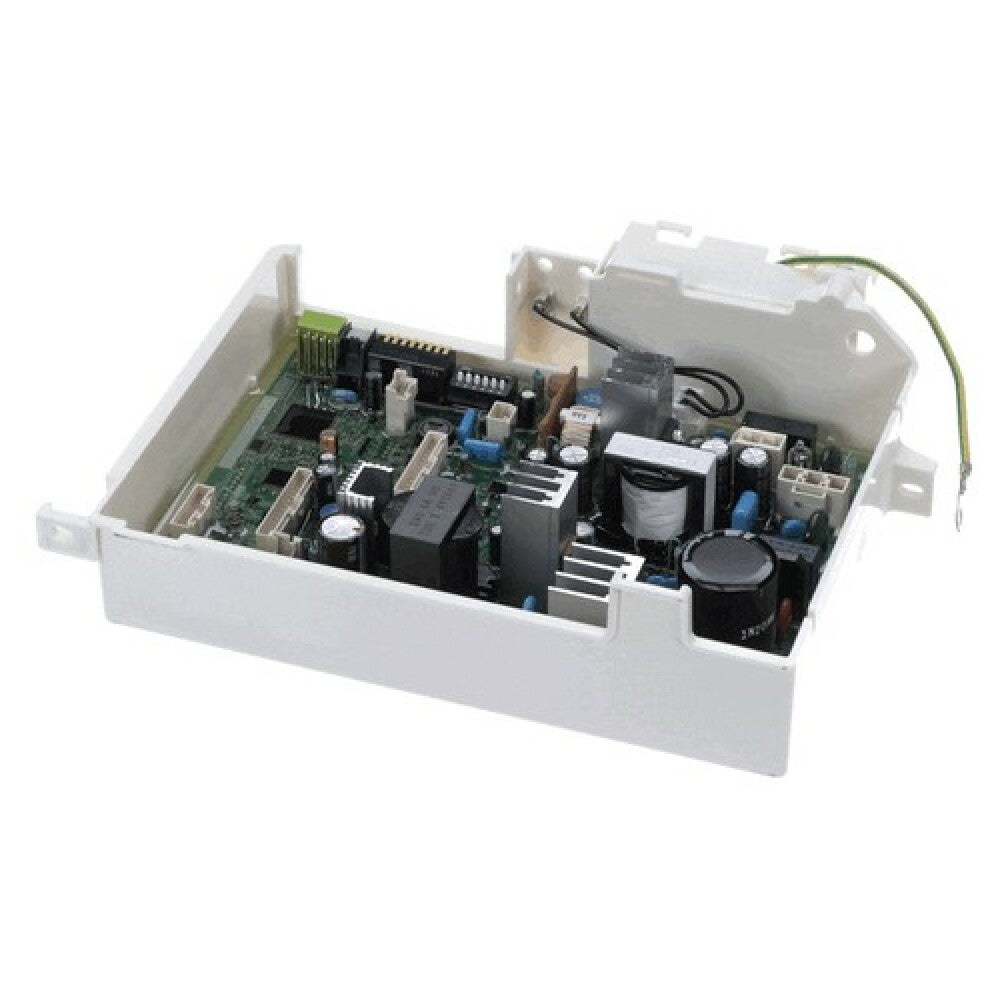

The Rinnai 104000166 Kit Pc Board R75ls is a proprietary circuit board designed for commercial appliance optimizations, specifically within Rinnai heating and hot water systems. As an OEM replacement component, it ensures precise control and reliable operation of the device’s electronic functions. Manufactured with high-grade materials, the PC board features durable construction suitable for demanding environments, offering seamless integration with compatible Rinnai models. Its technical specifications include a model number 104000166, a compact form factor measuring 9.3 inches wide by 9.3 inches deep, and a height of 7.6 inches. This component is vital for troubleshooting and restoring system functionality, providing critical electronic regulation in professional-grade HVAC and water heating applications.
Top Rinnai 104000166 Features
Designed for diagnostic and repair use in commercial heating systems, this OEM PC board facilitates efficient electronic control, with a focus on durability and ease of installation. Its high-quality construction ensures sustained performance in harsh operational settings, while its straightforward replacement process reduces downtime. The compact dimensions support flexible integration within existing Rinnai units, supporting system troubleshooting, calibration, and routine maintenance workflows. Engineered for compatibility across multiple models, it provides long-term reliability and streamlined system management.
- Functionality: Precise electronic control for Rinnai appliances
- Durability: Made from high-grade circuit materials for long-term use
- Ease-of-Maintenance: Simplifies troubleshooting with plug-and-play installation
- Application Fit: Compatible with Rinnai systems in commercial settings
- Workflow Benefit: Streamlines repairs and reduces system downtime
Ideal for maintenance teams and field technicians handling commercial heating system repairs
Rinnai 104000166 Technical Specs
The Rinnai 104000166 Kit Pc Board R75ls operates with a standard electronic architecture designed for reliable integration into commercial water heating and HVAC systems, with a typical voltage input tailored to system requirements. The circuit board features dimensions of 9.3" W x 9.3" D and a height of 7.6", constructed from durable, heat-resistant materials suitable for commercial environments. Its design supports straightforward installation and maintenance, with precise control capabilities for system regulation. It does not include hazardous materials and complies with industry safety standards. The component's weight is approximately 2.22 lbs, with a standard OEM form factor engineered for retrofit and OEM replacement scenarios. It is not water-cooled, with a focus on air-cooled operation within sealed appliance environments.
- Electrical Requirements: Compatible with system voltage and phase specifications
- Construction: High-density electronic circuit board with robust plastic housing
- Dimensions: 9.3 inches width, 9.3 inches depth, 7.6 inches height
- Weight: 2.22 lbs for installation ease and handling
- Material Safety: Made from non-hazardous, heat-resistant materials suitable for continuous operation
- Compatibility: Fits specific Rinnai appliance models for OEM replacement
- Cleaning & Maintenance: Support for straightforward inspection and replacement
- Installation Requirements: Requires standard electrical setup and proper airflow clearance
What is a commercial circuit control board?
A commercial circuit control board is a critical electronic component used to regulate and control appliance functions within professional-grade heating and water systems. The Rinnai 104000166 Kit Pc Board R75ls serves as a replacement control device designed for precise operation and system diagnostics in large-scale commercial environments. Installed in Rinnai heating units, it manages system logic, safety features, and communication with other components. Its robust construction supports prolonged use in demanding conditions, making it ideal for maintenance and repair in commercial water heating and HVAC systems supporting high-demand applications.
Top Commercial Control Boards for Medium-Volume Rinnai Systems
Medium-volume commercial control boards guarantee reliable electronic regulation in professional HVAC or water heating systems. AllPoints 104000166 provides high durability, precise control, and OEM compatibility, suitable for applications requiring consistent operation in commercial environments. Designed for maintenance and troubleshooting, these boards support operational efficiency in commercial water and heating systems, such as in hospitality, institutional, or industrial settings.
- Operation Type — suited for commercial HVAC and water heating
- Kitchen Setting — ideal for compact commercial spaces and service points
- Foodservice Category — relevant for large-scale water heating units
- Workload Qualifier — supports moderate throughput and system loads
- Use Case — facilitates system troubleshooting and routine maintenance
Why Choose AllPoints 104000166?
The AllPoints 104000166 Kit Pc Board R75ls distinguishes itself through OEM-grade build quality, ensuring reliability in demanding commercial environments. Its design supports quick replacement with minimal downtime, complementing existing Rinnai systems. Features like robust construction, precise control, and compatibility with multiple models set this control board apart from generic alternatives, enhancing operational efficiency and system longevity.
- Self-contained design for streamlined installation and maintenance
- Enhanced durability with high-quality circuit materials
- Compact footprint supports flexible integration in tight spaces
- Optimized for reliable operation in commercial water and HVAC systems
- Designed for precise electronic regulation and troubleshooting
