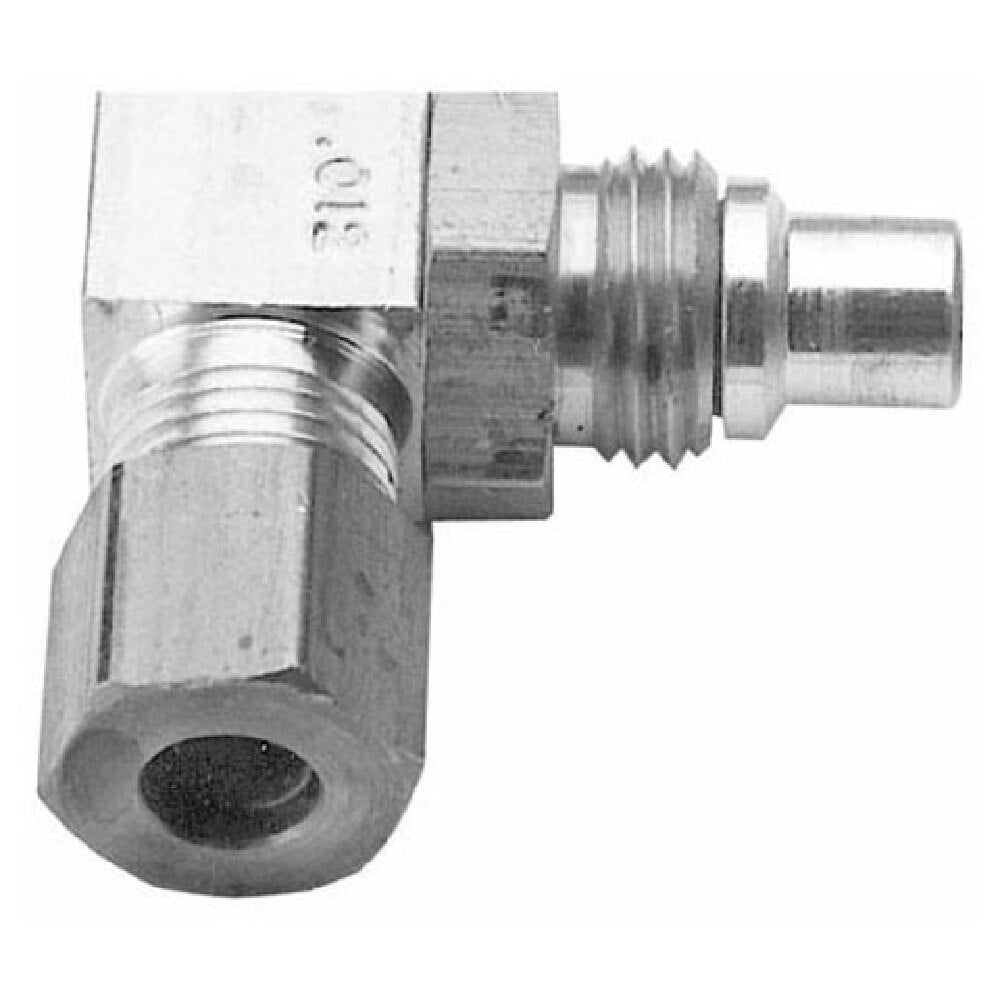

The Garland 1038520 Orifice Fitting is a precision OEM component designed for natural and propane pilot burner applications within commercial kitchen equipment. Engineered by Garland, a reputable manufacturer of industrial-grade components, this orifice fitting features a .020-inch opening suitable for specific pilot combustion systems. It serves as a critical element in ensuring accurate fuel flow regulation in pilot burners, especially in settings requiring reliable performance and consistent operation. This fitting is tailored for use with pilot burners such as model #51-1287, compatible with the #26-2249 propane control system, making it essential for maintaining optimal flame ignition and safe operation in restaurant kitchen appliances, commercial boilers, and industrial heating units.
Top AllPoints 1038520 Features
The Garland 1038520 Orifice Fitting provides precision fuel delivery for pilot burners, constructed from durable materials to withstand high thermal and operational stresses. Its compact size and easy installation facilitate seamless integration into existing fuel line systems, reducing maintenance time. Designed for reliable performance, this orifice offers consistent fuel flow control, ensuring efficient combustion and safety in commercial foodservice applications. Its precise .020-inch diameter contributes to stable pilot flame management, making it suitable for various industrial and restaurant equipment requiring fuel regulation accuracy.
- Functionality: Ensures accurate fuel flow in pilot burners
- Durability: Manufactured from high-grade metal for longevity
- Ease of Use: Quick installation with standard fittings
- Application Fit: Compatible with Garland pilot burners #51-1287
- Workflow Benefit: Supports reliable ignition in fuel system setups
Ideal for commercial food equipment requiring precise pilot burner operation
Garland 1038520 Technical Specs
The Garland 1038520 orifice fitting features a .020-inch orifice diameter, tailored for propane use with model #26-2249. Manufactured in the United States from high-quality materials resistant to high temperatures and mechanical stress, it weighs approximately 0.1 lbs and measures 1.15 inches in width, 1.35 inches in depth, and 0.65 inches in height. Designed to fit standard fuel intake connections, it has an OEM classification with no hazardous materials involved. The product operates reliably within typical fuel delivery systems, supporting combustion stability in commercial heating and cooking appliances. Its simplicity in disassembly and installation ensures maintenance efficiency in busy restaurant and industrial environments. The fitting's corrosion-resistant construction ensures long-term durability, contributing to consistent performance under operational temperatures up to maximum specifications for fuel flow components. The component is compatible with common fuel lines and can be easily replaced during routine maintenance, with no need for specialized tools beyond standard fittings. Dimensions and weight specifications support precise fitting within compact spaces, making it suitable for retrofit and new installations alike.
- Material Compatibility: High-grade metal construction for thermal resilience
- Orifice Diameter: Precisely machined at 0.020 inches for accurate fuel regulation
- Installation Requirements: Compatible with system #26-2249 and #51-1287 burner setups
- Operational Range: Designed for stable fuel flow within standard commercial combustion parameters
- Maintenance Compatibility: Small, easy-to-disassemble parts for routine servicing
What is a commercial orifice fitting ?
A commercial orifice fitting is a precisely manufactured component used in fuel delivery systems within industrial and restaurant equipment. It regulates the flow of fuel from the supply line to the pilot or main burner, ensuring controlled combustion and safety. The Garland 1038520 Orifice Fitting, specifically, is a high-precision .020-inch orifice designed for propane pilot burners; it is installed in systems such as pilot burners #51-1287 and works with propane control units like #26-2249. Typically used in commercial kitchen appliances, boilers, or industrial heating units, it ensures stable flame ignition, fuel efficiency, and operational safety. Its robust construction and exact dimensions support long-term performance in demanding environments, making it a critical component in maintaining consistent flame management and safe combustion processes in high-volume foodservice settings.
Top natural gas and propane orifice fittings for commercial kitchen applications
Reliable fuel regulation components like the Garland 1038520 orifice guide essential pilot ignition and combustion processes in commercial operations, built for durability and precision. Designed for moderate workloads, it suits foodservice settings such as commercial cooking, industrial heating, and boiler systems. Garland’s durable build and precise specifications optimize operational effectiveness in restaurant-grade equipment, ensuring safe, consistent fuel flow during daily service tasks.
- Operation Type — for commercial cooking and industrial burners
- Kitchen Setting — suitable for compact kitchens and industrial spaces
- Foodservice Category — ideal for heating systems and combustion units
- Workload Qualifier — suited for moderate-volume fuel regulation
- Use Case — supports pilot burner ignition and flame stability
Why Choose AllPoints 1038520 ?
AllPoints 1038520 orifice fittings distinguish themselves through precise manufacturing, durable construction, and compatibility with critical fuel systems. Unlike generic components, this OEM-part ensures reliable fuel regulation, simplifying installation and maintenance in busy commercial environments. Its design minimizes downtime and enhances safety by delivering consistent fuel flow, essential for optimal appliance operation and longevity.
- Self-contained design optimizes fuel delivery components
- Manufactured in the United States for high standards of quality
- Precise .020-inch diameter for optimized combustion control
- Corrosion-resistant materials extend operational life
- Compatible with Garland and other standard pilot burner systems
