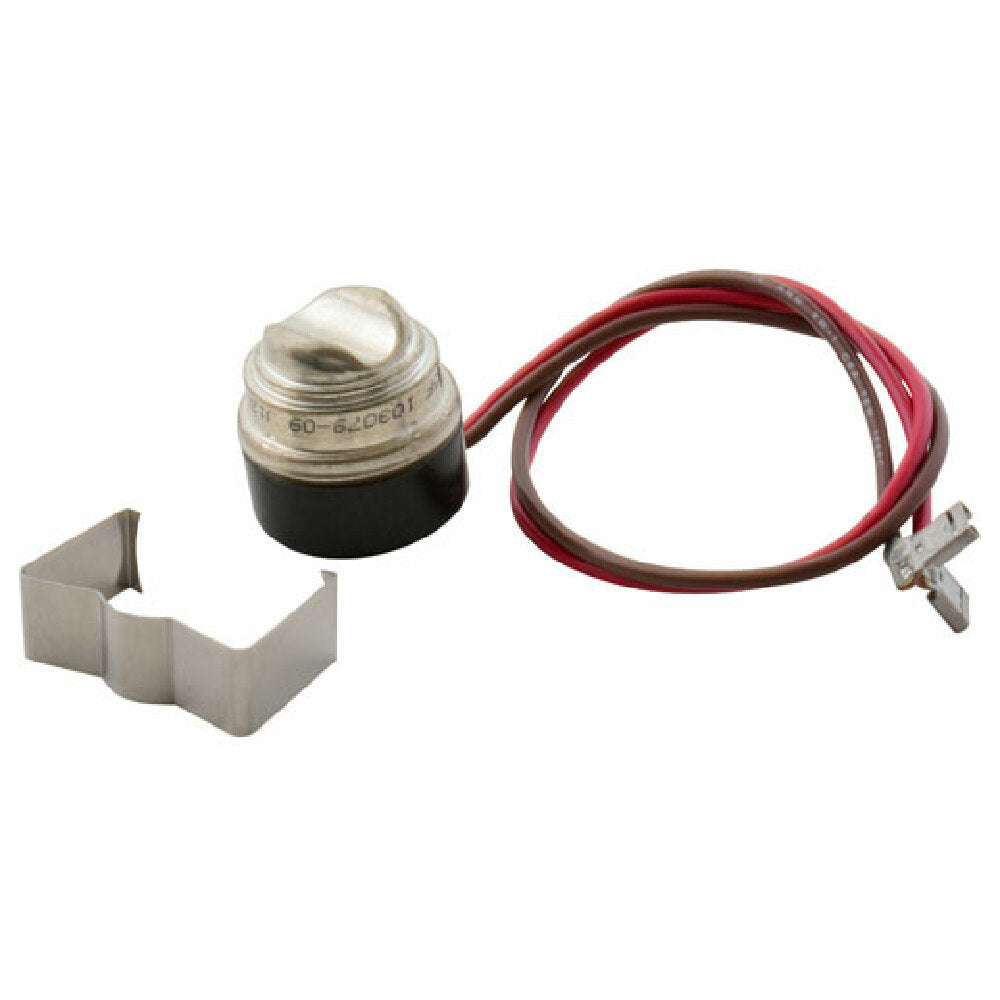

The Russell 103079009 Switch Fan Delay 2 Wire is a precision-engineered OEM control component designed for commercial kitchen ventilation systems, HVAC applications, and industrial cooling setups. Manufactured by Russell and distributed through AllPoints, this switch fan delay module features a length of 381 mm with 15-inch leads, allowing for reliable connections within complex electrical assemblies. Its core function is to provide precise control over fan operation, with temperature-sensitive switching that closes at 2 °C (35 °F) and opens at 7 °C (45 °F), ensuring optimized airflow management in foodservice environments and equipment installations. This component is engineered for durability, seamless integration into existing wiring systems, and consistent performance under typical operational temperature ranges, vital for maintaining airflow efficiency and safety in commercial applications.
Top AllPoints 103079009 Features
The Russell 103079009 switch fan delay features an electrical design suitable for controlling HVAC and ventilation fans in commercial kitchens and food prep areas. Its 2-wire configuration simplifies installation, reducing setup time in busy kitchens. The unit’s metallic construction ensures long-term durability, while its temperature response precision enhances workflow safety and system reliability. Ideal for HVAC systems in restaurant, cafeteria, and institutional foodservice settings requiring accurate fan operation control and minimal maintenance.
- Functionality: Controls fan delay based on temperature thresholds with reliable switching
- Durability: Constructed from high-grade metals to withstand commercial environments
- Ease of Maintenance: Simple wiring with 2-wire design ensures straightforward installation
- Workflow Integration: Fits seamlessly into HVAC and ventilation systems for consistent airflow
- Operational Fit: 381 mm length with 15-inch leads supports flexible placement in equipment
Suitable for replacing or upgrading control systems in air circulation units and commercial kitchen extractors.
103079009 Technical Specs
The Russell 103079009 switch fan delay is a commercial-grade OEM component optimized for reliability in HVAC systems and ventilation controls. It operates with a standard voltage compatible with typical commercial electrical setups, ensuring consistent switching performance across temperature variations ranging from 2 °C to 7 °C (35 °F to 45 °F). The switch’s construction utilizes high-quality metals for durability and corrosion resistance, with dimensions of 3.5 inches in width, 5 inches in depth, and 1 inch in height, supporting ease of installation in confined spaces. Weighing just 0.14 lbs, it offers a lightweight yet robust solution for commercial applications. The component is designed to meet general safety and performance standards, with features like thermal responsiveness and reliable electrical contact points to facilitate continuous operation within specified temperature ranges. It does not include hazardous materials, and the product is assembled in the United States to ensure quality control, with shipping typically within 4 to 5 days.
- Electrical Requirements: Compatible with standard commercial voltages, stable at 2-7 °C switching thresholds
- Construction & Finish: Made from corrosion-resistant metals with a compact form factor
- Installation & Maintenance: Requires minimal wiring, suited for straightforward replacements
- Operational Compatibility: Designed for HVAC, air handling units, and commercial kitchen ventilation systems
- Dimensions & Weight: 3.5" W x 5" D x 1" H, weighing 0.14 lbs for flexible mounting
What is a commercial fan delay switch
A commercial fan delay switch is an electronic control device used to regulate the operation timing of ventilation fans, ensuring they stay active for a specified period after a triggering event. This device, exemplified by the Russell 103079009 model, is installed within HVAC and ventilation control circuits to delay fan shutdown, optimize airflow, and improve system efficiency. It functions by sensing temperature changes within a designated range, closing at 2 °C (35 °F) and opening at 7 °C (45 °F), providing precise control suited for commercial kitchen exhaust systems, HVAC installations, and industrial airflow management. Typically mounted within control panels or directly wired into existing circuits, these switches facilitate consistent airflow regulation, helping maintain air quality and system safety in foodservice and industrial environments.
Top commercial fan delay switches for foodservice environments
Designed for HVAC control panels and ventilation systems, the Russell 103079009 switch fan delay offers precision and durability suitable for commercial kitchen exhaust and air circulation systems, supporting moderate workload environments like restaurants, cafeterias, and institutional foodservice facilities. Manufactured by AllPoints, this relay ensures robust operation aligned with foodservice operational demands, integrating seamlessly into existing electrical setups to enhance airflow management efficiency without disrupting workflow.
- Operation Type — HVAC fan control in foodservice kitchens
- Kitchen Setting — compact commercial spaces with limited installation access
- Foodservice Category — ventilation and air circulation in institutional or restaurant settings
- Workload Qualification — suitable for moderate throughput airflow control
- Use Case — regulates exhaust fan delay in commercial ventilation systems
Why Choose AllPoints 103079009?
AllPoints 103079009 fan delay switch distinguishes itself with high-quality metal construction, simple 2-wire installation, and precise temperature response controls. Its compact, lightweight design ensures easy integration into existing HVAC systems and kitchen ventilation setups, enhancing airflow reliability and operational safety. The switch’s durable build provides long-term performance under busy foodservice conditions, reducing maintenance needs and system downtime compared to standard control modules.
- Compact footprint supports installation in tight control panels
- High-grade materials prevent corrosion and ensure longevity
- Simple wiring design simplifies replacement and setup
- Consistent temperature responsiveness optimizes airflow regulation
- Reliable operation suits restaurant, cafeteria, and institutional kitchens
