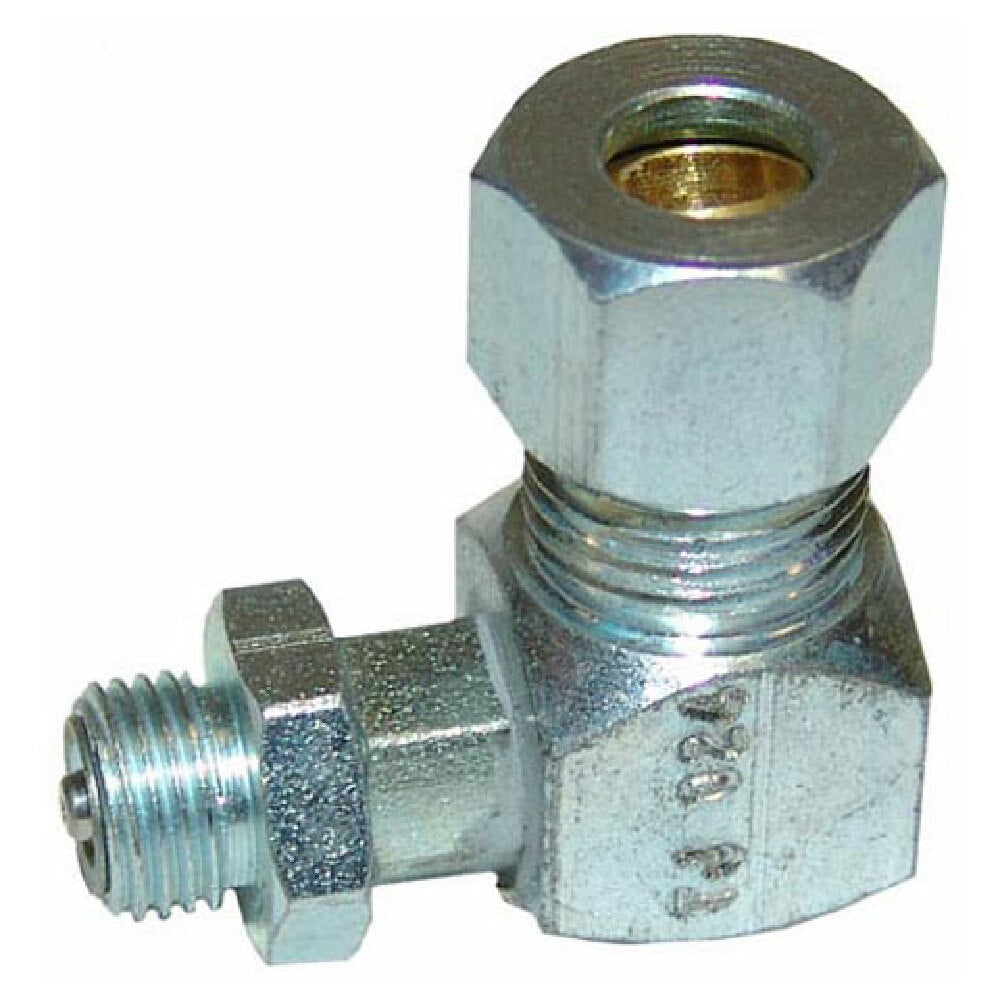

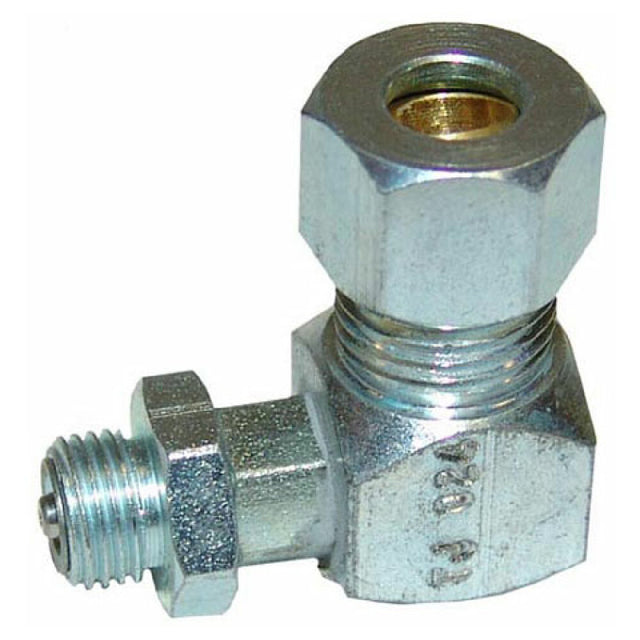

The White Rodgers 101094HD024 Orifice Elbow (nat) 5/16 X 32 #77 is a precision component designed for commercial foodservice applications, particularly in high-efficiency fryer systems. Manufactured by White Rodgers, this orifice elbow serves as a critical part in natural gas systems, featuring a 1/4-inch connection inlet and a 5/16-32 #77 elbow specification. Its durable construction ensures reliable fuel delivery to appliances such as Frymaster, Garland, and Anets fryers, making it ideal for restaurants, commercial kitchens, and institution-based foodservice operations demanding consistent performance and safety compliance.
Top AllPoints 101094HD024 Features
The 101094HD024 Orifice Elbow is engineered for precise fuel regulation and installation ease in commercial fryer units. Made from corrosion-resistant materials, it ensures longevity under high-temperature conditions. Its compact design facilitates seamless integration into existing gas plumbing setups, supporting fast maintenance and reliable operation during high-volume food production tasks, such as fryer automation in busy kitchens.
- Functionality: Ensures accurate gas flow for consistent fryer ignition
- Durability traits: Constructed from high-quality metal alloys resisting corrosion
- Ease of use: Features standardized connections simplifying installation
- Application fit: Compatible with standard 1/4" connection outlets in commercial fryers
- Workflow enhancement: Supports quick replacement during routine maintenance or repairs
Ideal for fitting into commercial fryer systems that require precise, durable gas delivery components.
White Rodgers 101094HD024 Technical Specs
The White Rodgers 101094HD024 Orifice Elbow features a 1/4-inch inlet connection and a 5/16-32 #77 elbow configuration, optimized for natural gas supply in commercial fryer systems. Manufactured in the United States, it weighs only 0.1 lbs, ensuring ease of handling during installation. The component is made from corrosion-resistant materials suitable for high-temperature environments, with an operating temperature range compatible with standard commercial kitchen appliances. Its compact dimensions—0.31 inches wide, 1 inch deep, and 1 inch high—allow for straightforward integration into existing gas piping arrangements. Designed without hazardous elements, this part complies with safety standards for foodservice equipment, supporting long-term reliability in professional kitchen setups.
- Material: High-strength corrosion-resistant metal alloy
- Dimensions: Width 0.31", Depth 1", Height 1"
- Weight: 0.1 lbs
- Origin: United States
- Maximum operating temperature: Compatible with typical commercial appliance temperatures
What is a commercial orifice elbow?
A commercial orifice elbow is a precisely engineered gas component used in natural gas appliances within foodservice equipment. It connects and directs gas flow from the supply line into appliances such as fryers, ensuring proper combustion and safety. Typically made from durable metals, these elbows are installed in high-demand environments like restaurant kitchens and catering facilities, supporting consistent appliance performance and maintenance ease. The White Rodgers 101094HD024 Orifice Elbow, configured for 5/16-32 #77 specifications, is ideal for integrating into fryers from brands like Frymaster, Garland, and Anets, ensuring optimal fuel delivery and operational reliability.
Top Commercial Orifice Elbows for Gas-Fueled Foodservice Equipment
Designed for precise gas control in moderate to high-volume commercial kitchens, the White Rodgers 101094HD024 provides superior durability and performance for natural gas fryer applications. Suitable for installation in busy restaurant environments, it supports efficient fuel flow, safe operation, and simplified maintenance. White Rodgers 101094HD024 is recognized for its reliable fitting in standard natural gas plumbing setups, optimizing workflow for foodservice operations requiring consistent appliance ignition and efficient combustion.
- Operation Type — suitable for fryer setups in busy kitchens
- Kitchen Type — ideal for compact commercial foodservice spaces
- Foodservice Category — essential in frying equipment operations
- Workload Qualifier — supports moderate throughput commercial use
- Use Case — efficient gas delivery in restaurant fryer systems
Why Choose AllPoints 101094HD024?
Compared to similar components, the AllPoints 101094HD024 offers exceptional precision, durability, and compatibility tailored for commercial gas fryers. Its high-quality material construction ensures long-term resistance to corrosion and high-temperature stress, reducing maintenance downtime. The compact, standardized design simplifies installation in existing systems, boosting operational efficiency and safety. This model’s robust build quality and precise specifications make it a reliable choice for demanding foodservice environments.
- Built with corrosion-resistant, high-strength metals for long-term durability
- Compact footprint supports quick replacement in tight spaces
- Standardized connections simplify installation and maintenance
- Optimized for natural gas consumption, enhancing efficiency
- Designed for consistent, reliable performance in commercial fryers
