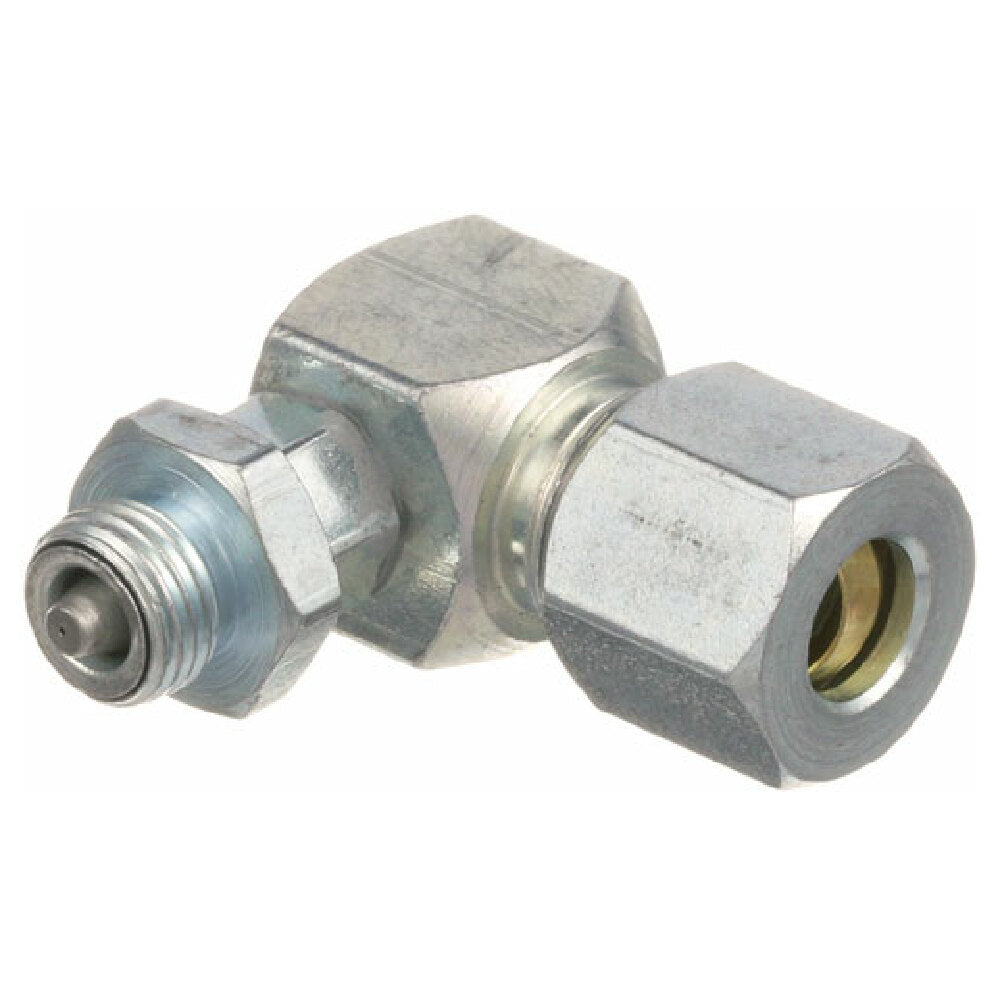

The White Rodgers 101094HD013 Orifice Elbow (lp) 5/16 X 32 #.010 is a precision replacement component designed for high compatibility with commercial fryer equipment. Manufactured by White Rodgers, this orifice elbow features a 1/4" cassette inlet with a 5/16-32 thread and a #.010 orifice size, optimized for LP pilot systems. Its technical design ensures consistent fuel delivery essential for maintaining optimal burner performance in foodservice applications, including Frymaster, Garland, and Anets fryers. This orifice provides precise control in gas flow regulation, contributing to efficient ignition and stable flame characteristics, critical for commercial cooking operations demanding reliability and safety.
Top White Rodgers 101094HD013 Features
The White Rodgers 101094HD013 LP pilot orifice elbow supplies accurate gas flow regulation for professional fryer systems, enabling reliable ignition and consistent flame stability. Constructed from durable materials suited to frequent cleaning and long-term use, it simplifies maintenance with a straightforward installation process. Ideal for high-volume commercial fryers, this component ensures smooth gas delivery and compatibility with standard fittings, optimizing workflow in busy kitchen settings. Its precise orifice size and thread specifications support seamless integration into existing gas supply lines, enhancing operational efficiency and safety in commercial foodservice environments.
- Functionality: Precise gas delivery for reliable ignition and flame stability
- Durability: Made from corrosion-resistant materials for long-term use
- Ease of Maintenance: Designed for straightforward installation and removal
- Compatibility: Fits standard 5/16-32 thread fittings with 1/4" inlet
- Workflow Efficiency: Supports consistent burner operation in busy kitchens
Suitable for high-volume fryer installations requiring precise pilot gas adjustment and stability
White Rodgers 101094HD013 Technical Specs
This orifice elbow is engineered for compatibility with standard LP gas supply systems, featuring a 1/4" cassette inlet and 5/16-32 threaded connection. Its construction from corrosion-resistant materials ensures longevity under frequent cleaning cycles typical in commercial kitchens. The component's compact footprint measures 0.5 inches wide, 1 inch deep, and 1 inch high, weighing approximately 0.06 lbs, facilitating easy installation within existing burner assemblies. Designed to operate within typical gas flow parameters, it features a #.010 orifice size, optimized for precise fuel flow regulation. The product is made in Mexico, aligning with industry standards for quality manufacturing. It is non-hazardous, with no certification requirements, and is intended for use with commercial fryers requiring stable pilot combustion. The item is typically shipped within 4 to 5 days, available for single-unit purchase but not shipped separately. Materials are food-safe and compatible with cleaning procedures common in commercial kitchen environments.
- Electrical Requirements: Not applicable; gas system component
- Construction Material: Corrosion-resistant metal suitable for frequent cleaning
- Dimensions: 0.5" W x 1" D x 1" H
- Product Weight: 0.06 lbs
- Orifice Size: #.010 for precise gas flow control
- Thread Size: 5/16-32
- Gas Supply Compatibility: Suitable for standard LP gas connections in commercial kitchens
- Installation Clearance: Requires minimal space; installation fitting standards
- Maintenance Access: Easy to replace with simple tools for routine adjustments
- Inlet Connection: 1/4" cassette inlet for quick integration with existing gas lines
- Operational Safety: Designed for stable gas flow, supporting safe burner operation
What is a commercial orifice elbow?
A commercial orifice elbow is a precision-engineered component used in gas-fired appliances to regulate and direct fuel flow from the supply line to the burner. Typically installed in fryer and oven systems, it features threaded connections tailored for specific gas flow rates and pressures. The orifice size and threading ensure compatibility with various gas equipment, providing consistent ignition and flame stability vital for food safety and operational efficiency. White Rodgers 101094HD013 orifice elbow, in particular, is designed for heavy-duty kitchen environments, supporting reliable LP gas delivery and ensuring steady burner performance in high-demand commercial foodservice applications like fryers and griddles.
Top commercial gas supply components for high-volume foodservice
Designed for steady LP gas flow regulation, White Rodgers 101094HD013 offers durable, reliable performance for operational kitchen setups. Suitable for commercial fryers, it ensures precise fuel delivery, supporting consistent cooking quality and safety in busy foodservice environments. White Rodgers components like this are built for reliable operation and straightforward maintenance, ideal for medium-volume kitchen workflows and appliance integration.
- Operation Type — supports fryer and oven gas systems
- Kitchen Setting — optimal for commercial restaurant kitchens
- Foodservice Category — suitable for commercial fryers and gas appliances
- Workload Qualifier — supports moderate throughput commercial operations
- Use Case — ideal for steady flame regulation in high-demand cooking
Why Choose White Rodgers 101094HD013?
White Rodgers 101094HD013 stands out with its robust construction, precise orifice sizing, and reliable threading, ensuring compatibility and performance across various fryer brands. Its corrosion-resistant materials enhance longevity, while its compact design facilitates seamless integration into existing gas delivery systems. This component maintains burner stability, reduces downtime, and supports safe kitchen operations—superior to many generic fittings in durability and technical precision.
- Compact footprint ensures easy installation in tight spaces
- Designed for consistent, accurate gas flow regulation
- Constructed from corrosion-resistant, food-safe materials
- Supports reliable ignition in commercial fryer systems
- Optimized for long-term durability in demanding environments
