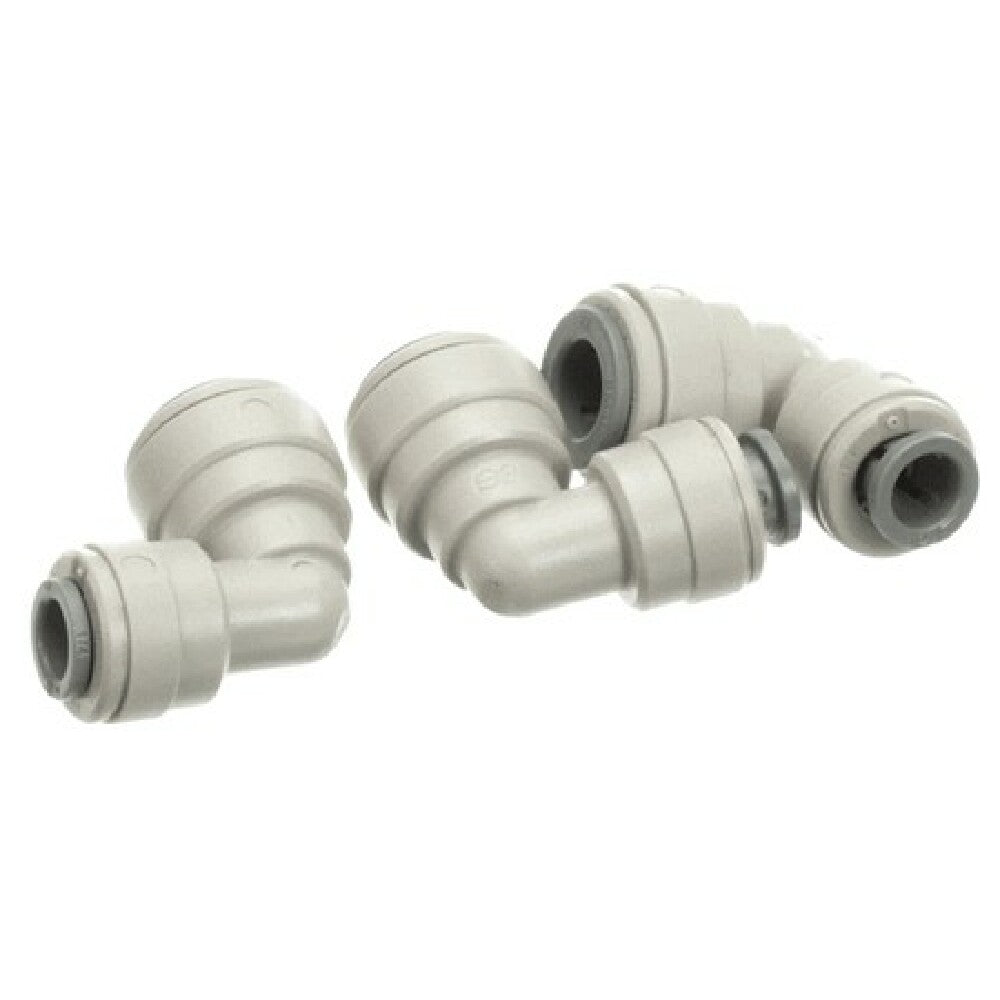

The Elkay 1000001602 Kit 75583c Elbow 5/16" X 1/4" (3 Pack) is a high-precision plumbing fitting designed by Elkay for commercial water system installations. These elbows facilitate secure and reliable connections between 5/16" and 1/4" tubing lines, ensuring proper fluid flow in beverage dispensers, kitchen appliances, and filtration systems. Crafted from durable materials suitable for intensive use, they are essential components in foodservice environments requiring consistent, leak-free operation. Their technical specification of 5/16" X 1/4" diameters makes them suitable for precise connection points in high-volume beverage and water delivery systems, optimizing workflow efficiency for commercial kitchen operators and equipment integrators.
Top AllPoints 1000001602 Features
The Elkay 1000001602 kit provides three high-quality elbows manufactured for durability and ease of installation in commercial foodservice water systems. These fittings enable seamless connection transitions, withstand frequent disassembly, and resist chemical corrosion, ensuring long-term performance. Designed for quick, tool-free assembly, they promote efficient maintenance and system troubleshooting. Compatible with standard tubing sizes, they improve water flow management in beverage stations, ice machines, and filtration units, supporting streamlined kitchen workflows and reducing downtime.
- Functionality: Facilitates secure 5/16" to 1/4" tubing transitions
- Material Durability: Constructed from corrosion-resistant, food-grade plastics
- Ease of Use: Designed for simple hand or tool-assisted installation and removal
- Application Suitability: Fits standard tubing in commercial beverage and filtration systems
- Workflow Enhancement: Ensures leak-proof connections, minimizing maintenance interruptions
Ideal for replacing worn or damaged elbows in fluid delivery systems within commercial kitchens and foodservice facilities.
AllPoints 1000001602 Technical Specs
The AllPoints 1000001602 fittings are engineered with a compact footprint of 1.25" width, 0.85" height, and 3.15" depth, making them suitable for confined installation spaces in commercial water dispensing setups. Manufactured from high-quality, chemically resistant plastics, each elbow weighs approximately 0.05 lbs, ensuring lightweight handling during installation or replacement. These fittings are designed to operate reliably within standard plumbing parameters, supporting continuous flow in beverage dispensers, ice machines, and water filtration units. They are compatible with tubing sizes of 5/16" and 1/4", resistant to common cleaning agents used in commercial environments. Each kit is packaged in a durable, reusable container for quick access during routine maintenance. They are non-hazardous, do not require electrical connections, and are built to endure daily operational stresses typical of foodservice settings.
- Dimensions: 1.25" W x 0.85" H x 3.15" D
- Weight: 0.05 lbs per fitting
- Material: Food-grade, corrosion-resistant plastic
- Connection Sizes: 5/16" outer diameter to 1/4" outer diameter
- Operating Range: Suitable for standard water temperatures in foodservice applications
- Electrical Compatibility: None required—plumbing fitting
- Plumbing Setup: Compatible with tubing systems utilizing 5/16" and 1/4" tubing
- Installation Clearance: Permits quick connection in tight undercounter spaces
- Cleaning & Maintenance: Disassembly for routine cleaning with compatible food-safe solutions
- Flow Capacity: Supports high-volume beverage and water systems in commercial kitchens
What is a commercial elbow fitting?
A commercial elbow fitting is a plumbing component used to connect two sections of tubing or piping at a 90-degree angle within foodservice water systems. These fittings, such as the Elkay 1000001602 kit, are crafted from durable materials designed to withstand frequent handling, chemical exposure, and operational stresses typical of commercial kitchen environments. Installed primarily in beverage dispensers, ice machines, or filtration units, they enable efficient routing of water lines and minimize leak points, ensuring reliable system performance. Suitable for applications requiring precise tubing connections, these elbows optimize fluid flow, support maintenance routines, and facilitate system expansion or modifications in professional foodservice settings.
Top commercial water system fittings for fluid management in hospitality environments
Reliable and durable, the AllPoints 1000001602 fittings are designed for professional kitchen integration, supporting seamless tubing connections for beverage and water systems in mid-volume foodservice settings. These fittings ensure leak-proof operation and ease of maintenance for efficient workflow in commercial environments.
- Operational Applications — suited for beverage and ice machine connections
- Compact Design — ideal for tight installation spaces in commercial kitchens
- Foodservice Compatibility — optimized for beverage, filtration, and water supply systems
- Moderate Workload — handles continuous water flow in busy foodservice venues
- System Utility — enhances fluid distribution for efficient appliance operation
Why Choose AllPoints 1000001602?
The Elkay 1000001602 kit offers a reliable alternatives to standard fittings with its corrosion-resistant plastic construction and precise dimensional compatibility. Unlike generic connectors, it emphasizes durability in high-use environments and simplifies installation, reducing system downtime. Its compact design and high-quality materials improve system longevity, making it a preferred choice for commercial kitchen equipment and waterline connections that demand consistency and performance.
- Self-contained design reduces installation complexity
- Corrosion-resistant, food-grade plastic enhances longevity
- Compact footprint optimizes tight space installations
- Secure 5/16" to 1/4" tubing transition improves water flow
- Suitable for extensive use in restaurant-ready water systems
