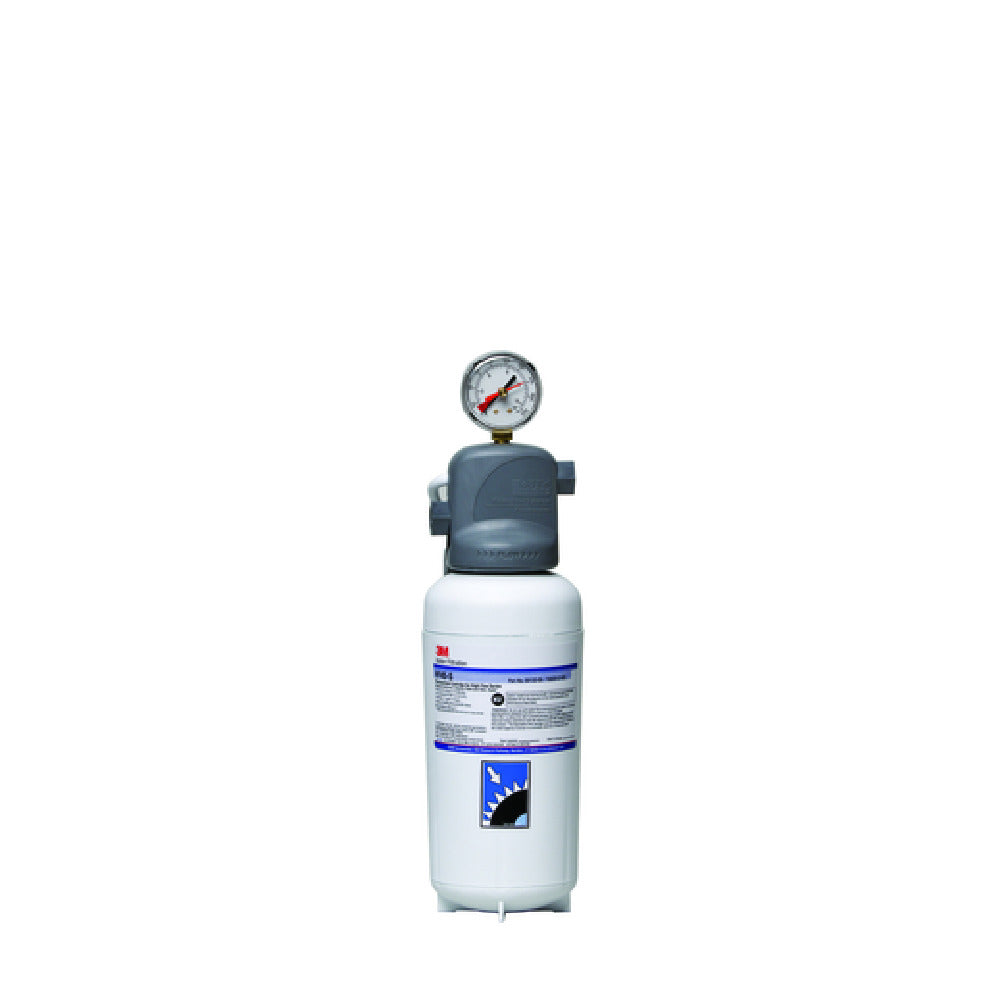

3M ICE145-S 4.5 Inch Water Filter System for Ice Machines with Gauge

The 3M™ Water Filtration Products Water Filter System (model ICE145-S) from 3M Purification is a high-performance, commercial-grade water filtration unit designed specifically for ice machine applications. This unit features a compact, self-contained design with a valve-in-head mechanism and integrates a gauge for monitoring system performance. With a height of 14-7/8 inches and a depth of 5-1/16 inches, it efficiently filters high turbidity water, providing a reliable solution for sediment, chlorine taste & odor, and scale reduction. The system includes a single vessel and an o-ring seal cartridge filter with a 3-micron rating, capable of processing up to 25,000 gallons at a flow rate of 2.1 gpm. Its NSF certification ensures compliance with demanding commercial standards, suitable for ice cubers up to 1000 lbs and flakers up to 1800 lbs, including models from Manitowoc, Scotsman, Hoshizaki, and Ice-O-Matic.

Top 3M ICE145-S Features

The 3M ICE145-S water filter system delivers precise filtration tailored for commercial ice machines, combining durability with ease of maintenance. Its high-capacity sediment and chlorine reduction capabilities address common water quality issues, while the gauge allows for straightforward monitoring. The compact design with 1/4-turn shutoff valve simplifies on-site servicing, making it ideal for foodservice facilities requiring dependable ice quality. Operationally, it withstands pressures up to 125 psi at 100°F, ensuring consistency in high-demand environments.

• Maximum flow rate: 2.1 gallons per minute supports large ice production needs.
• Durable construction: Built with corrosion-resistant materials for longevity in commercial settings.
• Easy cartridge replacement: Includes integral mounting bracket and reusable o-ring seal for straightforward maintenance.
• Compatibility with ice machines: Designed for connection to standard 3/8" FNPT plumbing systems in ice maker installations.
• High capacity filtering: Supports up to 25,000 gallons, reducing frequent replacements and downtime.

Ideal for high-volume ice production in foodservice operations; suitable for precise filtration needs in commercial kitchens.

3M ICE145-S Technical Specs

The 3M ICE145-S Water Filtration System features a compact 14-7/8" height and 4.5" width, with a depth of 5-1/16", weighing approximately 4.27 lbs. It incorporates a self-contained, NSF-certified design with a 3-micron filtration rating, capable of processing 25,000 gallons at a flow rate of 2.1 gpm. The system is constructed from corrosion-resistant materials suitable for operation at pressures up to 125 psi and temperatures up to 100°F. Its integral mounting bracket allows for straightforward installation, while the valve-in-head configuration facilitates maintenance. The filter is compatible with standard 3/8" FNPT plumbing connections and is ideal for applications requiring sediment, chlorine taste & odor control, and scale reduction. The unit's durable design ensures consistent performance in demanding commercial environments, with emphasis on ease of use and longevity.

• Electrical Requirements: Not applicable (manual support).
• Dimensions: 14-7/8" H x 4-1/2" W x 5-1/16" D.
• Weight: 4.27 lbs.
• Material Construction: Corrosion-resistant plastics and metals.
• Max Pressure/Temperature: 125 psi at 100°F.
• Capacity: Up to 25,000 gallons of filtered water.
• Flow Rate: 2.1 gpm.
• Filter Rating: 3 microns.
• Connections: 3/8" FNPT inlet/outlet.
• Filtration Type: Sediment, chlorine taste & odor, scale reduction.

Electrical Compatibility: Not required.

Plumbing Connection: 3/8" FNPT.

Installation Space: Requires minimal clearance for filter cartridge access.

Maintenance: Cartridge replacement with integrated mounting bracket.

Operational Environment: Suitable for commercial ice machine hookups.

What is a commercial water filtration system for ice machines

A commercial water filtration system for ice machines is a specialized device designed to remove particulate contaminants, chlorine taste and odor, and scale from incoming water supplies used in ice production. The 3M ICE145-S from 3M Purification is installed in high-volume foodservice environments and features a compact, NSF-certified design with a 3-micron filtration rating. It is typically mounted inline with ice machine plumbing and is used to ensure consistently clean, clear ice while protecting equipment from scaling and mineral buildup. The system supports installation in various commercial settings, including restaurants, cafeterias, and hospitality venues, providing reliable performance for mid-volume ice production needs, with easy maintenance and monitoring capabilities.

Top Water Filtration for Mid-Volume Ice Production for Foodservice Operations

The 3M ICE145-S water filtration unit from 3M Purification is built for reliable filtration in commercial ice machine applications, supporting moderate throughput needs. Its compact footprint, self-contained design, and high-capacity filtration support efficient, restaurant-ready ice production in busy foodservice environments with optimized flow and maintenance features.

• Operation in high-demand kitchens — optimized for ice machine filtration.
• Suitable for compact commercial spaces — space-efficient design fits tight areas.
• Ideal for ice preparation — supports medium-volume ice machines.
• Moderate throughput — flow up to 2.1 gpm sustains consistent output.
• Supports clean ice production — reduces scaling, improves water taste & clarity.

Why Choose 3M from 3M Purification

The 3M ICE145-S offers a robust, self-contained filtration solution with a compact footprint, tailored for commercial ice machine applications. Its durable construction with corrosion-resistant materials enhances longevity and performance. Integrated gauge monitoring and straightforward cartridge replacement streamline maintenance, making it a reliable choice for high-volume ice systems—distinguished by ease of use, consistent filtration, and compatibility with a range of ice machine brands.

• Compact footprint: Fits in tight installation spaces in commercial kitchens.
• Enhanced durability: Built from corrosion-resistant components for long-term reliability.
• Ease of maintenance: Quick cartridge replacement with integral mounting bracket.
• Designed for ice machine integration: Standard 3/8" FNPT connections for simple plumbing.
• Optimized filtration capacity: Supports up to 25,000 gallons to reduce downtime.
