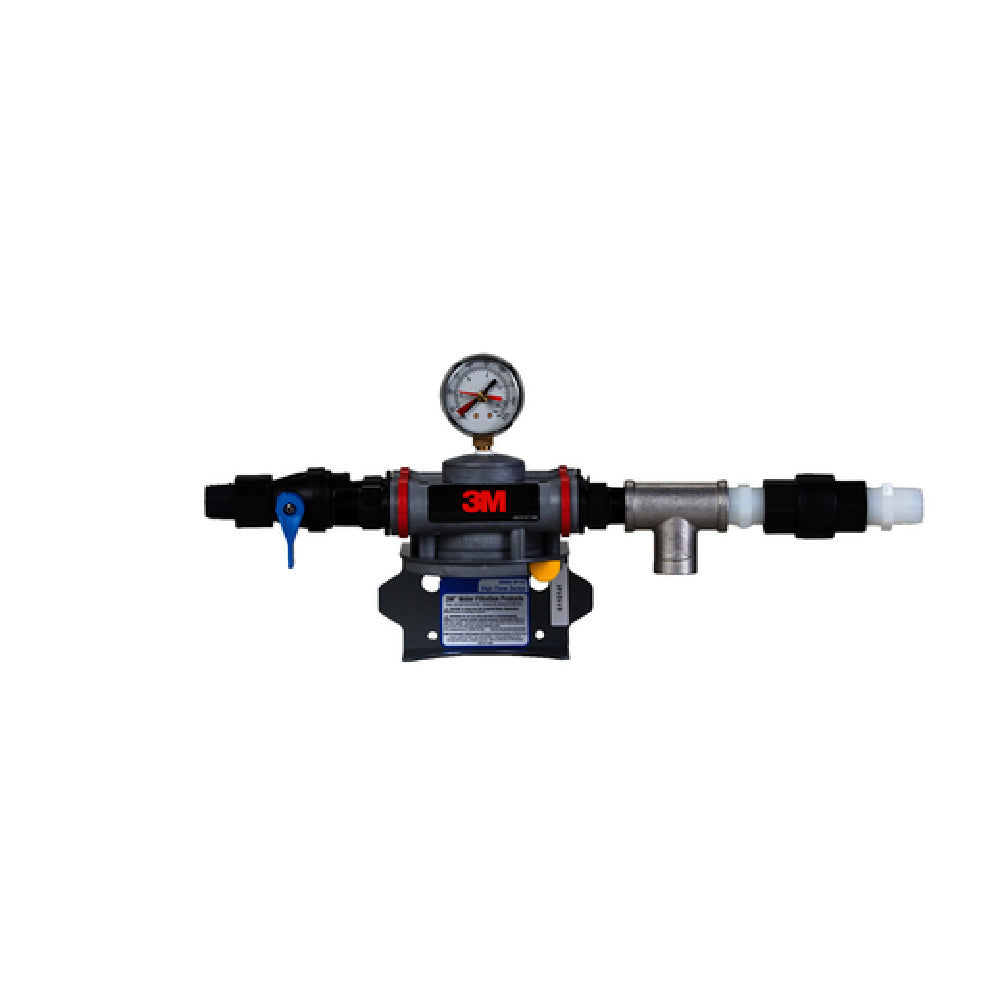

3M DP1XX 17 Inch Water Filtration Manifold Assembly with Pressure Gauge

The 3M™ Water Filtration Products DP1XX (6228603) Dual Port Single Manifold Assembly from 3M Purification is a commercial-grade filtration component designed for precise water quality management in foodservice applications. This manifold assembly features a single-head setup with 3/4" NPT connections, including a built-in shut-off valve and a pressure gauge for monitoring system performance. It requires separate primary and HF8-S scale inhibitor filters, ensuring enhanced water purification for demanding settings like restaurant kitchens and institutional food preparation areas. Its NSF certification affirms compliance with industry standards, making it suitable for integration into medium-volume water filtration setups where reliable flow control and ease of maintenance are essential.

Top 3M DP1XX Features

This dual port manifold assembly is engineered for seamless integration into commercial water filtration systems, providing accurate flow management with a durable design. It facilitates quick filter replacements via its single-head configuration and cast-in shut-off valve, reducing downtime during maintenance cycles. Crafted from high-quality materials, it withstands continuous use in foodservice environments with operational stability. The included pressure gauge allows for real-time system monitoring, supporting optimal workflow and water quality assurance. Its 3/4" NPT connections ensure versatile compatibility with existing plumbing infrastructure, making it ideal for medium throughput applications in restaurants and cafeterias.

• Functionality: Dual port design with built-in shut-off valve for easy filter access
• Durability: Constructed from corrosion-resistant components with a robust material grade
• Ease of Maintenance: Single head configuration simplifies filter replacement and routine checks
• Use Case Fit: Suitable for medium-volume water treatment in commercial kitchens
• Workflow Benefit: Includes pressure gauge for ongoing system performance monitoring

Designed for commercial foodservice water filtration, ideal for installations requiring reliable flow control and maintenance simplicity.

3M DP1XX (6228603) Technical Specs

The 3M DP1XX manifold assembly features a compact footprint with dimensions measuring 17.25 inches wide, 5.5 inches deep, and 8.5 inches high, weighing approximately 7.5 lbs. It is fabricated from durable materials suitable for continuous operation in foodservice environments and includes a pressure gauge for performance oversight. The assembly supports 3/4" NPT threaded connections, compatible with standard plumbing setups. Its construction is designed to withstand typical operating temperatures up to 100°F, ensuring stability and safety during routine filtration processes. The unit’s self-contained design and corrosion-resistant features facilitate easy disassembly and cleaning, supporting efficient maintenance routines in commercial kitchen settings. The manifold’s high production capacity supports consistent water flow essential for medium-demand foodservice operations, with simple installation requiring standard tools and adequate clearance for filter replacements and monitoring.

• Dimensions: 17.25" W x 5.5" D x 8.5" H
• Weight: 7.5 lbs excluding filters
• Connections: 3/4" NPT threaded ports
• Maximum operating temperature: 100°F (38°C)
• Material construction: Corrosion-resistant plastics and metals
• Included components: Pressure gauge, shut-off valve

• Electrical requirements: None (mechanical system)
• Plumbing compatibility: Compatible with standard 3/4" NPT piping
• Installation space: Fits into typical under-sink or filtration enclosure
• Maintenance access: Front-mounted gauge and valve for easy servicing
• System monitoring: Pressure gauge for performance tracking

What is a commercial water filtration manifold?

A commercial water filtration manifold is a critical component of industrial filtration systems designed to distribute and control water flow within foodservice or beverage establishments. Typically installed between main plumbing lines and filters, these manifolds provide multiple outlets for filter housings, streamline maintenance, and enable efficient water treatment. The 3M DP1XX manifold supports medium-volume operations by offering reliable flow regulation and easy filter access, making it suitable for cafes, restaurants, and institutional kitchens where consistent water quality is essential for food safety and equipment protection.

Top manifold for medium-volume foodservice environments

The 3M DP1XX (6228603) manifold assembly offers durable construction and precise flow management for moderate water treatment demands in commercial kitchens. Built for reliable operation, it supports efficient workflow with easy installation and maintenance, making it well-suited for restaurant and institutional beverage applications.

• Medium-duty operation for typical restaurant water treatment needs
• Compact design suited for tight or under-counter spaces
• Versatile connections compatible with standard plumbing
• Ensures consistent flow and water clarity in food environments
• Optimized for routine filter replacements and monitoring

Why Choose 3M for Water Filtration Manifold Systems?

Why Choose 3M DP1XX (6228603)? This manifold features a robust construction with corrosion-resistant materials, integrated pressure monitoring, and a simple single-head design that simplifies maintenance. Its durable build and precise control capabilities enhance operational reliability across medium-volume foodservice operations, outperforming similar market options in ease of use and integration into existing water treatment systems.

• Self-contained design with integrated pressure gauge for monitoring
• Corrosion-resistant build for long-term durability
• Compact footprint fits in tight installation spaces
• Compatible with standard plumbing connections
• Supports medium throughput in restaurant or cafeteria settings
