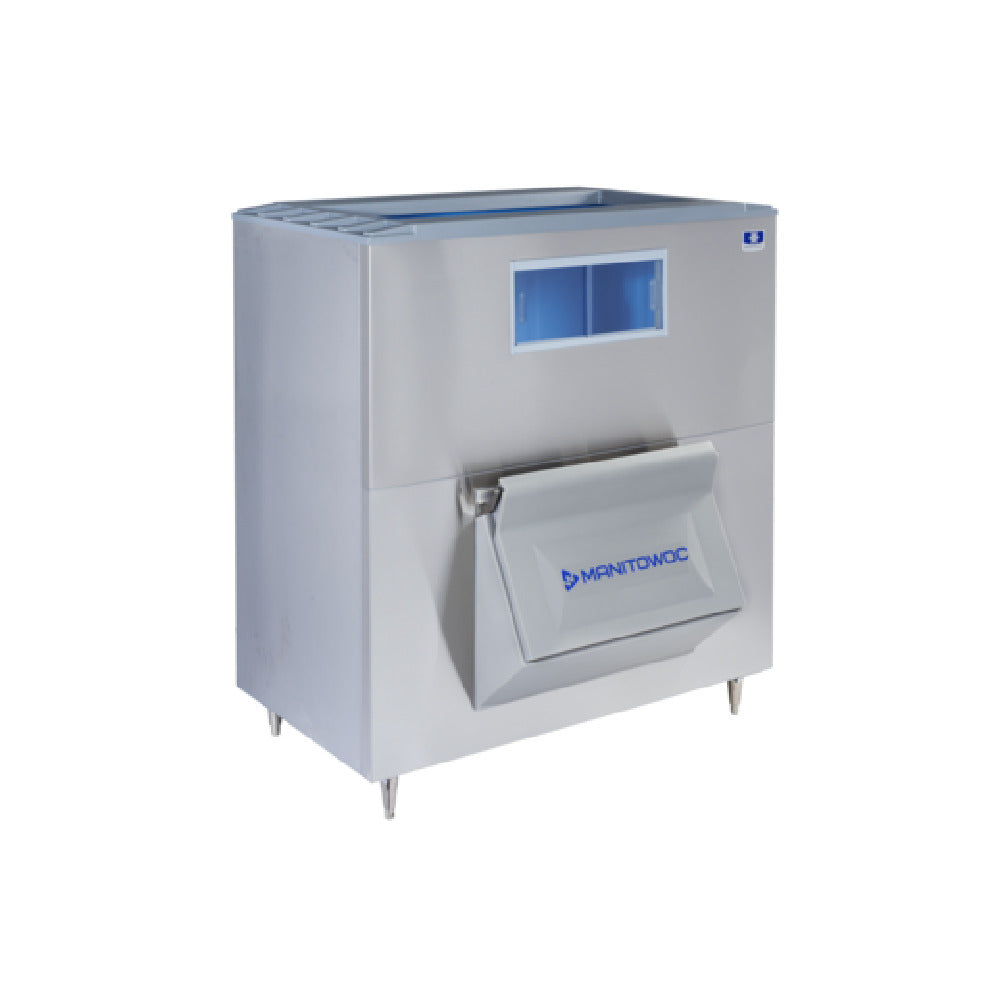

Manitowoc LB1760 LB-Style Upright 60" Wide 1693 lb Capacity 57 Cubic ft Insulated Stainless Steel Ice Storage Bin With Single Lift-Up Spring-Loaded Door And NSF Ice Scoop
| Ship Weight | 395 lb |
| Manufacturer | Manitowoc |
| Model Number | LB1760 |
| Manufacturer Part # | LB1760 |
| Type | Ice Storage Bin |
| Hazardous Material | No |
| Oversized Shipping | No |
| Height | 67 Inches |
| Width | 60 Inches |
| Depth | 34 Inches |
| Base Material | 304 Stainless Steel |
| Color | Silver |
| Ice Bin Storage Capacity | 1693 lb |
| AHRI Volume | 57 Cubic ft |
| Ice Bin Style | LB-Style Upright |
| NSF Listed | Yes |
| AHRI Certified | Yes |
| Liner Material | Polyethylene |
| Baffle Material | Stainless Steel |
| Window Material | Lexan |
| Ice Bin Method | First Ice In / First Ice Out (FIFO) |
| Insulation | 1 1/2" Thick Polyurethane |
| Door Type | Single Lift-Up Spring-Loaded Door |
| Ice Scoop Included | Yes |
| Leg Height | 6" Adjustable To 7 1/8" |
| Leg Material | Stainless Steel |
NOTE: This ice storage bin DOES NOT produce ice. The interior of the storage bin is NOT refrigerated. This unit temporarily stores ice. An ice machine head is required but is NOT INCLUDED with this model.
The LB1760 is the 60" wide upright large capacity ice storage bin from Manitowoc that holds up to 1693 lb of ice in 57 cubic ft of interior space and it uses a first ice in / first ice out method that ensures fresher tasting ice. This ice bin comes included with a bin adapter and filler panels for 22", 30", and 48" ice machines.
There is a sliding view Lexan window on this bin to easily check ice levels from the outside and it has a single lift-up spring-loaded door with a hinge that keeps the bin door open while accessing ice. There is a stainless steel baffle on this ice bin that helps prevent ice overflow.
This ice bin is NSF listed for safety and the storage volume is certified by the AHRI (American Air Conditioning, Heating and Refrigeration Institute).
The LB1760 large capacity ice storage bin front and side exterior is all-welded 304 stainless steel and the interior has a roto-molded seamless rust-free polyethylene liner. The bin walls on this unit are foamed with 1 1/2" thick non-CFS polyurethane insulation.
This ice bin comes with an ergonomic NSF-certified sanitary ice scoop that features a thumb and knuckle guard with an external storage hook. The ice bin stands firmly on a set of 6" stainless steel legs that are expandable to 7 1/8" high.
Manitowoc LB1760 Features
- 60" wide upright large capacity ice storage bin
- Ice Capacity: 1693 lb
- AHRI Volume: 57 Cubic ft
- Single lift-up spring-loaded door
- Sliding view Lexan window
- First ice in / first ice out method
- Welded 304 stainless steel front and side exterior
- Roto-molded seamless rust-free polyethylene liner
- 1 1/2" thick non-CFS polyurethane insulation
- Ergonomic NSF-certified sanitary ice scoop included
- Stainless steel baffle
- 6" adjustable stainless steel legs (expandable to 7 1/8" high)
- NSF listed
- Bin adapter and filler panels for 22", 30", and 48" ice machines included
Manitowoc LB1760 Benefits
- Spring-loaded hinge keeps door open while accessing ice
- Check ice levels from outside with sliding view Lexan window
- Ensures fresh ice with first ice in / first ice out method
- Stainless steel baffle helps prevent ice overflow
- Storage volume certified by AHRI
- Durable all-welded 304 stainless steel exterior
Overall Dimensions:
Height: 67"
Width: 60"
Depth: 34"
Ice Capacity: 1693 lb
