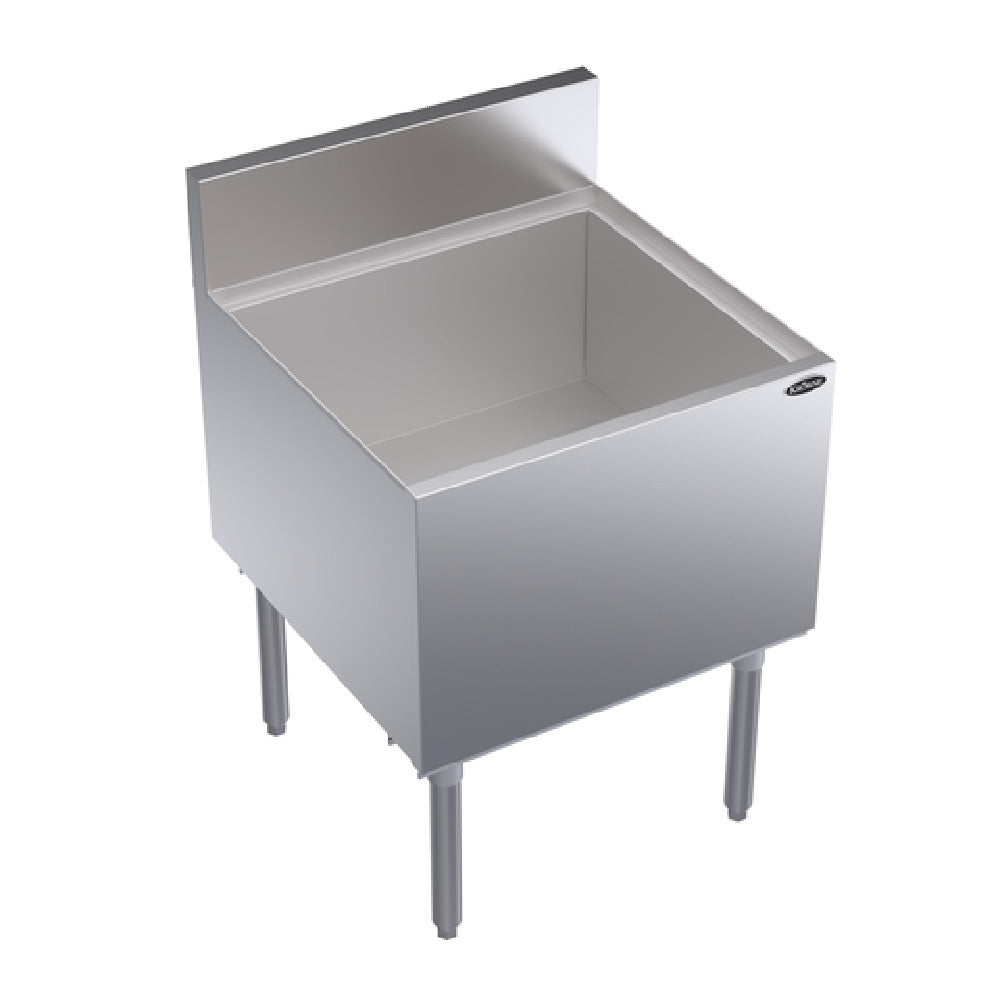

Krowne KR24-24-10 Royal Series 24 Inch x 24 Inch Stainless Steel Insulated Underbar Ice Bin / Cocktail Unit With 10-Circuit Cold Plate, 12 Inch Deep Liner And 92 lb Ice Capacity
|Ship Weight||145 lb|
|Manufacturer Part #||KR24-24-10|
|Type||Ice Bins / Cocktail Units|
|Overall Height||36 1/2 Inches|
|Depth (Front-To-Back)||24 Inches|
|Made In USA||Yes|
|Bin Liner Depth||12 Inches|
|Ice Capacity||92 lb|
|Number Of Bottle Wells||2|
|Cold Plate Type||Built In 10-Circuit Cold Plate|
|Soda Line Cut-Out Size||3/4 Inches x 3 1/2 Inches|
|Soda Line Cut-Out Location||Backsplash, Left Side|
|Drain Connection||1/2 Inch IPS|
|Backsplash Height||6 1/2 Inches|
|Legs||1 5/8 Inch Tubular Stainless Steel (16 Gauge)|
|Feet||Grey Plastic Bullet Feet|
|Brand Line||Royal Series|
The Royal Series cold plate unit has a 3/4" x 3 1/2” Soda Line cut-out on the left side of the backsplash.
There is foamed-in-place polyurethane insulation on this ice bin and it has a 1/2" IPS drain connection.
The KR24-24-10 is the Royal Series 24" wide x 24" deep (front-to-back) stainless steel insulated underbar ice bin/cocktail unit from Krowne with a built-in 10-circuit cold plate, 2 bottle wells, and a 12" deep stainless steel bin liner with a 92 lb ice capacity.
The Royal Series ice bin/cocktail unit is NSF listed and it is proudly made in the USA.
This underbar ice bin/cocktail unit has a 6 1/2" backsplash and it stands firmly on 1 5/8" tubular 16 gauge stainless steel legs with grey thermoplastic bullet feet.
Krowne KR24-24-10 Features
- Built-in 10-circuit cold plate
- 3/4" x 3 1/2” Soda Line cut-out in the left side of the backsplash
- 12" deep stainless steel bin liner
- 1 5/8" tubular 16 gauge stainless steel legs
- Grey thermoplastic bullet feet
- Royal Series underbar ice bin/cocktail unit
- Material: Stainless steel
- Ice capacity: 92 lb
- 1/2" IPS drain connection
- Foamed-in-place polyurethane insulation
- 2 bottle wells
- 6 1/2" backsplash
Krowne KR24-24-10 Benefits
- Durable stainless steel construction
- Made in the USA
- NSF listed
Height: 36 1/2"
Depth (Front-to-Back): 24"
Bin Depth: 12"
Ice Capacity: 92 lb
