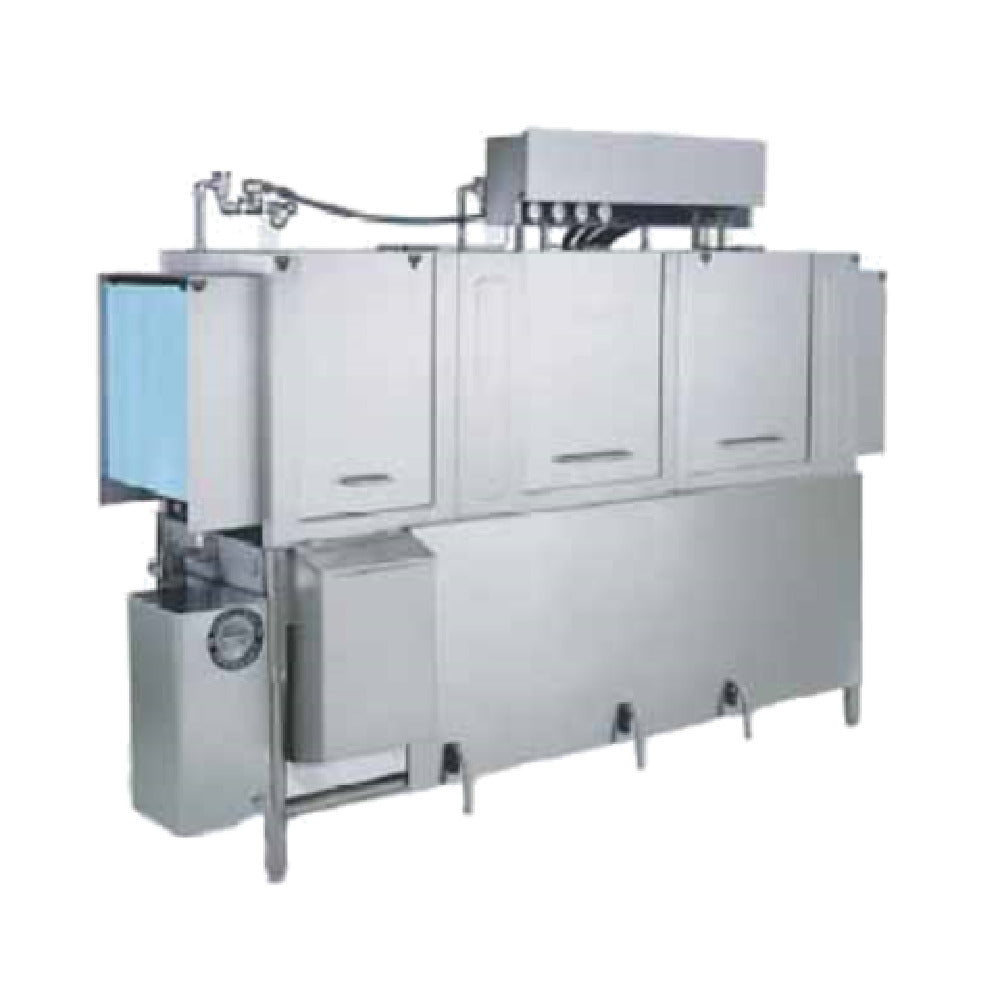

Jackson AJ-86CE 287 Rack/Hr High-Temp Conveyor Dishwasher, 208/60/3

Item: #269740 MFG: #AJ-86CE_208/60/3

The AJ-86CE is a high-temperature conveyor dishwasher from Jackson. This dishwasher can handle approximately 287 racks per hour. The contents on each rack will be placed through a cycle which includes a prewash, wash, power rinse, and final rinse. Sanitation is accomplished by a high temperature rinse. These stages are powered by separate internal stainless steel, self-draning pumps. This product is constructed of 304 series stainless steel. The conveyor system is driven by a stainless steel pawl bar. There is an "Adjust-a-Peek" feature on the pawl bar which allow the end user to slow down the conveyor speed, which can be useful for items that contain particularly stubborn dirt or grime. The "Energy Guard" feature automates much of the machine. The Prewash, Wash, and Power Rinse tanks are automatically filled when machine is activated. There is an incoming water pressure regulator, as well as a pressure reduction valve.

The AJ-86CE is designed to maintain tank water levels at all times, even when pressure is low. There are levers on the front that can be used to drain the machine completely. The "Energy Guard" feature automates much of the machine. The Prewash, Wash, and Power Rinse tanks are automatically filled when machine is activated. The tank features low wattage electric heating. The water temperature is maintained by fast acting thermostats.

Jackson AJ-86CE Features

  • Conveyor Dishwasher
  • 287 Racks per Hour
  • Top Mounted Controls
  • Front Side Inspection Doors
  • Stainless Steel Construction
  • Conveyor Fits Standard 20" x 20" Racks
  • Pressure Regulator on Incoming Water Line
  • Two Tank Design (Wash and Rinse)
  • 22" Recirculating Prewash
  • 8" Vent Cowls with Splash Shield
  • Electric Tank Heat
  • Vent Fan Control

Jackson AJ-86CE Benefits

  • Fresh water used during rinse cycle eliminates wash water contamination
  • High Internal Clearance Allows Washing of larger bowls, pans, trays and utensils
  • Safety Door Switch automatically shuts down wash cycle if any door opens during wash cycle
  • Adjust-A-Peak feature allows adjustment of conveyor speed
  • Full Automation activates sections only when a rack is present
  • Conveyor Shuts Down when no rack is present
View all Description
Because this item is not stocked in our warehouse, processing, transit times and stock availability will vary. If you need your items by a certain date, please contact us prior to placing your order. Expedited shipping availability may vary. We cannot guarantee that this item can be cancelled off of the order or returned once it is placed.
Specification Specifications
Ship Weight 1040 LB
Manufacturer Jackson
Model Number AJ-86CE
Manufacturer Part # AJ-86CE
Country of Origin United States
Amps 85.2
Booster Heater Included No
Conveyor Horsepower 1/4
Conveyor Speed 8 Ft/Min
Dimension(HxWxD) 75.5" x 102" x 25"
Dishwasher Type Conveyor
Incoming Water Temperature 140 Degrees Fahrenheit
Interior Clearance 25"
Rack Included No
Racks Per Hour 287
Rinse Temperature High-Temp
Wash Horsepower 1
Wash Tank Capacity 15 Gal.
Wash Tank Usage 10 kW
Water Used 0.77 Gal / Rack
Water Inlet Size 3/4"
NSF Approved Yes
UL Listed Yes
Electrical 208v/60/3ph
Total Load 85.2 Amps
View all Specifications
