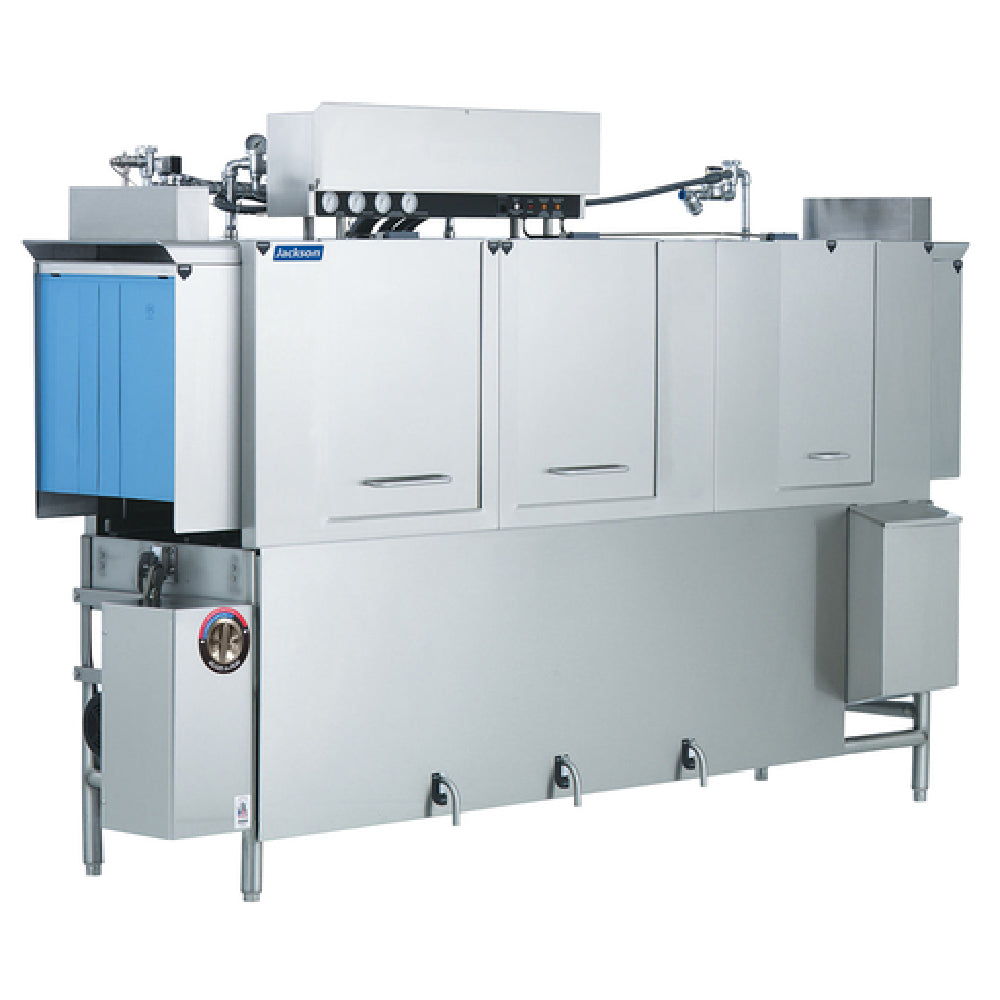

Jackson AJ-100CS 287 Rack/Hr High-Temp Conveyor Dishwasher, 230/60/3

Item
#269782
MFG
#AJ-100CS_230/60/3
Specification Specifications
Ship Weight 1150 LB Manufacturer Jackson Model Number AJ-100CS Manufacturer Part # AJ-100CS Booster Heater Included No Conveyor Horsepower 1/4 Conveyor Speed 8 Ft/Min Dimension(HxWxD) 75.5" x 116" x 25" Dishwasher Type Conveyor Door Location Left Horsepower 2 Incoming Water Temperature 140 Degrees Fahrenheit Interior Clearance 25" Phase 3 Prewash Horsepower 2 Prewash Tank Capacity 16 Gal. Racks Per Hour 287 Rinse Horsepower 2 Rinse Tank Usage 15 kW Rinse Temperature High-Temp Wash Tank Capacity 15 Gal. Wash Tank Usage 10 kW Water Used 0.77 Gal / Rack NSF Approved Yes ETL Listed Yes Electrical 230v/60/3ph Total Load 17.9 Amps
View all Specifications
Description

The AJ-100CS is a high-temperature conveyor dishwasher from Jackson. This dishwasher can handle approximately 287 racks per hour. The contents on each rack will be placed through a cycle which includes a prewash, wash, power rinse, and final rinse. Sanitation is accomplished by a high temperature rinse. These stages are powered by separate internal stainless steel, self-draning pumps. This product is constructed of 304 series stainless steel. The conveyor system is driven by a stainless steel pawl bar. There is an "Adjust-a-Peek" feature on the pawl bar which allow the end user to slow down the conveyor speed, which can be useful for items that contain particularly stubborn dirt or grime. There is an incoming water pressure regulator, as well as a pressure reduction valve.

The AJ-100CS is designed to maintain tank water levels at all times, even when pressure is low. There are levers on the front that can be used to drain the machine completely. The "Energy Guard" feature automates much of the machine. The Prewash, Wash, and Power Rinse tanks are automatically filled when machine is activated. This tank utilizes steam for heating. The steam works via stainless steel coils. The water temperature is maintained by fast acting thermostats.

Jackson AJ-100CS Features

  • Conveyor Dishwasher
  • 287 Racks per Hour
  • Top Mounted Controls
  • Front Side Inspection Doors
  • Stainless Steel Construction
  • Prewash cycle with 36" Section
  • Pressure Regulator on Incoming Water Line
  • Deep-well scrap basket located on front of machine
  • Two Tank Design (Wash and Power Rinse)
  • Steam Coil Tank Heat
  • 8" Vent Cowls with Splash Shield
  • Vent Fan Control

Jackson AJ-100CS Benefits

  • Fresh water used during rinse cycle eliminates wash water contamination
  • High Internal Clearance Allows Washing of larger bowls, pans, trays and utensils
  • Safety Door Switch automatically shuts down wash cycle if any door opens during wash cycle
  • Adjust-A-Peak feature allows adjustment of conveyor speed
  • Full Automation activates sections only when a rack is present
  • Conveyor Shuts Down when no rack is present
View all Description
Because this item is not stocked in our warehouse, processing, transit times and stock availability will vary. If you need your items by a certain date, please contact us prior to placing your order. Expedited shipping availability may vary. We cannot guarantee that this item can be cancelled off of the order or returned once it is placed.
NSF Listed
NSF Listed
This item meets the standards imposed by NSF International, which focuses on public safety, health, and the environment.
ETL Sanitation
ETL Sanitation
This item meets all sanitation standards imposed by the ETL, a division of the Intertek Group.
