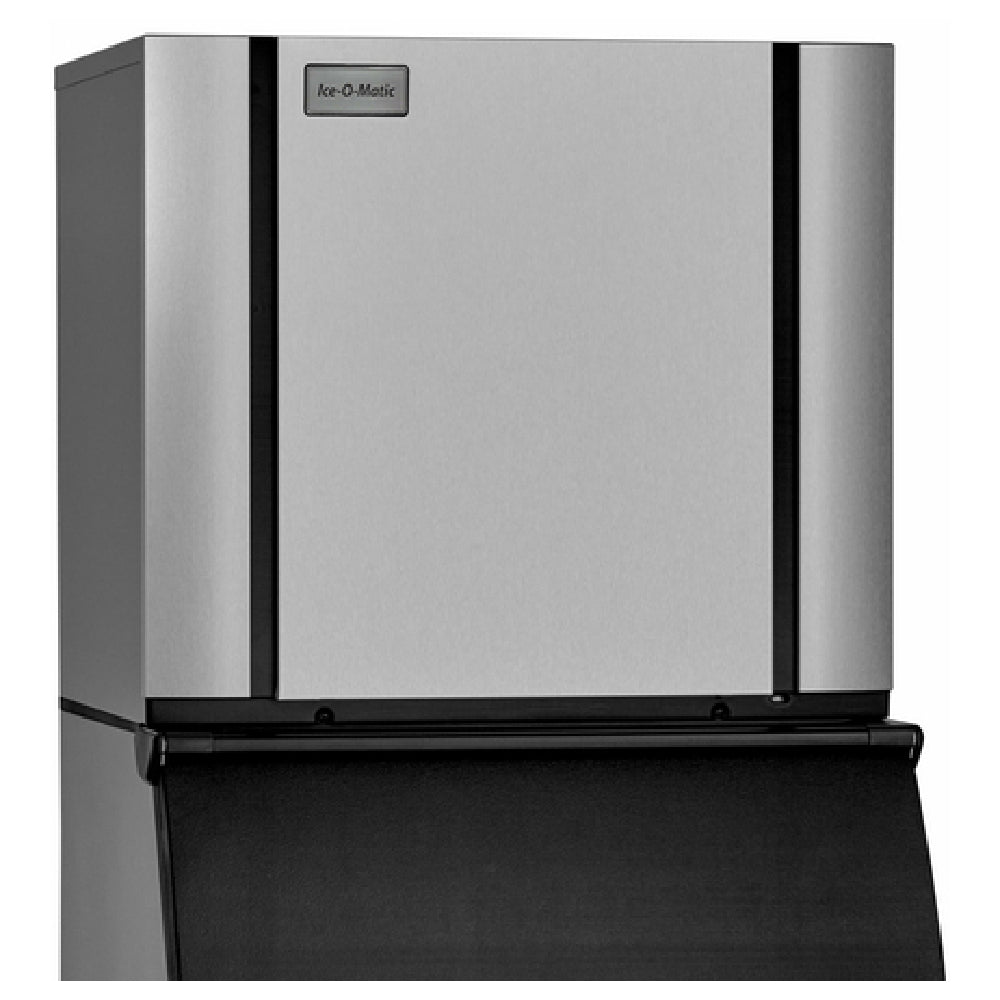

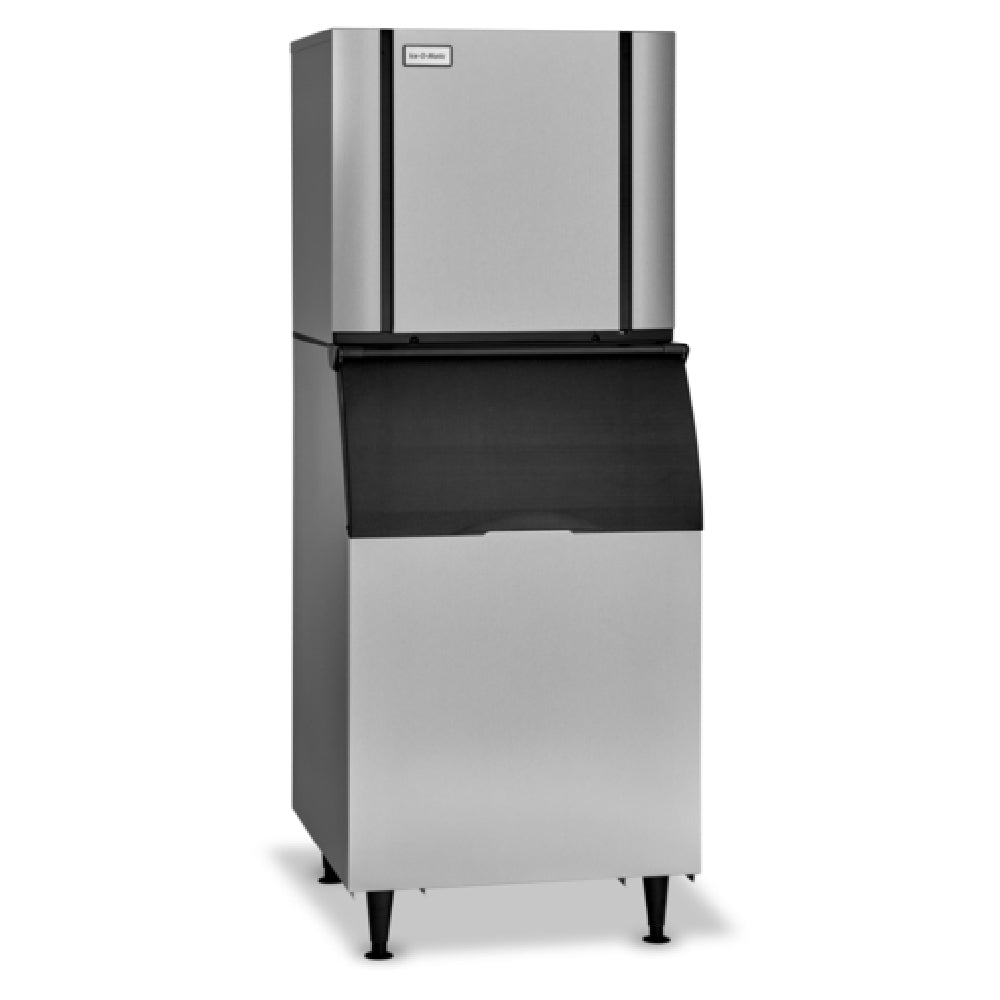

Ice-O-Matic Elevation CIM1136FA 30" Air-Cooled Full Cube 932 lb Ice Machine Head - 208-230V
Item
#400325
Universal Item
#
MFG
#CIM1136FA
Specification
Specifications
| Ship Weight | 230.00 LB |
| Manufacturer | Ice-O-Matic |
| Model Number | CIM1136FA |
| Manufacturer Part # | CIM1136FA |
| Country of Origin | United States |
| Oversized Shipping | No |
| Hazardous Material | No |
| Base Material | Stainless Steel |
| Color | Silver |
| Volts | 208-230V |
| Hertz | 60 |
| Phase | 1-Phase |
| UL Listed | Yes |
| NSF Approved | Yes |
| ENERGY STAR | No |
| Condenser Type | Air-Cooled |
| Ice Type | Cube |
| Cube Size | Full |
| 24 Hour Production | 932 Pounds |
| Dimensions(HxWxD) | 26.9” x 30.25” x 24.25" |
| Ice Water Usage / 100 LB Ice | 19.0 Gallons |
| kWH used / 100 LB Ice | 5.1 kWH |
Description
View all Description
The CIM1136FA is an air-cooled ice machine from Ice-O-Matic. This ice maker produces full size cube ice, and is capable of making up to 932 pounds of ice per day.
The one-touch sanitation and descaling controls on this ice machine make routine cleanings as simple as a push of a button, as the Universal Smart Harness control board allows for an easy interface. This machine is energy efficient. Minimum water pressure is 20 PSIG.
The CIM1136FA operates on a 208-230v, 60 hertz, 1 phase electrical connection.
Ice-O-Matic CIM1136FA Features
- Stainless Steel Exterior construction
- Durable, Nickel Plating on Evaporator
- Corrosion Resistant
- Built in Agion antimicrobial protection
- Dishwasher safe, Plastic Food Zone Parts snap in and out for easy cleaning
- Produces up to 932 LB / 24 hours
- Produces Full Cube ice
- Self-contained, Air-cooled Condenser
- Refrigerant: R404a
- Dual Exhaust from side or top for more installation options
- Universal Smart Harness control board for easy install, diagnostics, and servicing
- 208-230 Volt, 60 Hz, 1-phase electrical
- 20 PSIG minimum water pressure for operation
Ice-O-Matic CIM1136FA Benefits
- Energy Efficient - Exceeds 2018 Department of Energy regulations
- Easy to Clean, BPA-Free plastic components are recyclable
- Simple One-Touch controls for cleaning and descaling promotes Sanitary Conditions
Overall Dimensions:
Height: 26.9”
Width: 30.25”
Depth: 24.25”
Because this item is not stocked in our warehouse, processing, transit times and stock availability will vary. If you need your items by a certain date, please contact us prior to placing your order. Expedited shipping availability may vary. We cannot guarantee that this item can be cancelled off of the order or returned once it is placed.
NSF Listed
This item meets the standards imposed by NSF International, which focuses on public safety, health, and the environment.
UL Listed
This item has been tested and meets safety standards imposed by the Underwriters Laboratories (UL).
CE Listed
This item complies with the standards by the Conformance European (CE), a division of the Intertek group.
BPA Free
This item is free of the chemical Bisphenol A (BPA) and is safe for food contact.
Proposition 65
Proposition 65 requires the state to maintain and update a list of chemicals known to the state to cause cancer or reproductive toxicity.
Free Shipping
Free Shipping
Add this item to the cart to calculate your shipping rate
Shipping
Typically Ships in 2-3 Days!
Shipping
Lead time varies; contact our team with your ZIP code for more info.
