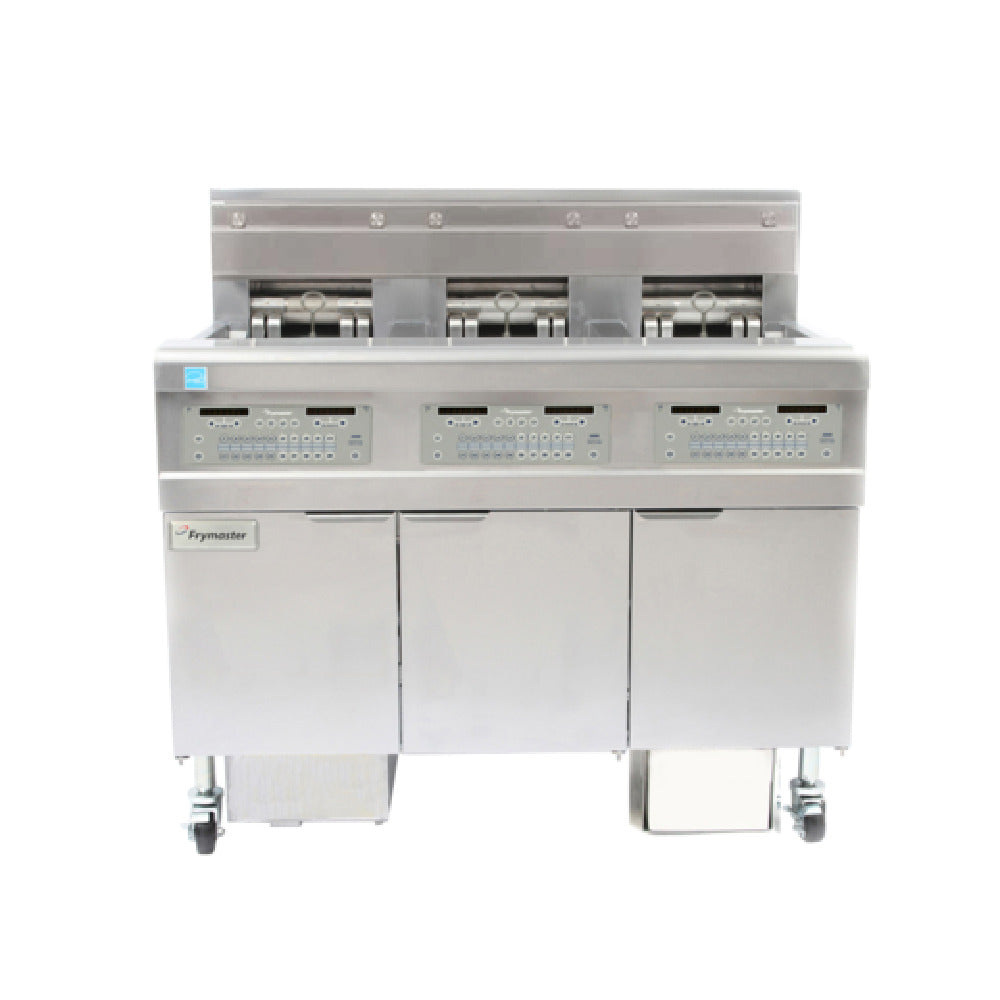

Frymaster FPEL314CA Electric OCF30ATOE 90 lb Oil Capacity ENERGY STAR Triple 30 lb Ultimate Oil-Conserving Open-Pot Floor Fryer With Auto Top Off And Built-In Filtration System, 42 kW 208 Volts 3-phase

Item
#189680
MFG
#FPEL314CA-208-3
Specification Specifications
Ship Weight 667 lb
Manufacturer Frymaster
Model Number FPEL314CA
Manufacturer Part # FPEL314CA
Type Electric Deep Fryers
Height 45 3/8 Inches
Width 46 7/8 Inches
Depth 30 7/8 Inches
Base Material Stainless Steel
Color Silver
Features Auto Top-Off, Built-In Filtration System
Controls SMART4U 3000 Controller
Burner Style Open-Design
Total Oil Capacity 90 lb
Oil Capacity Per Frypot 30 lb
Fry Area Length 13 Inches
Fry Area Width 14 Inches
Fry Area Depth 3 3/4 Inches
Number Of Fry Pots 3
Fry Pot Type Full
ENERGY STAR Certified Yes
NSF Listed Yes
UL Listed Yes
Enerlogic Program Yes
Hazardous Material No
Oversized Shipping No
Power Electric
Voltage 208
Phase 3
Amps Per Frypot 39.0
Watts Per Frypot 14 kW
Power Cord Included Yes
Plug Included No
Hardwiring Required Yes
Brand Line OCF30E Ultimate Oil-Conserving Electric Fryers
View all Specifications
Description

The Frymaster OCF30ATOE design features the SMART4U 3000 Controller that can monitor and help control food and oil quality, oil life, and equipment performance with 20 programmable cook buttons and it can automatically adjust cook time to fit the load size.

This fryer is ENERGY STAR certified, CE marked, UL listed for the United States and Canada, as well as NSF listed for safety. This fryer is part of the manufacturer's Enerlogic program.

The frypot, door, and cabinet sides on this electric fryer are all stainless steel. The unit moves smoothly on adjustable casters that are included with the fryer.

The OCF30ATOE 30 lb models can match the output of most 50 lb fryers and they require 40% less oil to cook compared to larger frypots while using 10% less energy which can save thousands of dollars per year on costs. The FPEL314CA is the ENERGY STAR certified OCF30ATOE ultimate oil-conserving open-pot electric floor fryer from Frymaster with (3) 30 lb oil capacity (90 lb total) frypots with Auto Top-Off replenish functionality and it features a built-in filtration system that dramatically extends oil life.

This electric fryer has a 13" x 14" x 3 3/4" frying area per frypot and it uses durable, self-standing, swing-up, flat-bar heating elements, and a center-mounted robust RTD 1-degree compensating temperature probe.

The FPEL314CA fryer is an electric unit and each frypot runs at 208 Volts, 3-phase, and 39.0 Amps for 14 kW of power, and hardwiring is required.

Frymaster FPEL314CA Features

  • OCF30ATOE ultimate oil-conserving electric floor model fryer
  • Built-in filtration system
  • Auto Top-Off replenish functionality
  • Total Oil Capacity: 90 lb
  • (3) 30 lb oil capacity frypots
  • Center-mounted RTD 1-degree compensating temperature probe
  • Stainless steel frypot, door, and cabinet sides
  • Frying area: 13" x 14" x 3 3/4" per frypot
  • SMART4U 3000 Controller
  • 20 programmable cook buttons
  • Flat-bar heating elements
  • Electrical specifications: 208 Volts, 3-phase, and 39.0 Amps for 14 kW per frypot
  • Hardwiring required
  • Adjustable casters included
  • UL listed for the United States and Canada
  • NSF listed for safety
  • CE marked

Frymaster FPEL314CA Benefits

  • Requires 40% less oil to cook compared to larger frypots while using 10% less energy
  • Built-in filtration system dramatically extends oil life, saving thousands of dollars per year
  • Matches the output of most 50 lb fryers
  • SMART4U technology monitors and helps control food and oil quality, oil life, and equipment performance
  • ENERGY STAR certified
  • Durable stainless steel construction
  • Moves smoothly on adjustable casters

Overall Dimensions:
Height: 45 3/8"
Width: 46 7/8"
Depth: 30 7/8"

Frying Area Per Frypot:
Fry Area Length: 13"
Fry Area Width: 14"
Fry Area Depth: 3 3/4"

View all Description
Because this item is not stocked in our warehouse, processing, transit times and stock availability will vary. If you need your items by a certain date, please contact us prior to placing your order. Expedited shipping availability may vary. We cannot guarantee that this item can be cancelled off of the order or returned once it is placed.
NSF Listed
NSF Listed
This item meets the standards imposed by NSF International, which focuses on public safety, health, and the environment.
UL Listed
UL Listed
This item has been tested and meets safety standards imposed by the Underwriters Laboratories (UL).
Energy Star Qualified
Energy Star Qualified
This item is Energy Star Qualified by the US Environmental Protection Agency and the US Department of Energy.
CE Listed
CE Listed
This item complies with the standards by the Conformance European (CE), a division of the Intertek group.
Hardwired
Hardwired
This product must be hardwired; it does not plug into a standard wall outlet.
Not For Residential Use
Not For Residential Use
Installed in a non-commercial setting will void your homeowner's insurance and the equipment manufacturer's warranty.
Free Shipping
Add this item to the cart to calculate your shipping rate
$44,301.00
Each
Contact Us for Details
Shipping
Typically Ships Within 4-6 Weeks
  • OCF30ATOE ultimate oil-conserving electric floor model fryer
  • Auto Top-Off replenish functionality
  • Total Oil Capacity: 90 lb
  • (3) 30 lb oil capacity frypots
  • Center-mounted RTD 1-degree compensating temperature probe
  • Requires 40% less oil to cook compared to larger frypots
  • Built-in filtration system dramatically extends oil life
  • Each 30 lb frypot matches the output of most 50 lb fryers
  • SMART4U technology
  • ENERGY STAR certified
  • Durable stainless steel construction
  • Moves smoothly on adjustable casters
  • Warranty Info
  • 1 Year Parts And Labor Warranty
  • Lifetime Frypot Defect Warranty
