Delfield DIS-813 Shelleymatic Drop-In Unheated Single 7.25" to 8.12" Maximum Diameter Self-Elevating Stainless Steel Dish Dispenser With 72-Dish Capacity
| Ship Weight | 11 lb |
| Manufacturer | Delfield |
| Model Number | DIS-813 |
| Manufacturer Part # | DIS-813 |
| Hazardous Material | No |
| Oversized Shipping | No |
| Type | Dish Dispensers |
| Height | 27.38 Inches |
| Flange Diameter | 11.5 Inches |
| Material | Stainless Steel |
| Color | Silver |
| Installation Type | Drop-In |
| Base Type | Open |
| Heated | No |
| Cutout Diameter | 10.87 Inches |
| Dish Diameter Range | 7.25" to 8.12" Maximum |
| Self-Leveling | Yes |
| Maximum Stacking Height | 24 Inches |
| Number of Tubes | 1 |
| Approximate Dish Capacity | 72 |
| Guide Post Material | High-Impact Plastic |
| UL Listed | Yes |
| NSF Listed | Yes |
| Brand Line | Shelleymatic |

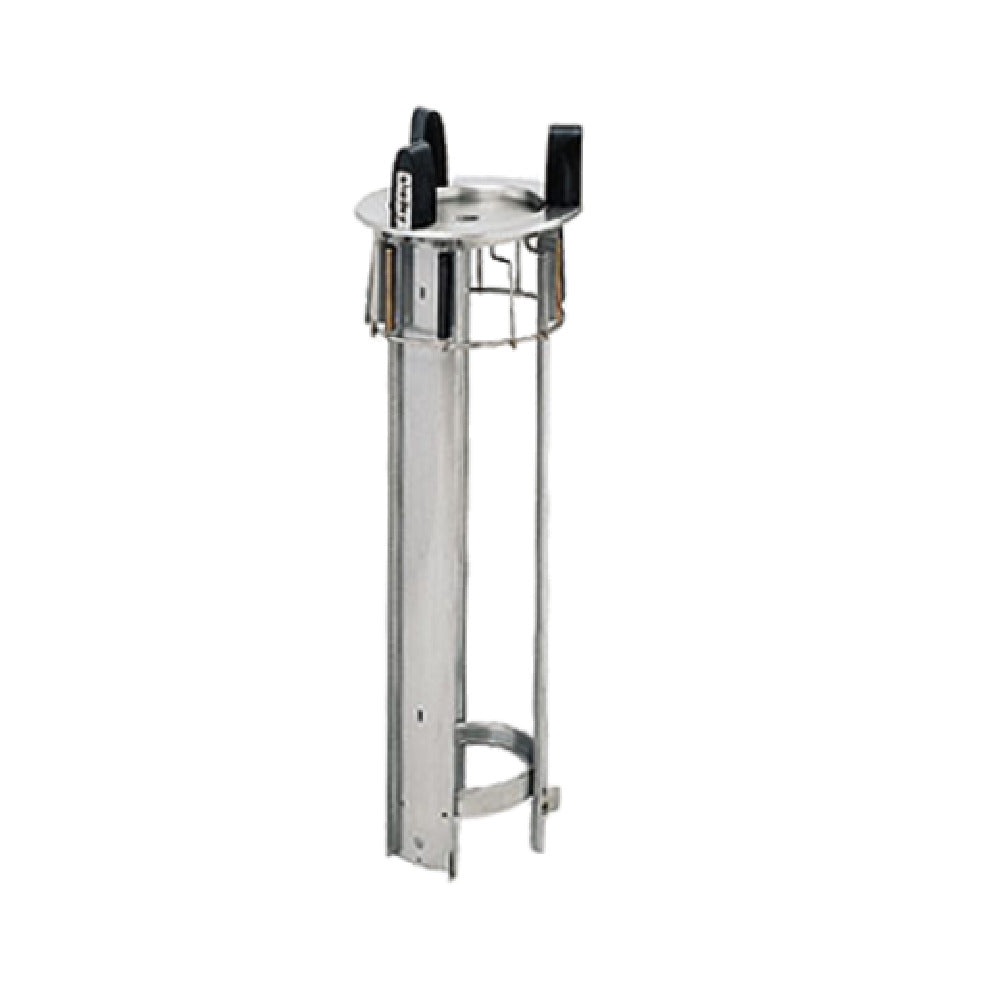

The DIS-813 is the Shelleymatic drop-in single self-elevating dish dispenser from Delfield that is designed for 7.25" to 8.12" diameter dishes with an approximate 72-dish capacity.
The dispenser tube on this unit has 3 vertical side channels, a bottom brace, and top supporting flange all made from stainless steel and they are all welded together. The dispenser has 3 guide posts that are molded from durable high-impact plastic.
The tube of this dish dispenser is designed to drop-in and suspend in a 27.38" high space and it provides a maximum 24" stacking height. The self-leveling mechanism on this Shelleymatic dish dispenser can be adjusted with stainless steel extension springs.
There is a carrier head on this dish dispenser that has welded rods with a removable top plate. This dish dispenser unit is UL listed in the United States and Canada, and it is NSF listed for safety.
Delfield DIS-813 Features
- Shelleymatic unheated dish dispenser
- Dish Size: 7.25" to 8.12" maximum diameter
- Installation Type: Drop-In
- Single tube
- Approximate Dish Capacity: 72
- Frame And Tube Material: Stainless Steel
- Guide Post Material: High-Impact Plastic
- Maximum Stacking Height: 24"
- Carrier head with welded rods and removable top plate
- Self-leveling
- Stainless steel extension springs
- UL listed in the United States and Canada
- NSF listed for safety
Delfield DIS-813 Benefits
- Adjustable self-leveling mechanism with extension springs
- Durable all welded and corrosion-resistant stainless steel construction
Overall Dimensions:
Height: 27.38"
Flange Diameter: 11.50"
Cutout And Dish Dimensions:
Cutout Diameter: 10.87"
Dish Diameter Range: 7.25" to 8.12"
