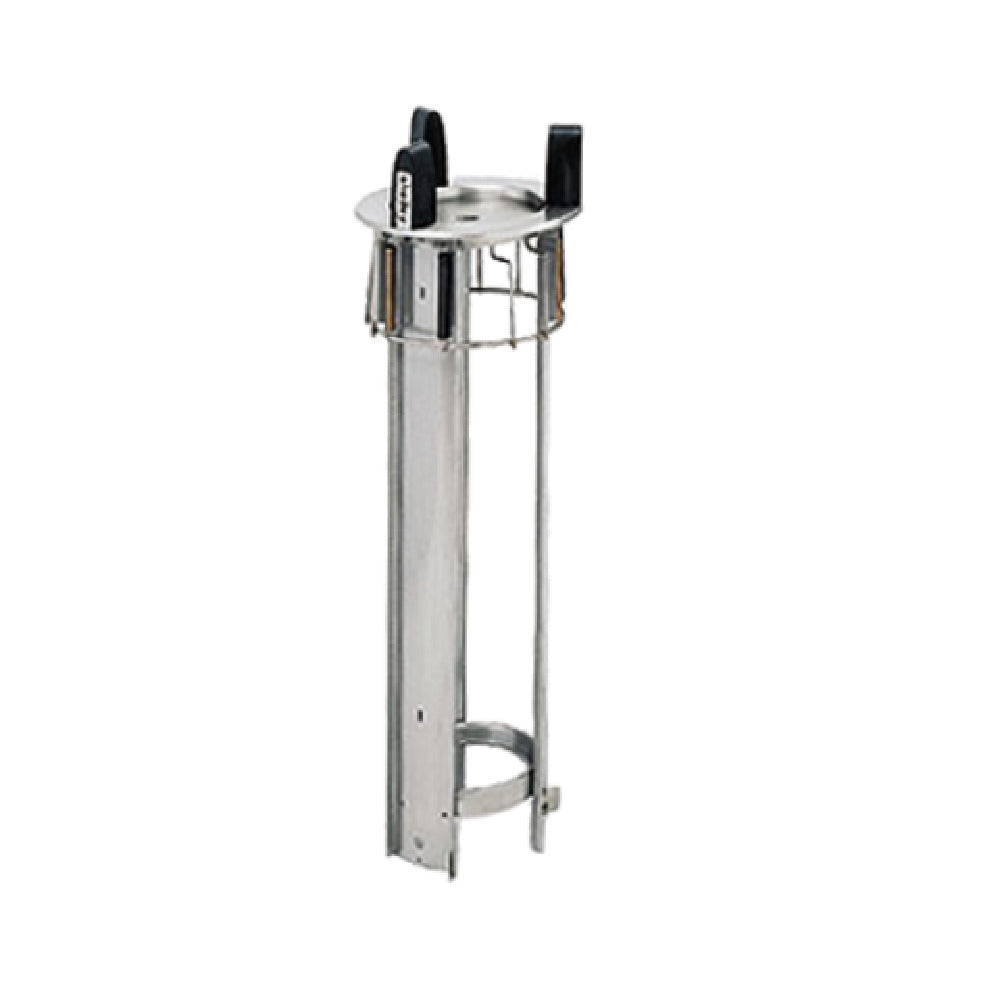

Delfield DIS-813-QT Shelleymatic Drop-In Quick Temp Heated Single 7 1/4" to 8.12" Maximum Diameter Self-Elevating Stainless Steel Dish Dispenser With 72-Dish Capacity, 120V
| Ship Weight | 30 lb |
| Manufacturer | Delfield |
| Model Number | DIS-813-QT |
| Manufacturer Part # | DIS-813-QT |
| Hazardous Material | No |
| Oversized Shipping | No |
| Type | Dish Dispensers |
| Height | 28 Inches |
| Flange Diameter | 11.5 Inches |
| Material | Stainless Steel |
| Color | Silver |
| Installation Type | Drop-In |
| Base Type | Open |
| Heated | Yes |
| Temperature Range | 150 to 170 Degrees F |
| Cutout Diameter | 10.87 Inches |
| Dish Diameter Range | 7 1/4" to 8.12" Maximum |
| Self-Leveling | Yes |
| Maximum Stacking Height | 24 Inches |
| Approximate Dish Capacity | 72 |
| Number of Tubes | 1 |
| Guide Post Material | High-Impact Plastic |
| UL Listed | Yes |
| NSF Listed | Yes |
| Brand Line | Shelleymatic Quick Temp |
| Power | Electric |
| Voltage | 120 |
| Hertz | 60 |
| Phase | 1 |
| Amps | 5.5 |
| Watts | 700 |
| Power Cord | 4 ft |
| Plug | NEMA 5-15P |
There is a carrier head on this dish dispenser that has welded rods with a removable top plate. This dish dispenser unit is UL listed in the United States and Canada, and it is NSF listed for safety.
The DIS-813-QT is the Shelleymatic Quick Temp heated drop-in single self-elevating dish dispenser from Delfield that is designed for 7 1/4" to 8.12" diameter dishes with an approximate 72-dish capacity and maintains heated temperatures between 150 to 170 degrees F.
The dispenser tube on this unit has 3 vertical side channels, a bottom brace, and top supporting flange all made from stainless steel and they are all welded together. The dispenser has 3 guide posts that are molded from durable high-impact plastic.
The heated dish dispenser is an electric unit that runs at 120 Volts, 60 Hertz, 1-phase, and 5.5 Amps for the 700 Watt heating element and it comes included with a 4 ft power cord with a standard NEMA 5-15P plug.
The Quick Temp heated dispenser features a convection heating module with a heating element, fan motor, and an adjustable thermostat inside the motor housing.
The tube of this dish dispenser is designed to drop-in and suspend in a 27.38" high space and it provides a maximum 24" stacking height. The self-leveling mechanism on this Shelleymatic dish dispenser can be adjusted with stainless steel extension springs.
Delfield DIS-813-QT Features
- Shelleymatic Quick Temp heated dish dispenser
- Dish Size: 7 1/4" to 8.12" maximum diameter
- Installation Type: Drop-In
- Temperature Range: 150 to 170 degrees F
- Self-leveling
- Convection heating module
- Adjustable thermostat inside the motor housing
- Single tube
- Frame And Tube Material: Stainless Steel
- Guide Post Material: High-Impact Plastic
- Maximum Stacking Height: 24"
- Carrier head with welded rods and removable top plate
- 4 ft power cord
- Electrical specifications: 120 Volts, 60 Hertz, 1-phase, 5.5 Amps, NEMA 5-15P plug
- Stainless steel extension springs
- UL listed in the United States and Canada
- NSF listed for safety
Delfield DIS-813-QT Benefits
- Keeps plates ready and warm between 150 to 170 degrees F
- Adjustable self-leveling mechanism with extension springs
- Durable all welded and corrosion-resistant stainless steel construction
Overall Dimensions:
Height: 28"
Flange Diameter: 11.5"
Cutout And Dish Dimensions:
Cutout Diameter: 10.87"
Dish Diameter Range: 7 1/4" to 8.12"
