Alto-Shaam CTX4-10EVH 24 1/8" Combitherm CT Express Electric Boiler-Free Combi Oven With Ventless Hood And Express Controls With 5 Full Size Pan Capacity, 208V/1P
Item
#419745
MFG
#CTX4-10EVH_208/1P
Specification
Specifications
| Ship Weight | 415 lb |
| Manufacturer | Alto-Shaam |
| Model Number | CTX4-10EVH |
| Manufacturer Part # | CTX4-10EVH |
| Type | Electric Combination Ovens |
| Overall Dimensions(HxWxD) | 45-1/2" x 24-1/8" x 39-3/8" |
| Material | Stainless Steel |
| Color | Silver |
| Made In USA | Yes |
| UL Listed | Yes |
| UL Classified EPH | Yes |
| CE LIsted | Yes |
| Control Type | ExpressTouch |
| Capacity | 5 Full Size GN Pans, 10 Half Size Pans |
| Door Type | Glass |
| Features | Self Cleaning |
| Number Of Decks | Single |
| Ventless Hood | Yes |
| Size | 1/2 Size |
| Number of Doors | 1 |
| Water Inlet Size | 3/4" NPT |
| Water Drain Size | 1 1/2" NPT |
| Temperature Range | 85 - 485 Degrees F |
| Power Type | Electric |
| Voltage | 208 Volts |
| Hertz | 60 |
| Phase | 1 |
| Amps | 23.4 |
| Watts | 4.87 kW |
| Plug | NEMA L6-30P |
| Legs | 4 Inch Adjustable |
| Oversized Shipping | No |
| Hazardous Materials | No |
Description
View all Description

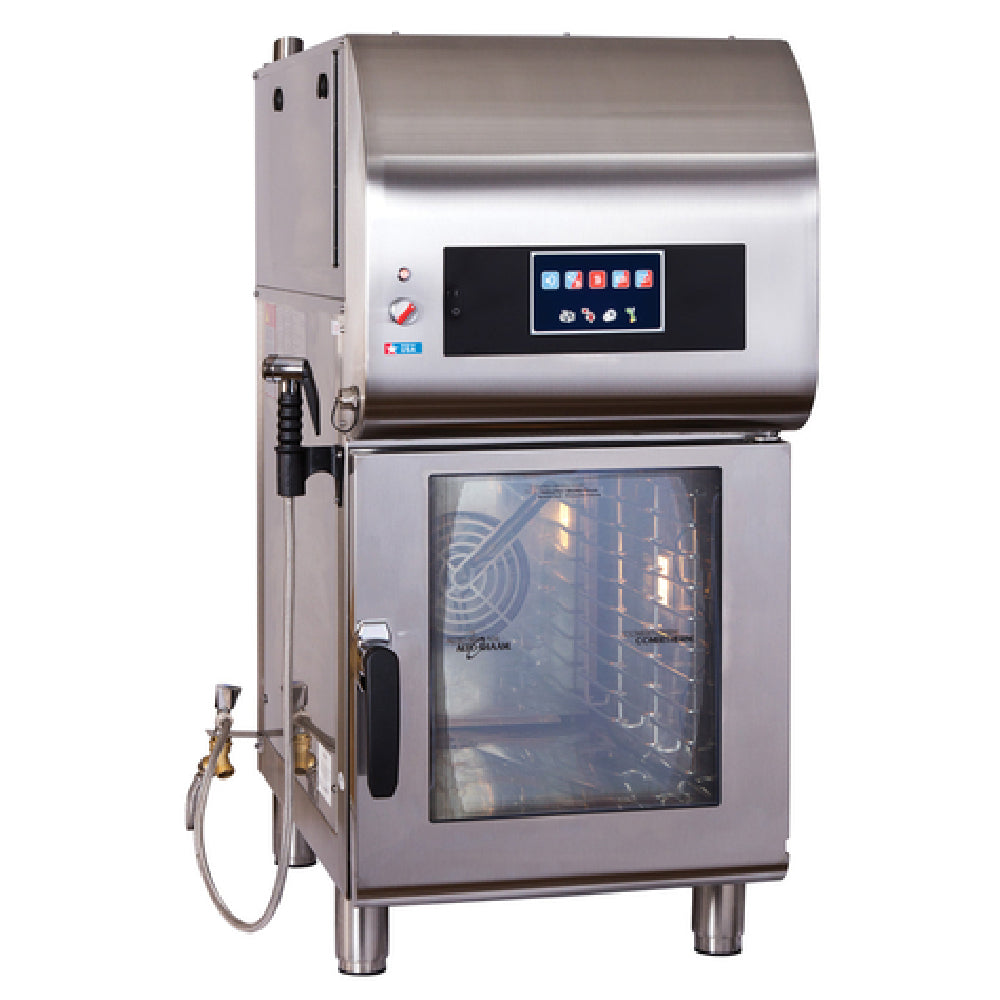

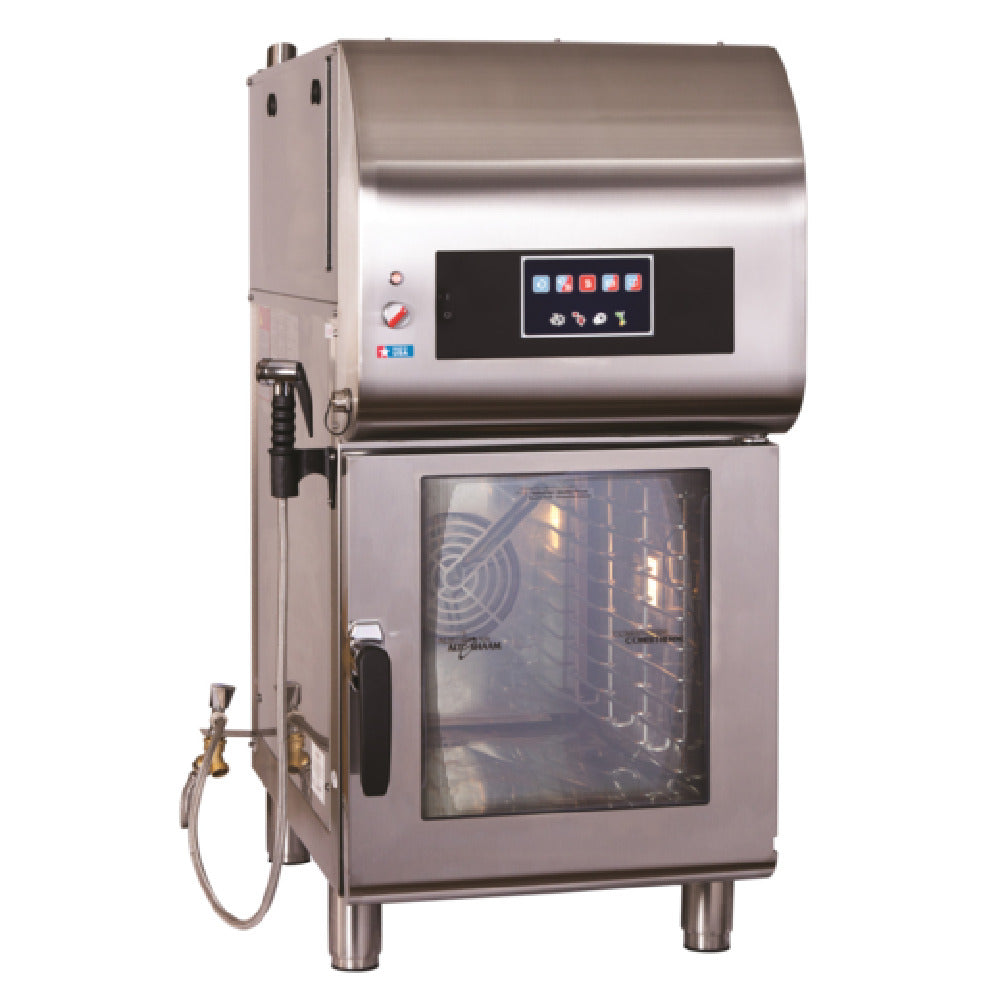

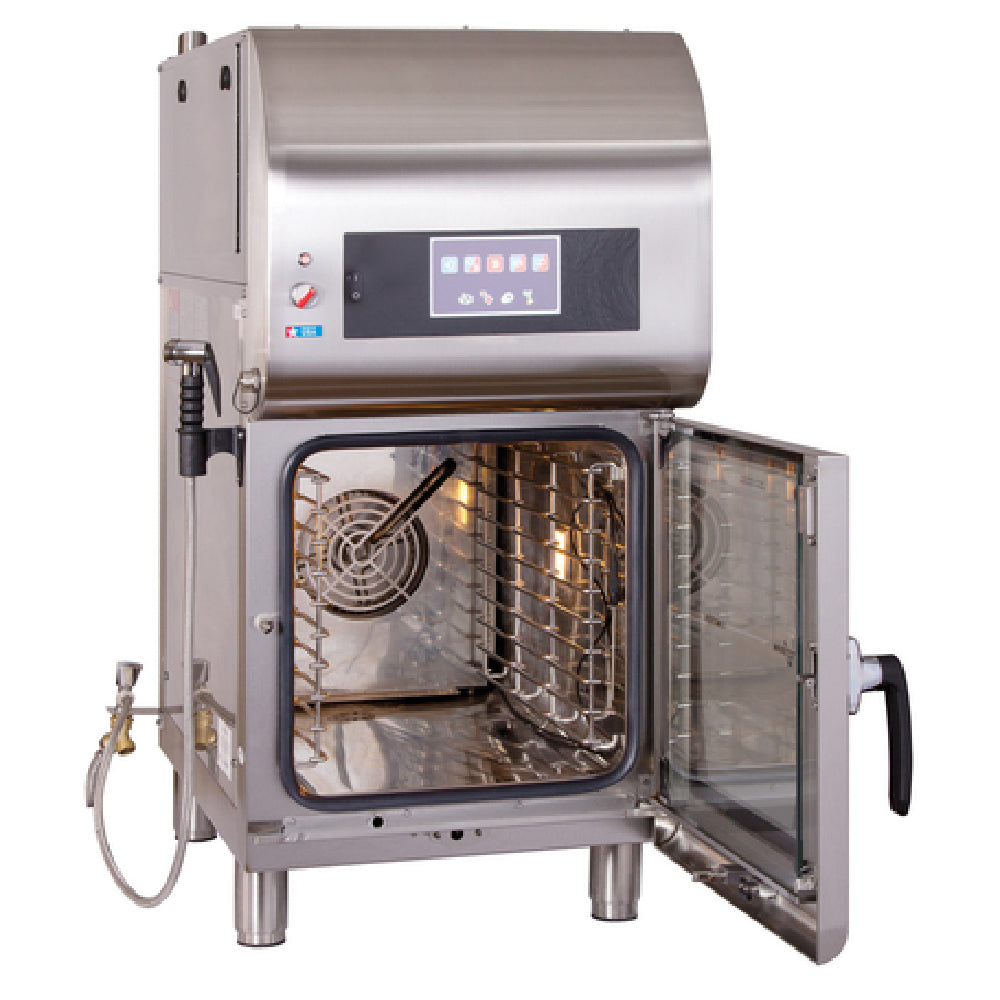

The CTX4-10EVH is a 24 1/8" wide, Combitherm CT Express electric boiler-free combi oven from Alto-Shaam with a ventless hood that has the capacity for (5) 12" x 20" full size hotel or (10) 18" x 13" half size sheet pans.
The boiler-free combi oven features ExpressTouch controls and a two-speed reversing fan, retherm mode, moisture injection, and 6 browning levels. There is a CombiClean system and hand sprayer kit included with this combi oven and it stands firmly on 4" adjustable bullet legs. There are (2) 3/4" NPT water inlet connections, and a 1 1/2" NPT water drain connection on this boiler-free combi oven.
The CTX4-10EVH boiler-free combi oven is an electric unit available as 208V/60Hz/1-phase and 23.4 Amps for 4.87 kW, or 240V/60Hz/1-phase and 26.3 Amps for 6.31 kW, or 208-240V/50Hz/1-phase and 23.4 - 26.3 Amps for 4.87 - 6.31 kW, or 208-240V/60Hz/3-phase and 15.9 - 18.8 Amps for 5.59 - 7.67 kW, or 220-240V/50/60Hz/1-phase and 24.9 - 26.3 Amps for 5.47 - 6.60 kW and only the 208 Volt unit comes with a NEMA L6-30P plug. The other units need to be hardwired.
This boiler-free combi oven is made in the USA, UL listed in the United States and Canada, CE listed, and UL Classified EPH.
Alto-Shaam CTX4-10EVH Features
- Combitherm CT Express electric boiler-free combi oven
- Ventless hood
- Capacity: (5) 12" x 20" full size hotel or (10) 18" x 13" half size sheet pans
- ExpressTouch controls
- Two-speed reversing fan
- Retherm mode
- Moisture injection
- 6 browning levels
- CombiClean system and hand sprayer kit included
- Electrical specifications: 208V/60Hz/1-phase and 23.4 Amps for 4.87 kW
- Plug: NEMA L6-30P
- (2) 3/4" NPT water inlet connections
- 1 1/2" NPT water drain connection
- 4" adjustable bullet legs
Alto-Shaam CTX4-10EVH Benefits
- UL listed in the United States and Canada
- UL Classified EPH
- CE listed
- Made in the USA
Overall Dimensions:
Height: 45-1/2"
Width: 24-1/8"
Depth: 39-3/8"
Because this item is not stocked in our warehouse, processing, transit times and stock availability will vary. If you need your items by a certain date, please contact us prior to placing your order. Expedited shipping availability may vary. We cannot guarantee that this item can be cancelled off of the order or returned once it is placed.
NSF Listed
This item meets the standards imposed by NSF International, which focuses on public safety, health, and the environment.
Made In America
This item was made in the United States of America.
UL Listed
This item has been tested and meets safety standards imposed by the Underwriters Laboratories (UL).
CE Listed
This item complies with the standards by the Conformance European (CE), a division of the Intertek group.
6-30P
This unit comes with a NEMA 6-30P plug.
3/4" Water Connection
This item comes with a 3/4" water connection.
