Alto-Shaam 300-HW/D643 40 15/16" 3 Full Size And 3 Third Size 6" Deep Pan Drop-In Hot Food Holding Well, 230V
| Ship Weight | 160 lb |
| Manufacturer | Alto-Shaam |
| Model Number | 300-HW/D643 |
| Manufacturer Part # | 300-HW/D643 |
| Type | Hot Food Wells |
| Overall Dimensions(HxWxD) | 9-3/16" x 40-15/16" x 30-3/16" |
| Cutout Width | 40 1/4 Inches |
| Cutout Depth | 29 1/2 Inches |
| Control Box Cutout Dimensions(HxWxD) | 4-1/4" x 5-1/4" x 11-3/8" |
| Base Material | Stainless Steel |
| Color | Silver |
| Made In USA | Yes |
| UL Listed | Yes |
| UL Classified EPH | Yes |
| EAC Listed | Yes |
| CE Listed | Yes |
| Control Type | Single Thermostatic Controller |
| Installation Type | Drop In |
| Size | 4/3 Size |
| Capacity | (3) 12" x 20" Full-Size, 6" Deep And (3) 12" x 6" Third-Size, 6" Deep Pans |
| Power Type | Electric |
| Voltage | 230 Volts |
| Hertz | 50/60 |
| Phase | 1 |
| Amps | 10.6 |
| Watts | 2.4 kW |
| Power Cord Length | 9 ft |
| Plug | CEE 7/7 |
| Hazardous Materials | No |
| Oversized Shipping | No |

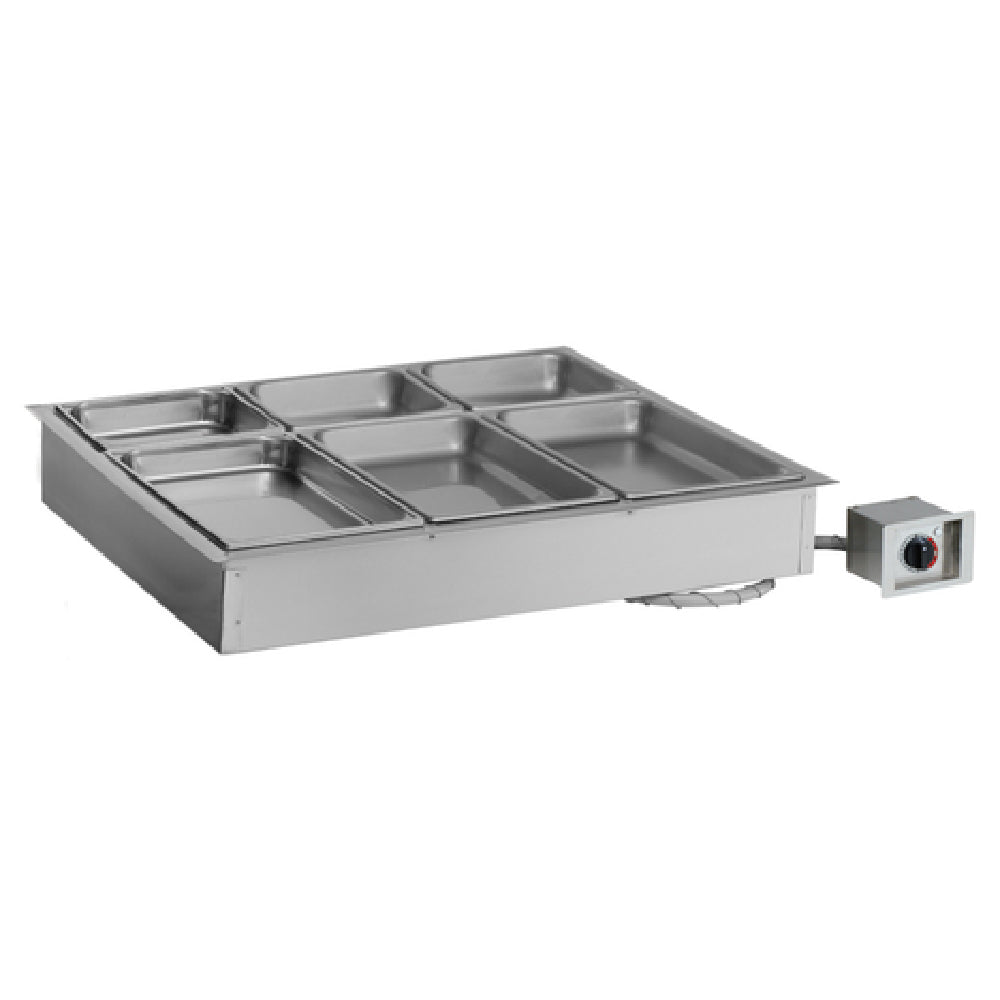

The 300-HW/D643 is a 40 15/16" wide drop-in hot food holding well from Alto-Shaam for (3) 12" x 20" full-size, 6" deep and (3) 12" x 6" third-size, 6" deep pans (pans not included). This drop in hot food holding well has has a single adjustable thermostatic controller and it has a stainless steel exterior and interior.
The Halo Heat system provides a controlled, uniform heat source that delivers gentle heat that extends the holding life of food products without continuing the cooking process.
The 300-HW/D643 heated drop in hot food holding well is an electric unit that is available as 120 Volts, 50/60 Hertz, 1-phase and 20.3 Amps for 2.4 kW with a 6 ft power cord and a NEMA L5-30P plug, or 208-240 Volts, 50/60 Hertz, 1-phase and 8.8 - 10.1 Amps for 1.8 - 2.4 kW with a 9 ft power cord and a NEMA 6-15P plug, or 230 Volts, 50/60 Hertz, 1-phase and 10.6 Amps for 2.4 kW with a 9 ft power cord and a 250V rated plug.
This drop in hot food holding well is made in the USA, UL listed for the United States and Canada, UL EPH Classified, EAC listed, and CE listed.
Alto-Shaam 300-HW/D643 Features
- Drop-in hot food holding well
- Capacity: (3) 12" x 20" full-size, 6" deep and (3) 12" x 6" third-size, 6" deep pans (pans not included)
- Adjustable single thermostatic controller
- Stainless steel exterior and interior
- Electrical specifications: 230 Volts, 50/60 Hertz, 1-phase and 10.6 Amps for 2.4 kW
- 9 ft power cord
- Plug: CEE 7/7
Alto-Shaam 300-HW/D643 Benefits
- Durable stainless steel construction
- Halo Heat system provides a controlled, uniform heat source
- UL listed for the United States and Canada
- UL EPH Classified
- CE listed
- EAC listed
- Made in the USA
Overall Dimensions:
Height: 9-3/16"
Width: 40-15/16"
Depth: 30-3/16"
Counter Cutout Dimensions:
Width: 40-1/4"
Depth: 29-1/2"
Control Box Cutout Dimensions:
Height: 4-1/4"
Width: 5-1/4"
Depth: 11-3/8"
